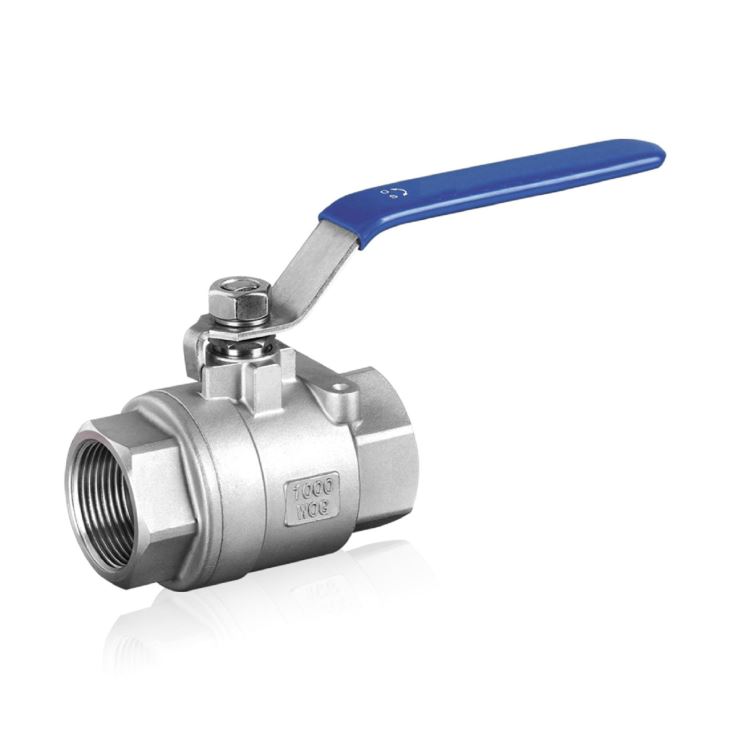

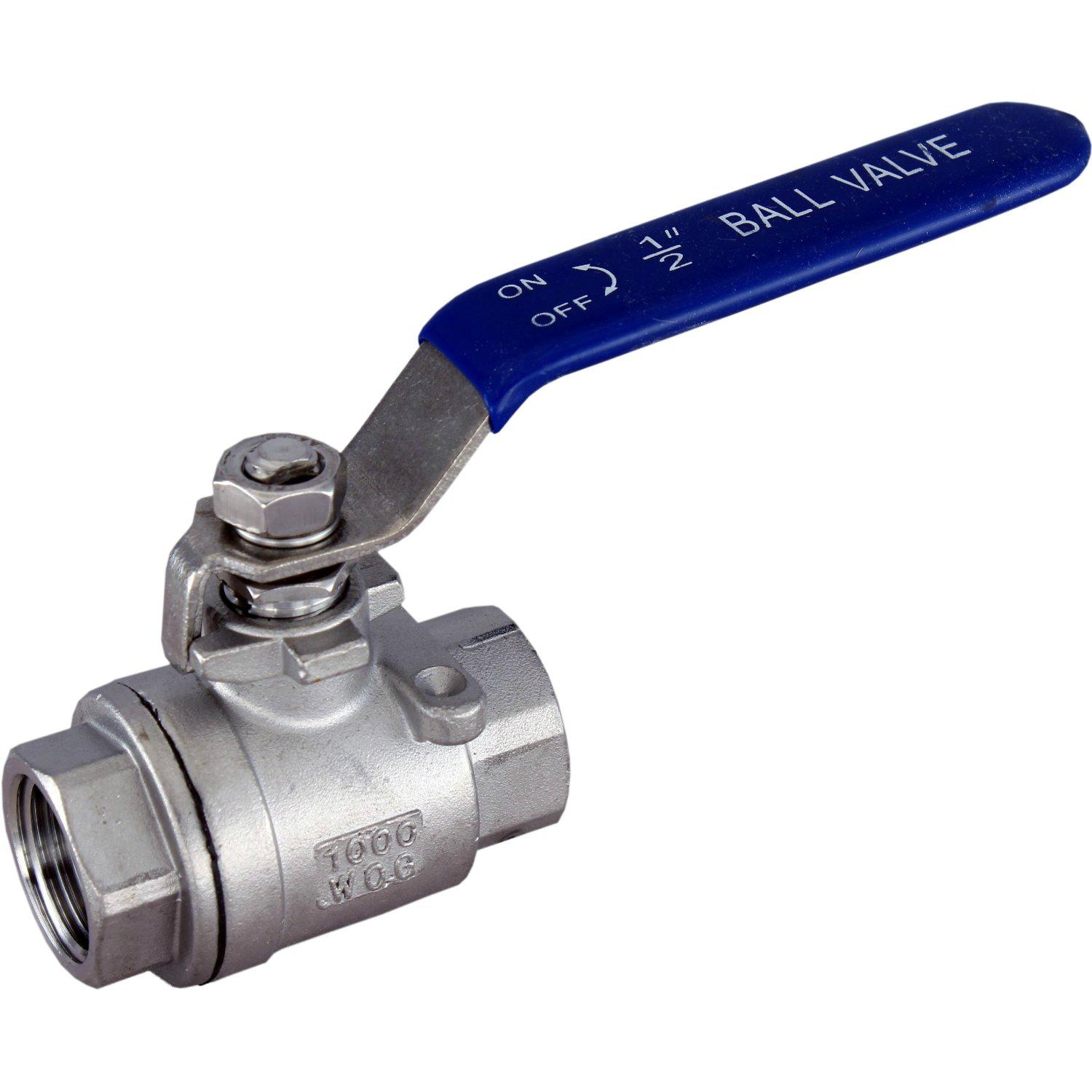

2 PC Ball Valve Male Threaded End

2 PC Ball Valve Male Threaded End

Products D escription : 1 PC Wafer Flange Ball Valves are widely used in industrial applications because they are very versatile and easy to maintain and operate. 1 PC Reduced Bore Ball Valve Female thread is designed to reduce holes. The valve body is made of investment casting, and the valve...

Send Inquiry

Products Description :

2 PC Ball Valve Male Threaded End cannot be used for potable water applications including for Cooking and drinking. 2 PC Ball Valve Male Threaded End does not meet the new low-lead criteria defined in Safe Drinking Water Act. This Product is recommended for non-potable water applications only.

1/2' Threaded Brass Ball Valve with Waste Outlet (cap included), Full Port. Connections: 1/2'' NPT threaded on both ends.


2 PC Ball Valve Male Threaded End Technical Specifications:

1/4-Turn Steel Handle;

600 WOG / 150 SWP;

Blow Out Proof Stem

Side Waste Outlet w/ Cap;

Teflon Seats;

Threaded Ends Meet w/ ANSI B2.1;



2 PC Ball Valve Male Threaded End Cross-Reference:

American Valve: T200W-1/2

Apollo/Conbraco: 95A-303

Matco-Norca: 754DT3

Watts: 1/2 IT6300

Webstone Valves: 40622






Main Parts and Materials


1

Body

A105/F316/F304

7

Thrust Washer

RTFE

2

Cap

A105/F316/F304

8

Packing Gland

SS316/SS304

3

Seat

RTFE

9

Nut

SS/SS316/SS304

4

Ball

ASTM A351-CF8M(316)

10

Handle

SS

5

Stem

A105/F316/F304

11

Handle Cover

Plastic

6

Packing

PTFE

12

Gasket

RTFE





PACKAGING & DELIVERY :

Packaging details :   electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details   :   4-5 weeks after receipt of down payment by T/T

Payment           T/T, L/C, Western Union and PayPal
