Products Details :

Shenyang EO Valve Co.,Ltd is a leading China handwheel-cast-steel-floating-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. API FULL PORT CAST STEEL FLOATING BALL VALVE FLOATING BALL VALVE...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China handwheel-cast-steel-floating-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

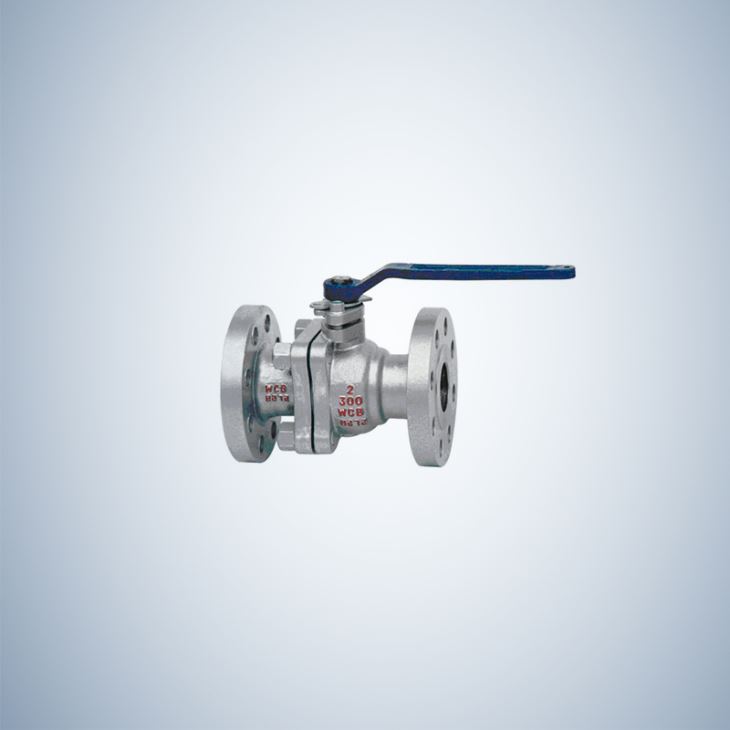

API FULL PORT CAST STEEL FLOATING BALL VALVE

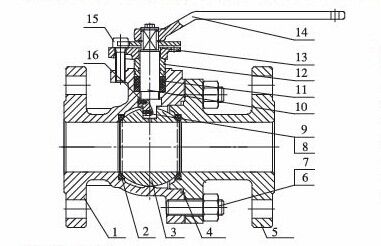

MATERIAL LIST

ITEM

PART NAME

MATERIAL

1

BODY

A216 WCB

2

STEM RING

SS+GRAPHITE/PTFE

3

PIN

A276 410

4

DISC

A216 WCB

5

SCREW

CARBON STEEL

6

SEAT GLAND

CARBON STEEL

7

STEM

A182 F6A

8

PACKING

GRAPHITE/PTFE

9

GLAND FLANGE

A216 WCB

10

YOKE

A216 WCB

11

GLAND NUT

A194 2H

12

EYEBOLT

A193 B7

13

COVER BOLT

A193 B7

14

GASKET

SS304/SS316+GRAPHITE

15

SPLINT COLLAR

CARBON STEEL

16

COVER

A216 WCB

17

YOKE BOLT

A193 B7

18

YOKE NUT

A194 2H

19

BOLT

CARBON STEEL

20

GEAR

ASSEMBLY



FEATURES :

1. Two Pieces Cast Steel Body Ball Valve

2. Floating Ball, Full & Reduced Bore

3. Anti-static Device

4. Blow-out Proof Stem

5. Fire Safe Design

6. Low Emission



Product Specifications :

FLOATING BALL VALVE QUICK DETAILS :

Material: casting

Port Size: NPS1/2"~10"

Power: Manual

Normal pressure: Class 150 to class 1500

Face to face dimension: ASME B 16.10 or API 6D

Design & Manufacture: API 6D or BS 5351

End flange dimension: ASME B16.5

Inspection and test: API 598 or API 6D

Pressure: Medium Pressure

Temperature of Media: Medium Temperature

Butt weld end dimension: ASME B16.25

Pressure-temp rating: ASME B16.34


PRODUCT DESCRIPTION Cast Floating Ball Valve :

Pressure: Class150-Class600

Size: NPS 1/2-8

Body material: WCB, LCB, CF8M, CF3M, CF8, CF3

Seat material: PTFE/NYLON/PEEK/PPL

Applicable temperature: ≤120ºC(PTFE),≤80ºC(NYLON),≤250ºC(PEEK),≤250ºC(PPL)

Design and manufacturing: API 608

Pressure test: API 598

Structural features: Special seat design, fireproof structure design, reliable sealing of valve stem, anti-static structure, lock and miss-operation prevention.



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal


FAQ :

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.
