20 Inch 900Lb Cast Steel Trunnion Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 20inch-900lb-cast-steel-trunnion-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 20 INCH 900LB CAST STEEL TRUNNION BALL VALVE STANDARDS:......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 20inch-900lb-cast-steel-trunnion-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 20 INCH 900LB CAST STEEL TRUNNION BALL VALVE STANDARDS:...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 20inch-900lb-cast-steel-trunnion-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

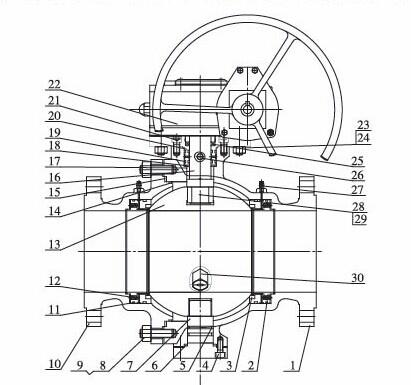

20 INCH 900LB CAST STEEL TRUNNION BALL VALVE
|
ITEM |
PART NAME |
MATERIAL |
|
1 |
BODY |
A216 WCB |
|
2 |
SEAT RING |
A105+ENP |
|
3 |
SEAT INSERT |
PTFE/RPTFE/NYLON |
|
4 |
SCREW |
A193 B7 |
|
5 |
O-RING |
VITON |
|
6 |
GASKET |
304SS/316SS+GRAPGITE |
|
7 |
TRUNNION |
A105+ENP |
|
8 |
BOLT |
A193 B7 |
|
9 |
NUT |
A194 2H |
|
10 |
BONNET |
A216 WCB |
|
11 |
O-RING |
VITON |
|
12 |
SPRINGS |
INCONEL X-750 |
|
13 |
BALL |
A105+ENP |
|
14 |
O-ING |
VITON |
|
15 |
GASKET |
304SS/316SS+GRAPHITE |
|
16 |
STEM |
A1045+RPTFE |
|
17 |
BEARING |
A1045+RPTFE |
|
18 |
THRUST WASHER |
PTFE |
|
19 |
O-RING |
VITON |
|
20 |
PACKING BOX |
A105+ENP |
|
21 |
SCREW |
CARBON STEEL |
|
22 |
GEAR OPERATOR |
ASSEMBLY |
|
23 |
BOLT |
CARBON STEEL |
|
24 |
CARBON STEEL |
CARBON STEEL |
|
25 |
PACKING |
GRAPHITE/PTFE |
|
26 |
GERASE FITTING(STEM) |
CARBON |
|
27 |
GREASE TING(SEAT |
CARBON |
|
28 |
ANTI STATIC BALL |
304SS |
|
29 |
ANTI STATIC SPRING |
304SS |
|
30 |
DRAIN VALVE AND PLUG |
CARBON STEEL |
Product Specifications :
STANDARDS:
|
1. DESIGN AND MANUFACTURE: |
BS 5351/API 608/API 6D/ASME B16.34 |
|
2. FACE TO FACE DIMENSIONS: |
ASME B16.10/API 6D |
|
3. FLANGE ENDS DIMENSIONS: NPS1/2”-24” |
ASME B16.5 |
|
4. NPS 26”& ABOVE: |
ASME B16.47 |
|
5. BW ENDS DIMENSIONS: |
ASME B16.25 |
|
6. PRESSURE-TEMPERATURE RATINGS: |
ASME B16.34 |
|
7. FIRE SAFE DESIGN: |
API 607/API 6FA |
|
8. NORMAL PRESSURE: |
CLASS 150~1500 |
|
9. NORMAL DIAMETER: |
NPS 2″~36″ |
Features
Full Bore & Reduced Bore
Anti-static Device
Blow-out Proof Stem
Fire Safe Design
Emergency Sealant Injector
Vent Valve, Drain Valve
Lifting lugs and supporting feet (8" & larger)
Optional Lockable Handle Lever; Gear Box, Electric, Pneumatic & Hydraulic
PRODUCTION PROCESS
Foundry → Casting → Machining → Assembling → Testing → Painting →Finished valve →Packing
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
