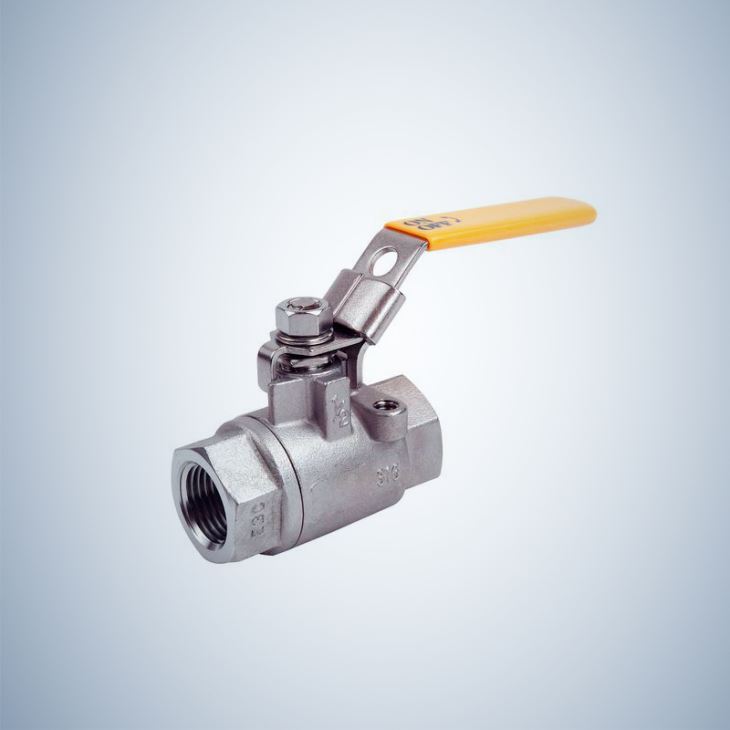

Stainless Steel Small Mini 2 Piece Threaded Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China stainless steel small mini 2 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. STAINLESS STEEL SMALL MINI TWO PIECE THREADED BALL......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China stainless steel small mini 2 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. STAINLESS STEEL SMALL MINI TWO PIECE THREADED BALL...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China stainless steel small mini 2 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
STAINLESS STEEL SMALL MINI TWO PIECE THREADED BALL VALVE
Product Specifications :
1.pneumatic ball valve
2.Seat:NBR,EPDM,PTFE,metal
3.double acting and spring return
4.rack and pinion
2pcs Thread End Ball Valve
Applicable Standards
Working Pressure: 1000WOG
Temperature Range: -20~-250°
Suitable medium: Water,Oil,air and some Corrosive liquid
Thread type:G.NPT.BSPT.BSP.DIN259/2999
2-PCS Thread Ball Valve Dimension table
DN(inch) | Φ D | L | H | H1 | A | W | T | ΦE1 | ΦE2 | P | ΦU1 | ΦU2 |
1/4" | 10.6 | 64 | 42 | 72 | 9 | 135 | 32 | 36 | 42 | 9 | 6 | 6 |
3/8" | 12.7 | 64 | 42 | 72 | 9 | 135 | 32 | 36 | 42 | 9 | 6 | 6 |
1/2" | 15 | 68 | 42 | 72 | 9 | 135 | 32 | 36 | 42 | 9 | 6 | 6 |
3/4" | 20 | 73 | 49 | 80 | 9 | 135 | 35 | 36 | 42 | 9 | 6 | 6 |
1" | 25 | 85 | 58 | 90 | 11 | 170 | 42.5 | 42 | 50 | 11 | 6 | 7 |
1-1/4" | 32 | 94 | 63 | 95 | 11 | 170 | 47.5 | 42 | 50 | 11 | 6 | 7 |
1-1/2" | 38 | 105 | 71 | 106 | 14 | 200 | 52.5 | 50 | 70 | 14 | 7 | 9 |
2" | 50 | 125 | 78 | 113 | 14 | 200 | 62.5 | 50 | 70 | 14 | 7 | 9 |
2-1/2" | 65 | 155 | 101.5 | 150 | 17 | 300 | 77.5 | 70 | 102 | 17 | 9 | 11 |
3" | 76 | 173 | 109 | 159 | 17 | 300 | 86.5 | 70 | 102 | 17 | 9 | 11 |
Main parts and materials
No. | Parts Description | Material | ||
1 | Body | CF8M | CF8 | WCB |
2 | Bonnet | CF8M | CF8 | WCB |
3 | Ball | SS316 | SS304 | |
4 | Seat | PTFE RPTFE PPL | ||
5 | Stem | SS316 | SS304 | 2Gr13 |
6 | Anti-Static | SS304 | ||
7 | Thrust Washer | PTFE | ||
8 | Packing | PTFE | ||
9 | Transition Washer | RPTFE Expanded Graphite | ||
10 | Packing Ring | SS304 | ||
11 | Belle villi Washer | SS304 | ||
12 | Nut | SS304 | ||
13 | Loose Resistant Cover | SS304 | ||
14 | Handle Nut | SS304 | ||
15 | Stop Plate | SS304 | ||
16 | Handle | SS304 | ||
17 | Handle Cover | Plastic | ||
18 | Stop Bolt | SS304 | ||
19 | Seal Gasket | PTFE | ||
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
