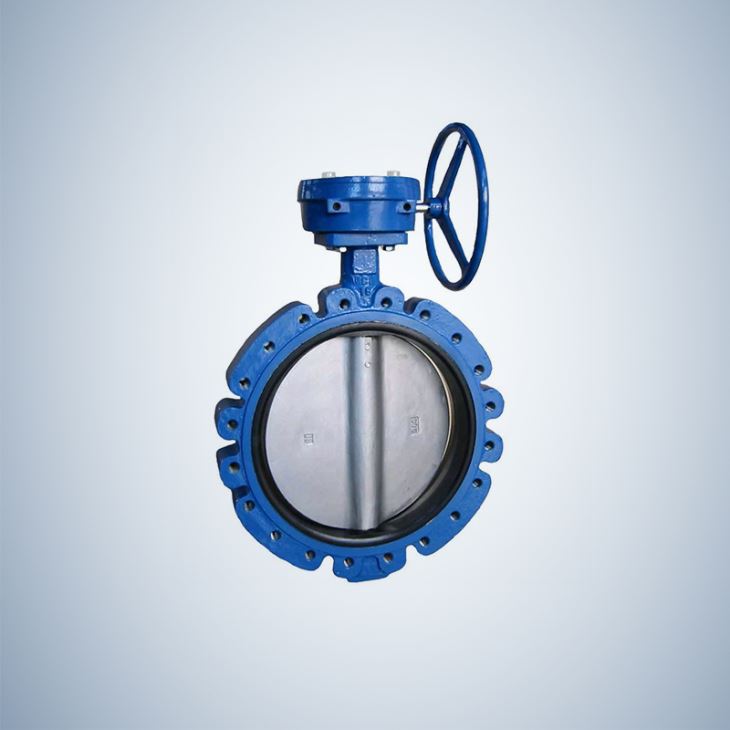

Gear Operated Worm Gear Actuated Lug Concentric Butterfly Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China worm gear actuated lug concentric butterfly valve, lug butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China worm gear actuated lug concentric butterfly valve, lug butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China worm gear actuated lug concentric butterfly valve, lug butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Product Applications :
It is widely used in pipelines as control or throttling apparatus for supply and drainage pipeline of potable water, seawater, waste water, petrochemical industry, energy and power, shipping, food and drug, natural gas, coal gas, HVAC and fire protection systems as well as the building pipelines.

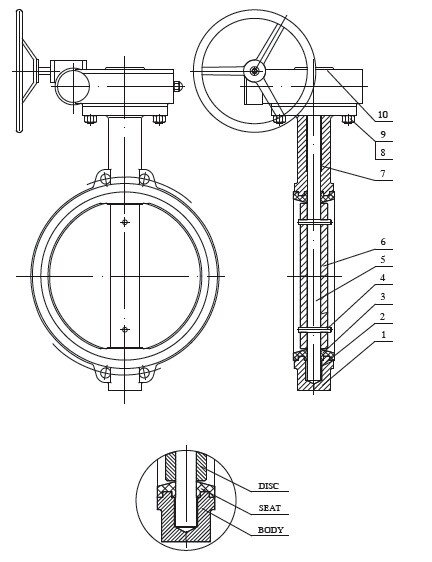

ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | BUSHING | PTFE |
3 | SEAT | PTFE/RUBBER |
4 | PIN | A276 410 |
5 | STEM | A182 F6 |
6 | DISC | A216 WCB |
7 | BUSHING | PTFE |
8 | GEAR OPERATOR | ASSEMBLY |
Product Specifications :
Brand | EO | Nominal diameter | DN50-300（mm） |
Item | Worm gear butterfly valve | Used for | Chemical oil environmental protection power paper and so on |
applicable medium | Steam / water | Pressure | 1.6-2.5（Mpa） |
Transmission form | Manual | Sealed form | Soft seal type |
Temperature: | EPDM liner:-10Deg. C-120 Deg. C NBR liner:-10 Deg. C-82 Deg.C Vi-ton liner: -10C-150C
| Material: | A. Body: Cast iron/Ductile iron/WCB/Stainless Steel B. Disc: DI/CF8/CF8M/C95400 C. Seat: NBR/EPDM/PTFE D. Shaft: SS420/SS316 E: Bushing: Glass backed PTFE /Lubricated bronze F. Operation: Malleable iron lever/Aluminum Lever/Gear/Pneumatic/Electrical
|
1) Sizes: DN40-DN600
2) Pressure: PN10/PN16/CLASS150
3) Temperature:
EPDM liner:-10Deg. C-120 Deg. C
NBR liner:-10 Deg. C-82 Deg.C
Vi-ton liner: -10C-150C
4) Material:
A. Body: Cast iron/Ductile iron/WCB/Stainless Steel
B. Disc: DI/CF8/CF8M/C95400
C. Seat: NBR/EPDM/PTFE
D. Shaft: SS420/SS316
E: Bushing: Glass backed PTFE /Lubricated bronze
F. Operation: Malleable iron lever/Aluminum Lever/Gear/Pneumatic/Electrical
WORM GEAR ACTUATED LUG CONCENTRIC BUTTERFLY VALVE DETAILED FEATURES
TEST PRESSURE | |
SHELL TEST PRE.(HYD). | 3.0MPA |
SEAT TEST PRE.(HYD) | 2.2MPA |
SEAT TEST PRE.(AIR). | 0.6MPA |
CLASS | 150LB |
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details: 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
