Class 125 Lugged Type Concentric Butterfly Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China class 125 lug type concentric butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. CLASS 125 LUG TYPE CONCENTRIC BUTTERFLY VALVE STANDARDS......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China class 125 lug type concentric butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. CLASS 125 LUG TYPE CONCENTRIC BUTTERFLY VALVE STANDARDS...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China class 125 lug type concentric butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

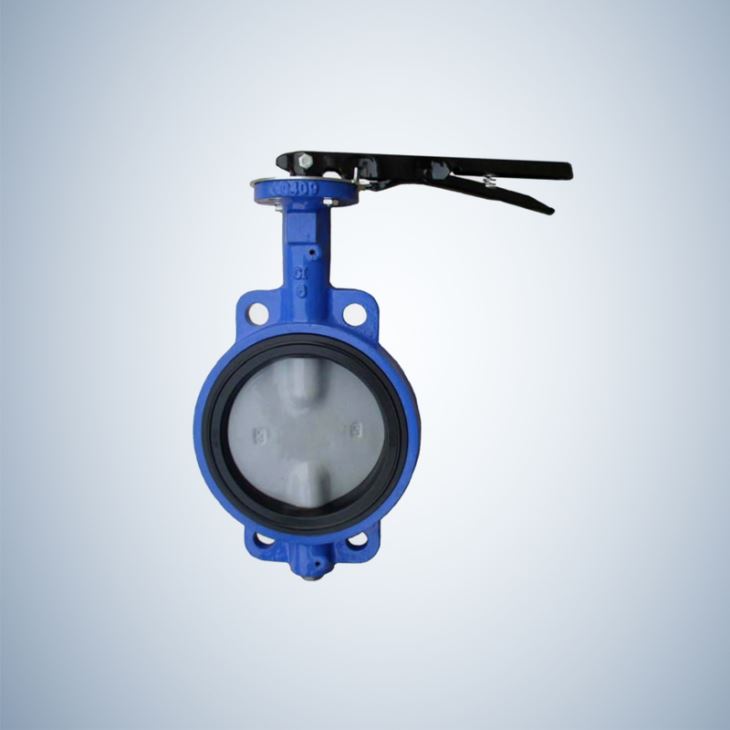

CLASS 125 LUG TYPE CONCENTRIC BUTTERFLY VALVE
Product Specifications :
STANDARDS
1.DESIGN AND MANUFACTURE: API 609
2.FACE TO FACE DIMENSIONS: API 609
3.FLANGE ENDS DIMENSIONS NPS1/2”~24”: ASME B16.5
4.PRESSURE-TEMPEARTURE RATINGS: ASME B16.34
5.PRESSURE: CLASS 150
6.SIZE: NPS 2″~16″
QUICK DETAILS
1) Model Number: cast iron butterfly valve
2) Material: Casting
3) Port Size: 2"-36"
4) Normal pressure: Class 150-class 300
5) End flange dimension: ASME B16.5
6) Face to face dimension: API 609
7) Inspection and test: API 598
8) Pressure-temp rating: ASME B16.34
9) Design & Manufacture: API 609
10) Temperature of Media: Medium Temperature
11) Color: Blue or as per the client's request
SPECIFICATION
1) It is reliable in sealing. The more it closes, the tighter the sealing. It is suitable for medium pressure pipes with t he nominal pressure between 16MPa and 40MPa
2) At the time of opening, the disc can separate itself from the seat promptly, thus the friction torque is low
MATERIAL LIST
ITEM | PART NAME | STANDARD | LOW TEMPERATURE | STAINLESS STEEL |
1 | BODY | A216 WCB | A352 LCC | A351 CF8M |
2 | BUSHING | PTFE | PTFE | PTFE |
3 | SEAT | PTFE/RUBBER | PTFE/RUBBER | PTFE/RUBBER |
4 | PIN | A276 410 | A276 304 | A276 316 |
5 | STEM | A182 F6 | A182 F304 | A182 F316 |
6 | DISC | A216 WCB | A352 LCC | A351 CF8M |
7 | GEAR OPERATOR | ASSEMBLY | ||
GEAR OPERATOR, ELECTRICAL OPERATOR, PENUMATIC OPERATOR, HYDRAULIC OPERATOR ETC.ARE AVALIABLE
NOTE: OTHER METERIALS ARE AVALIABLE UPON REQUEST
PACKAGING
Inner bubble bag, outer in plywood case or as per requirement
FAQ
1. What is your payment term?
30% T/T prior to production, 70% T/T before shipping
2. Can you offer the sample?
Yes, inform us the valve that you need.
3. Which industries will be applied to your valves?
The oil & gas, coal mine, water conservancy, drilling, power station project, metallurgy and chemical industries etc.
Thanks for your visiting.
We look forward to your inquiry.
