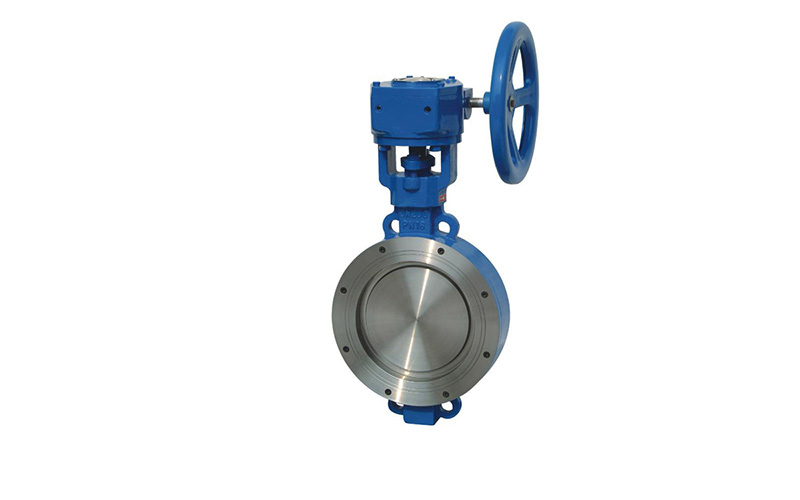

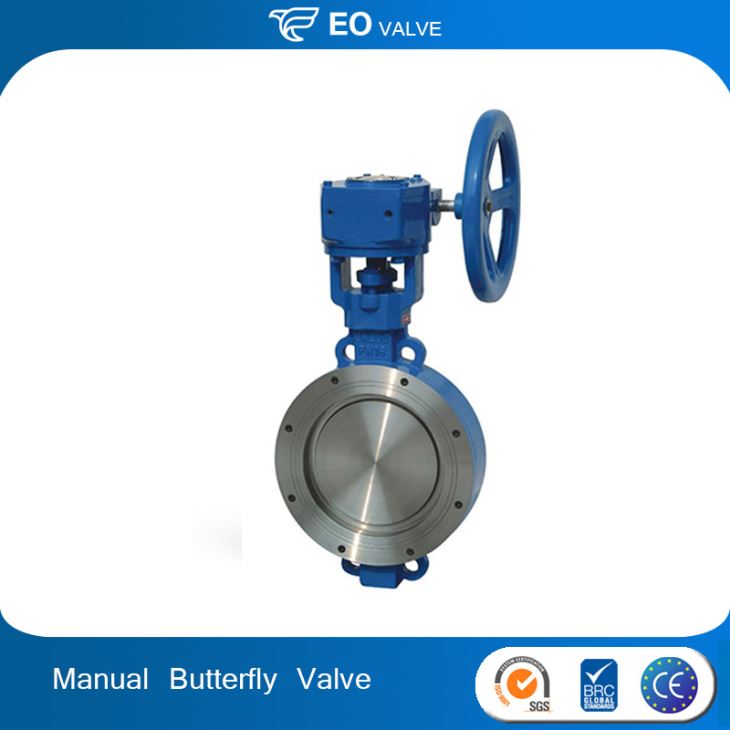

WCB Triple Eccentric Metal Seat 10 Inch Manual Wafer Butterfly Valve
Main configuration characterisristic of 815 830 series of mafer and flange three accentricity;due to use three accentric configuration,hermortic capability reliably which ensure disc never toueh sealingseat when it when it start,solve the problem of hermotical seat burden unequally,prolong servic life,end ensure reliale hermetio oapability with advantage of high temperature resistant wearable,antisepsis etc.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Butterfly |
| Pressure: | Medium Pressure |
| Power: | Manual |
| Material: | Casting |
| Temperature of Media: | Normal Temperature |
| Media: | Oil |
| Port Size: | Standard |
| Place of Origin: | China (Mainland) |
| Model Number: | OEM |
| Brand Name: | CMD |
| Application: | LPG |

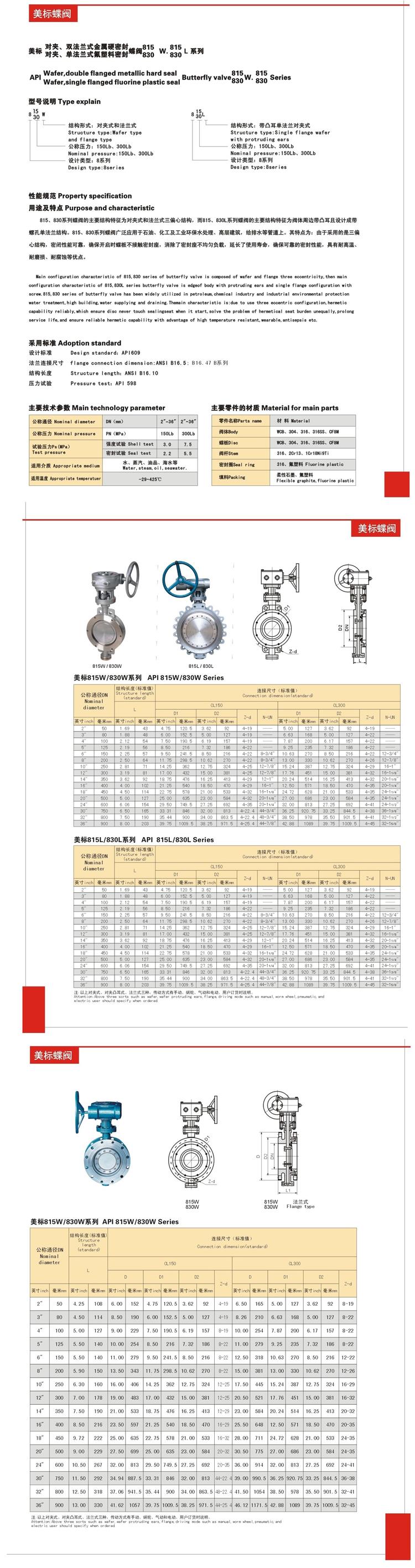

| SPECIFICATIONS FOR STEEL BUTTERFLY VALVES | |
| Pressure rating and size: | PN10 to PN64, Class 150 to Class 600 |
| DN50 to DN2000 | |
| 2"~80" | |
| Material: | Body : WCB,WC6,WC9,CF8,CF8M,CF3,CF3M,C95800 |
| Disc : WCB,WC6,WC9,CF8,CF8M,CF3,CF3M,C95800 | |
| Stem : 2Cr13, SS304, SS316, 304L, 316L, 17-4PH | |
| Seal : SS+Graphite, PTFE, RPTFE, EPDM, NBR | |
| Packing : PTFE, RPTFE, Graphite | |
| Operated type | Lever, Worm Gear, Pneumatic, Electric, Bare shaft,etc. |
| Structure: | Double eccentric/offset, Triple eccentric |
| Connection Standard: | EN1092, ANSI B16.5, JIS B2212, GB/T9113 |
| Connection Type: | Flange, wafer, lug |
| Medium: | Water, oil, gas, steam and acid |
| Temperature: | 425°C or above |
