High Performance Butterfly Valve

High Performance Butterfly Valve

high performance butterfly valve offers outstanding performance under extreme pressure and temperature conditions. The 8532 valve maintains tight shutoff, is available in a fire-tested construction, and can be specified for cryogenic applications. Available as either a flangeless (wafer style) design, single flange (lugged), or Double Flanged design.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Regulating
Pressure:Medium Pressure
Power:Pneumatic
Material:Stainless Steel
Temperature of Media:Medium Temperature
Media:Acid
Port Size:Standard
Place of Origin:China (Mainland)
Model Number:8532
Brand Name:EO
Application:General

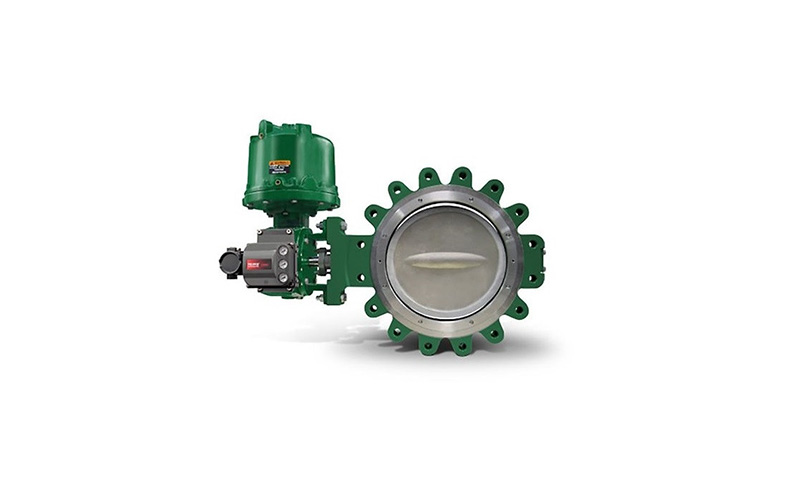

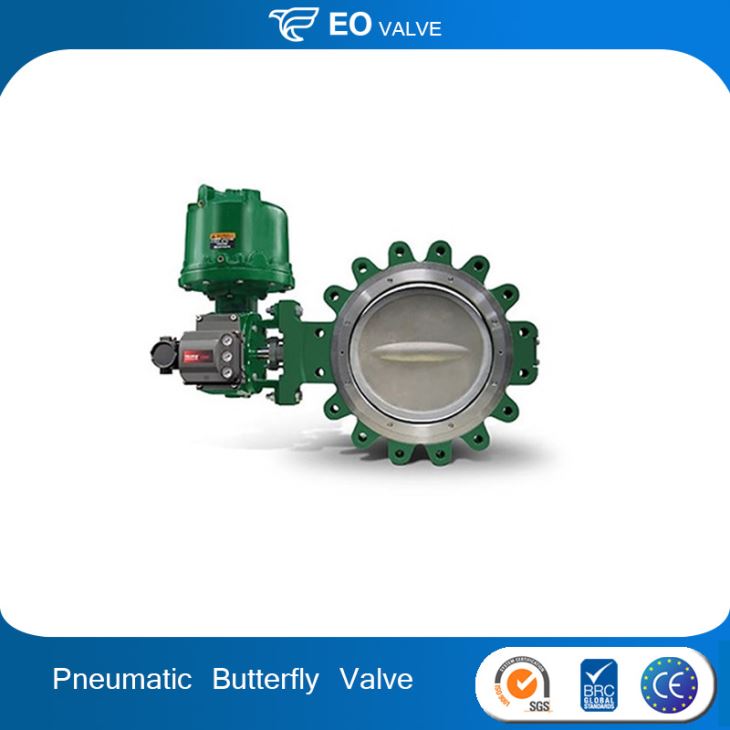

EO 8532 High Performance Butterfly Valve

The EO 8532 high performance butterfly valve offers outstanding performance under extreme pressure and temperature conditions. The 8532 valve maintains tight shutoff, is available in a fire-tested construction, and can be specified for cryogenic applications. Available as either a flangeless (wafer style) design, single flange (lugged), or Double Flanged design.



Specifications

Certifications SIL capable, PED, CRN, Fugitive Emission, NACE, ATEX, CUTR, Fire Safe

Critical Service General Service

Flow Characteristics Linear

Material Carbon Steel, Stainless, Alloy

Operating Temperature Standard Temperature, High Temperature, Cryogenic

Power Source Electric, Hydraulic, Pneumatic, Electro-Hydraulic

Pressure Class ASME

Process Connection Type Flanged, Single Flanged, Double Flanged, Lugged, Wafer

Seat / Seal Type Metal, Soft

Shutoff Class MSS SP-61, Class IV (FCI 70-2), Class VI (FCI 70-2), Flow Ring

Standards B16.34

Stem Live Loaded, Adjustable Packing

Valve Size NPS 14, NPS 16, NPS 18, NPS 20, NPS 24

Valve Size Standard NPS

Other Configurations Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.



Features

The pressure-assisted seal design provides tight shutoff against the full pressure rating of the specified valve.

The anti-blowout gland fits securely over the valve shaft, which has been turned down to form a circumferential shoulder that contacts the anti-blowout gland.

A splined end connection on the drive shaft allows lever clamping by most EO rotary actuators.

Optional keyed shaft is ideal for on/off applications and allows actuator selection flexibility.

The optional ENVIRO-SEAL™ packing system is designed with very smooth stem surfaces and live-loading provides improved sealing, guiding, and loading force transmission.

The valve body self-centers on the line flange bolts as a fast, accurate means of centering the valve in the pipeline.

Seal retainer screws are located so there is no interference with the sealing function of either flat sheet or spiral-wound line flange gaskets.




Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
