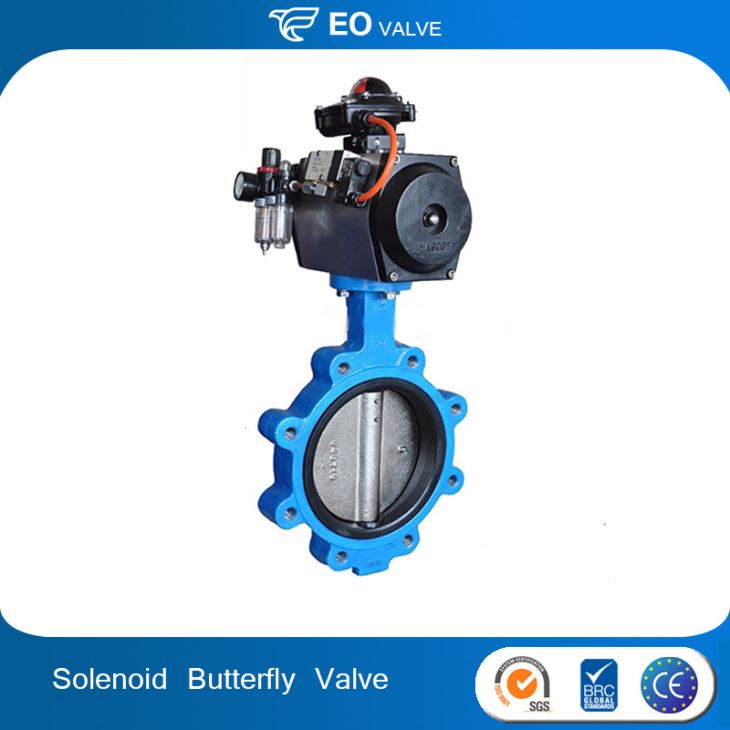

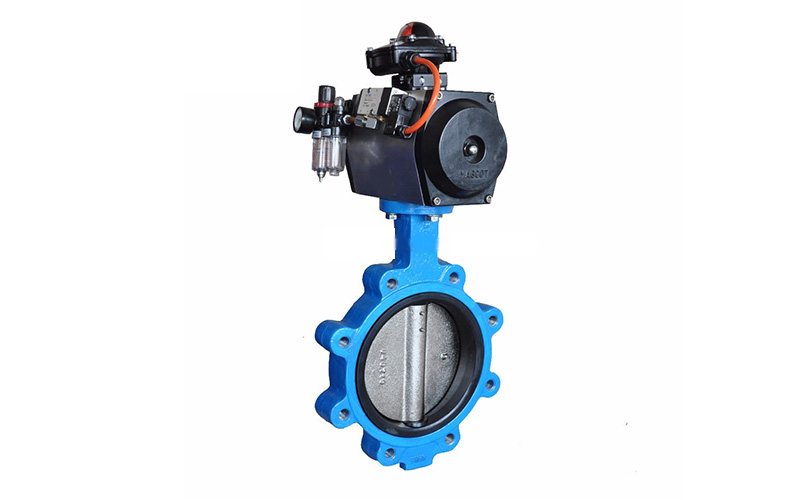

Double Effect Automatic Control Lug Butterfly Valve With Solenoid Valve
Double Effect Automatic Control Lug Butterfly Valve with Solenoid valve;Application:Water, Oil, Gas,Flange end:EN1092/ANSI,Valve type:Lug butterfly valve
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Butterfly |
| Pressure: | Low Pressure, PN10/PN16/150LB |
| Power: | Manual |
| Material: | Casting |
| Temperature of Media: | Normal Temperature |
| Media: | Water |
| Port Size: | DN40-DN1200 |
| Place of Origin: | China (Mainland) |
| Model Number: | D67L1X |
| Brand Name: | EO |
| Application: | Water, Oil, Gas |
| Flange end: | EN1092/ANSI |
| Face to face: | EN558-1/20 |
| Operator: | Gear worm |
| Valve type: | Lug butterfly valve |
| Body material: | CI/DI/WCB/SS |
| Factory size: | 35000m2 |
| Employees: | 300 |
| Factory: | 20 years factory |
| Certificates: | CE/WRAS/ISO9001/ISO14001 |
Discription of Rubber Seal Lug Butterfly Valve
Samll size, light weight and easy maintenance, the above series of valves and be used as a device to cut-off or regulate the flow in various medium pipes.
Trough selecting idfferent materials of disc and seal seat, as well as the pinless connection between disc and stem, the valve can be applied to worse conditionss, such as desulphurization vacuum, sea water desalinization.
Lug butterfly valve allows downstream pipelined and equipemnts online repair, and it can be installed on pipe ends as exhaust valve.

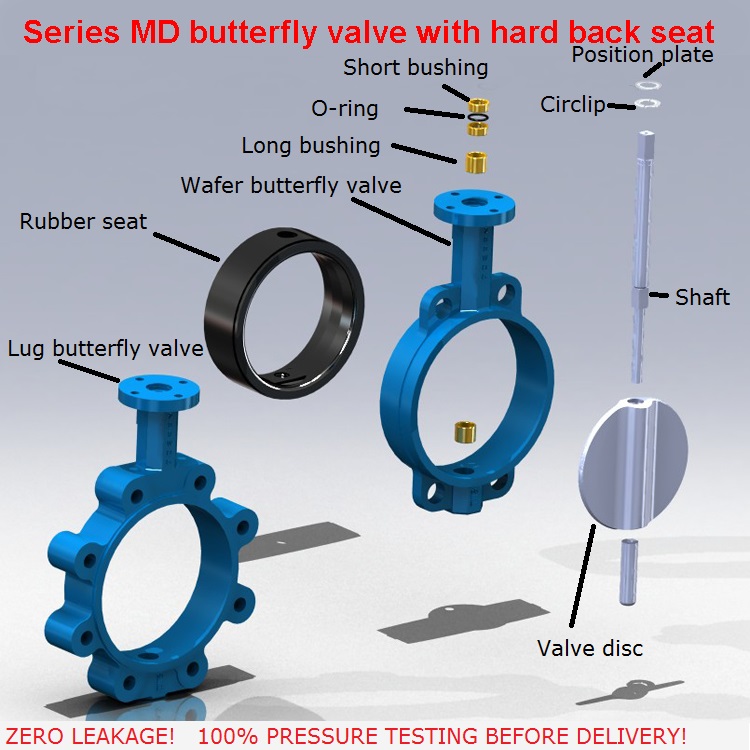

Materials of differents parts:
1.Body: cast Iron
2.Disc: C95400
3.Stem:SS420
4.Seat:EPDM/NBR
Other material choices for Rubber Seal Lug Butterfly Valve
| Valve parts | Material |
| Body | CI, DI, WCB, CF8, CF8M |
| Disc | DI, CF8, CF8M, C95400,C95500,C95800, 1.4529, 1.4469,2507 |
| Shaft | SS410, SS416, SS420, SS431, MONEL K500, F51, 17-4PH |
| Seat | EPDM with WRAS certificated |
| Actuator | HANDLE LEVER, GEAR WORM, PENEMATIC, ELECTRIC |
