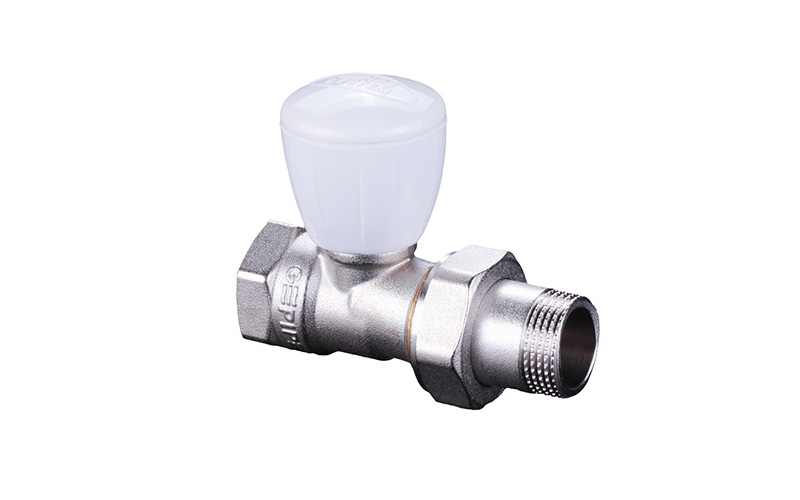

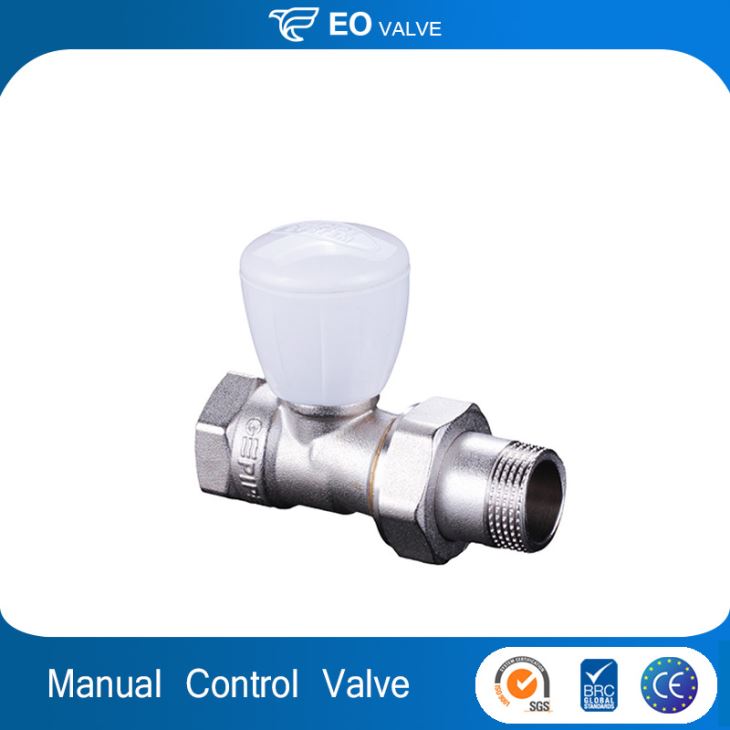

High Quality All Copper 180 Degree Manual Control Valve
High Quality All Copper 180 Degree Manual Control Valve;Pressure:Medium Pressure,Port Size:,1/2 3/4,Application:General,Nominal Pressure(PN):1.0Mpa,Weight g:250g.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Ball |
| Pressure: | Medium Pressure |
| Power: | Hydraulic |
| Material: | Brass |
| Temperature of Media: | Other |
| Media: | Water |
| Port Size: | 1/2 3/4 |
| Place of Origin: | China (Mainland) |
| Brand Name: | EO |
| Application: | General |
| Material used: | CW617N Nickel plated brass |
| Material of sealing ring: | EPDM |
| Nominal Pressure(PN): | 1.0Mpa |
| Size: | 1/2 3/4 |
| Brand: | GEPIPE |
| Medium: | water |
| Weight g: | 250g |
| Country of origin: | China |
| Type: | copper valve |

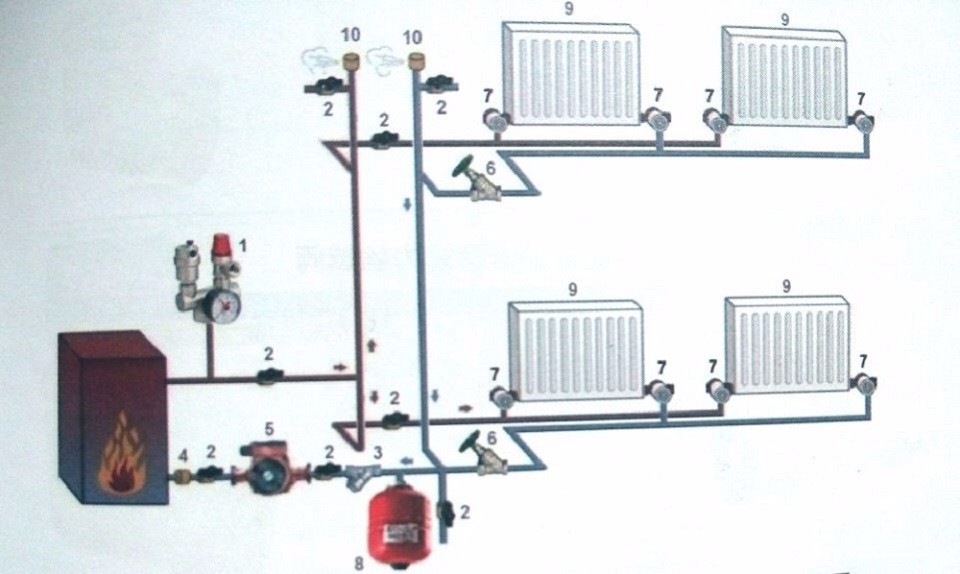

1. Security component 2. Ball valve 3. Strainer valve 4. Check valve 5. Water pump
6. Stop valve 7. Manual control valve for radiator 8. Expansion tank
9. Radiator 10. Air exhaust valve
