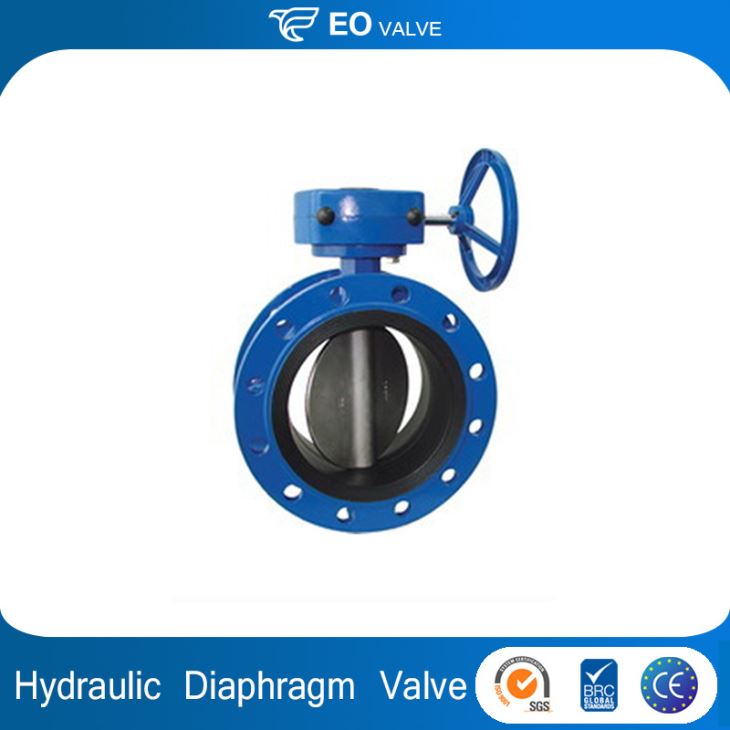

Pneumatic Diaphragm Flanged Butterfly Hydraulic Modular Valve

Pneumatic Diaphragm Flanged Butterfly Hydraulic Modular Valve

Pneumatic Diaphragm Flanged Butterfly Hydraulic Modular Valve;Application:General,Design standard:BS5155,API609,EN593,Test standard:DIN3230 Part3,API598,EN12266-1,Working pressure:10bar/16bar.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Butterfly
Pressure:Low Pressure
Power:Manual

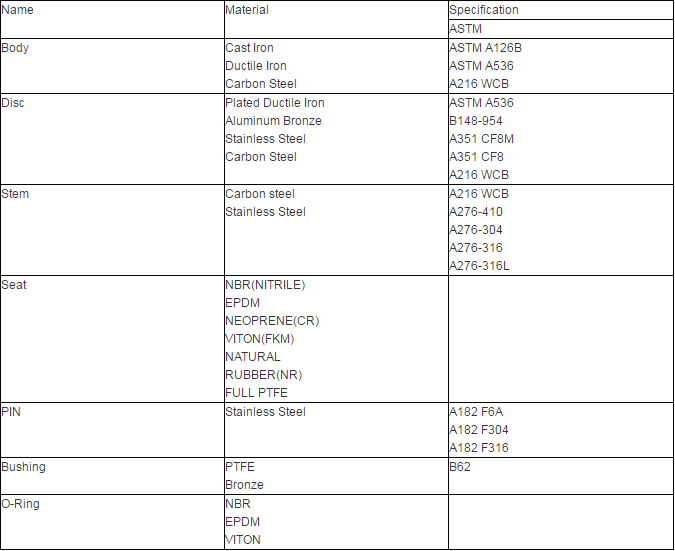

Material:cast iron,ductile iron, stainless steel,WCB
Temperature of Media:Normal Temperature
Media:water,sewage,oil,gas and so on
Port Size:DN50-DN2200
Place of Origin:China (Mainland)
Model Number:D41X68
Brand Name:EO
Application:General
Certificate:ISO9001:2008 CE
Design standard:BS5155,API609,EN593
Test standard:DIN3230 Part3,API598,EN12266-1
Face to face standard:EN558-1,ISO5752
End connection:DIN2501 PN10/16,BS4504 PN10/16,ASME B16.1 125LB/150LB,JISB2220 10K
Working pressure:10bar/16bar
Shell test pressure:15bar/24bar
Seal test pressure:11bar/17.6bar
Free sample:negotiable



气动隔膜式ss法兰蝶阀液压组合阀



Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
