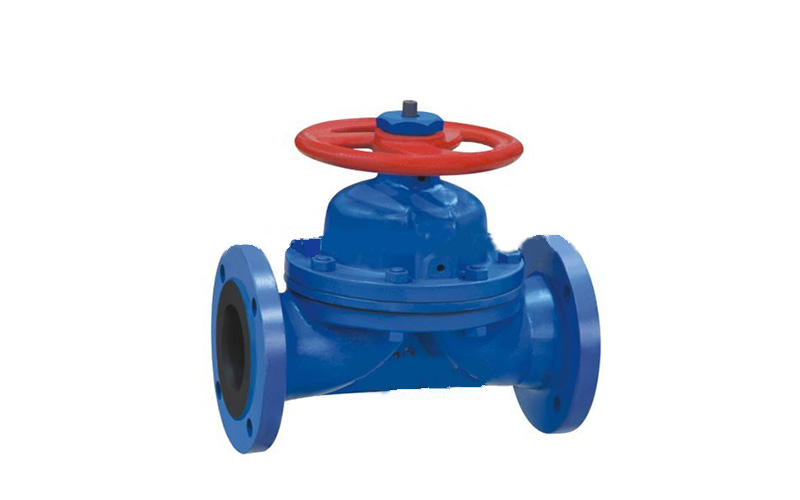

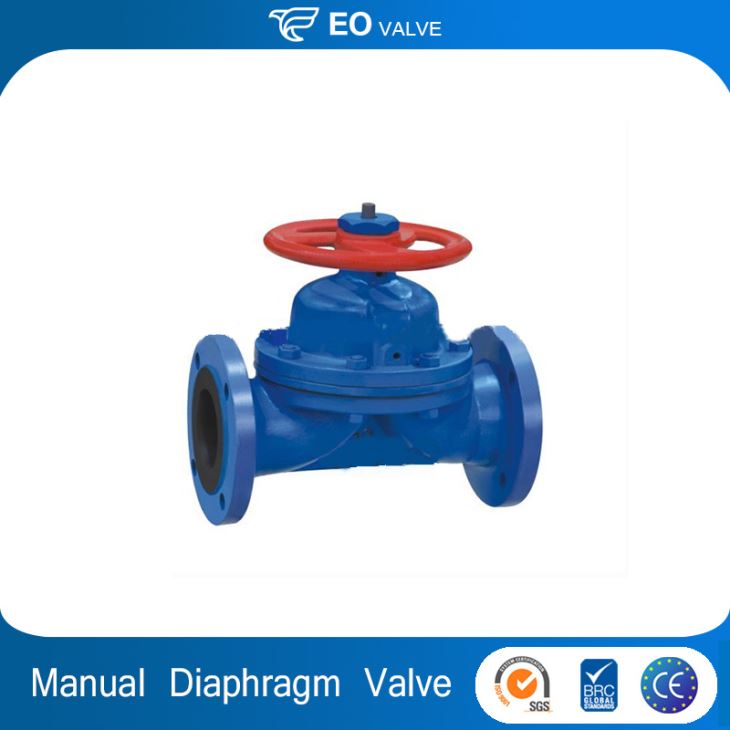

Rubber Lined Diaphragm Valve

Rubber Lined Diaphragm Valve

Rubber Lined Diaphragm Valve;Material:Brass,Temperature of Media:Medium Temperature,Media:Air ,Gas ,Oil ,Water,Place of Origin:China (Mainland),Orifice:1.5~8mm.

Send Inquiry

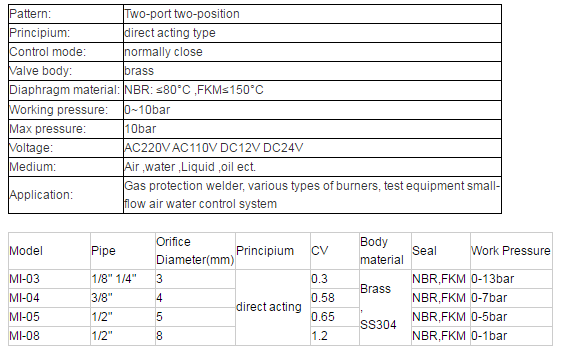

Quick Details
Standard or Nonstandard:Standard
Structure:Control
Pressure:Medium Pressure
Power:Solenoid
Material:Brass
Temperature of Media:Medium Temperature
Media:Air ,Gas ,Oil ,Water
Port Size:1/8" 1/4" 3/8" 1/2"
Place of Origin:China (Mainland)
Model Number:MI-05
Brand Name:EO
Form:plug and wire lead type
Operating Temperature:-5~80°C
Orifice:1.5~8mm
type:normal colse ,normal open
Working pressure:0-13bar
Voltage:

AC110V AC220V 24V DC 12V DC

Sealing materials:NBR ,VITON
For:water inlet solenoid valve
Body material:Brass , stainless steel
Principium:directly acting type




Teflon PTFE Lined Diaphragm Valve

Technical Specification

Model Number:G41PFA

Design and Manufacture: ASME B16.34

End-to-end dimension: HG/T3704

Flange Standard: ASME/ANSI 16.5

Inspection and testing: API 598

Standard or Nonstandard:Standard

Structure:Diaphragm

Pressure:Low Pressure

Temperature of Media:Normal Temperature

Material:Casting,WCB+PFA

Diameter:DN15~250



Product Specification

Body Material: A216/WCB, A351/CF8,A351/CF8M,A351/CF3,A351/CF3M, LCB,A536

Disc: A216/WCB, A351/CF8,A351/CF8M,A351/CF3,A351/CF3M

Diaphragm Part: EPDM+PFA, FEP

Lining Material: PTFE,FEP,PFA,PO

Nominal Diameter: NPS 1/2-16

Pressure Range: 150lb 300lb JIS DIN

Connection Type: flange connection

Operation Method: hand wheel etc.




Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
