Bolted Bonnet Cast Steel Gate Valve

Bolted Bonnet Cast Steel Gate Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China bolted bonnet cast steel gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Cast Steel wheel handle Bolted Bonnet Rising Stem Gate... Products D...

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China bolted bonnet cast steel gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Cast Steel wheel handle Bolted Bonnet Rising Stem Gate...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China bolted bonnet cast steel gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

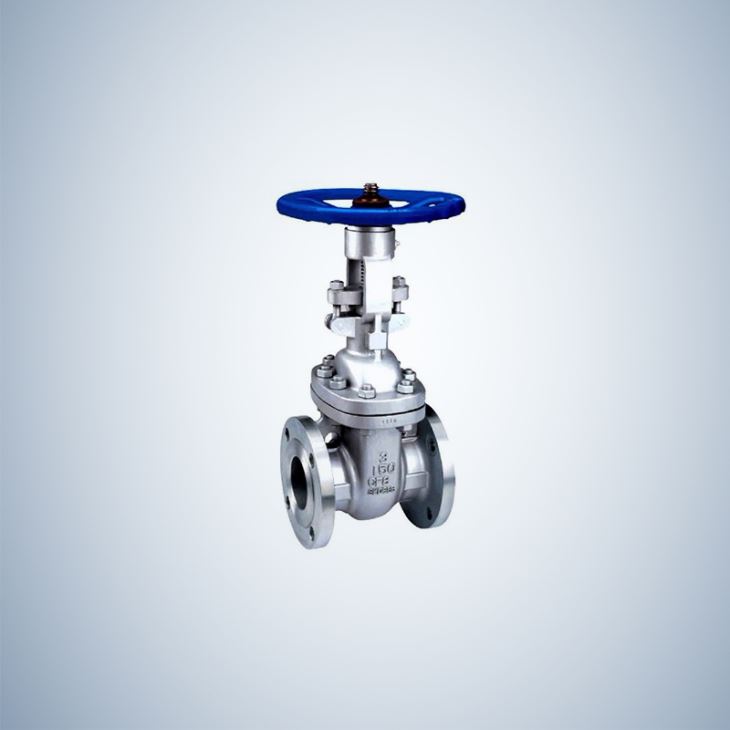

Cast Steel Wheel Handle Bolted Bonnet Rising Stem Gate Valve,

Product Specifications :

Design Feature:

Design & Manufacture Standard: ANSI B16.5, B16.34, API 600
OS&Y, Bolted Bonnet
Solid, Flexible or Split Wedge Design
Back-seating, Renewable Seat Ring
Full Port Or Reduced Bore
Optional Upset forged T-head Stem Design
Size Range: 2" to 48"N. B.
Pressure Ratings: ANSI Class 150, 300, 600, 900
End Connections: Flanged, Buttweld, Socket Weld, etc.



MATERIAL (PARTIAL):

ITEM

PARTNAME

STANDARD

LOW TEMPERATURE

STAINLESS STEEL

1

BODY

A216 WCB

A352 LCC

A351 CF8M

2

SEAT

A105

A350 LF2

A182 F316

3

WEDGE

A216 WCB

A352 LCC

A351 CF8M

4

STEM

A182 F6

A182 F304

A182 F316

5

GASKET

304SS/316SS+GRAPHITE /304SS/316SS METAL RING

6

BONNET

A216 WCB

A352 LCC

A351 CF8M

7

BOLT

A193 B7/B7M

A320 L7/L7M

A193 B8M

8

NUT

A194 2H/2HM

A194 7/7M

A194 8M

9

BACKSEAT BUSHING

A276 410

A276 304

A276 316

10

PACKING

GRAPHITE/PTFE



11*

LANTERN RING

A276 410

A276 304

A276 316

12

GLAND FLANGE

A216 WCB

ASTM A352 LCC

A351 CF8

13

GLAND

276 410

276 410

A276 316

14

GLAND NUT

A194 2H/2HM

A194 7/7M

A194 8

15

EYEBOLT

A193 B7/B7M

A320 L7/L7M

A193 B8

16

STEM NUT

A439 D2/Cu-ALLOY



17

YOKE

A216 WCB

A352 LCC

A351 CF8

18

HANDWHEEL

STEEL/DUCTILE IRON


SEALING FACE OVERLAY

API TRIMS AVAILABLE


Note:GEAR OPERATOR, ELECTRICAL OPERATOR, PNEUMATIC OPERATOR, HYDRAULIC OPERATOR AND ETC. ARE AVALIABLE*AVAILABLE UPON REQUEST FOR CLASS 300 AND ABOVE



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal


FAQ :

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.
