Products Details :

Shenyang EO Valve Co.,Ltd is a leading China 600lb cast steel gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. API 600lbCast Steel Bolted Bonnet flange ends Gate Valve


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China 600lb cast steel gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

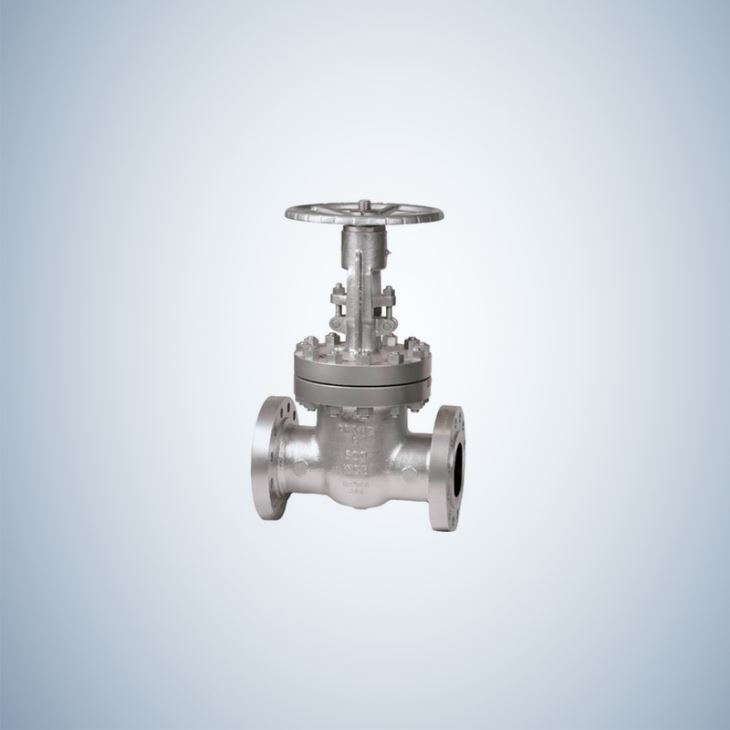

API 600lbCast Steel Bolted Bonnet Flange Ends Gate Valve




Product Specifications :

Product Standard:

1. DESIGN AND MANUFACTURE:

API600/ASME B16.34/BS1414

2. FACE TO FACE DIMENSIONS:

ASME B16.10

3. FLANGE ENDS

DIMENSIONS:

NPS1/2inch~24inch: ASME B16.5

NPS26inch~36inch: ASME B16.47

4. BW ENDS DIMENSIONS:

ASME B16.25

5. PRESSURE-TEMPERATURE RATINGS:

ASME B16.34

6. NORMAL PRESSURE:

CLASS 150~1500

7. NORMAL DIAMETER:

NPS 2″~36″


DESIGN FEATURES:

Bolted bonnet
Outside screw and yoke
Rising stem and non-rising handwheel
Flexible wedge, fully guided
Metal-to-metal seat
Renewable seat ring and stem backseat
Manual operation standard, gear operator and actuation available
Butt weld end
Flange end: Raised face or ring type joint

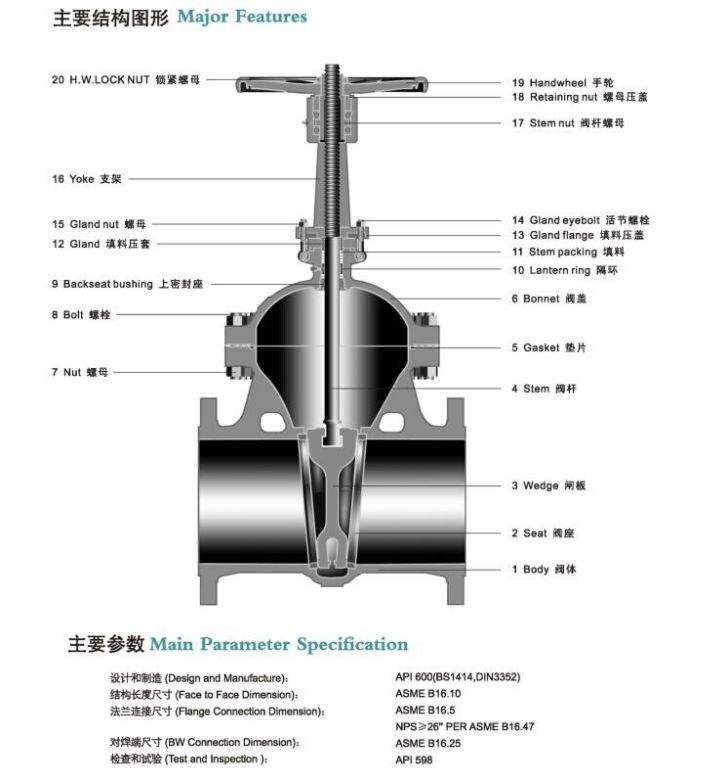

BILL Of MATERIAL:

1

PARTNAME

STANDARD

LOW TEMPERATURE

STAINLESS STEEL

1

BODY

A216 WCB

A352 LCC

A351 CF8M

2

SEAT

A105

A350 LF2

A182 F316

3

WEDGE

A216 WCB

A352 LCC

A351 CF8M

4

STEM

A182 F6

A182 F304

A182 F316

5

GASKET

304SS/316SS+GRAPHITE /304SS/316SS METAL RING

6

BONNET

A216 WCB

A352 LCC

A351 CF8M

7

BOLT

A193 B7/B7M

A320 L7/L7M

A193 B8M

8

NUT

A194 2H/2HM

A194 7/7M

A194 8M

9

BACKSEAT BUSHING

A276 410

A276 304

A276 316

10

PACKING

               GRAPHITE/PTF

11*

LANTERN RING

A276 410

A276 304

A276 316

12

GLAND FLANGE

A216 WCB

ASTM A352 LCC

A351 CF8

13

GLAND

276 410

276 410

A276 316

14

GLAND NUT

A194 2H/2HM

A194 7/7M

A194 8

15

EYEBOLT

A193 B7/B7M

A320 L7/L7M

A193 B8

16

STEM NUT

A439 D2/Cu-ALLO

17

YOKE

A216 WCB

A352 LCC

A351 CF8

18

HANDWHEEL

               STEEL/DUCTILE IRON


SEALING FACE OVERLAY

               API TRIMS AVAILABLE



*AVAILABLE UPON REQUEST FOR CLASS 150,300 AND ABOVE GATE VALVE.

GEAR OPERATOR, ELECTRICAL OPERATOR, PNEUMATIC OPERATOR, HYDRAULIC OPERATOR AND ETC. ARE AVALIABLE FOR OUR 4 INCH GATE VALVE

NOTE: OTHER MATERIALS ARE AVAILABLE UPON REQUEST


PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal


FAQ :

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.
