WCB Gate Valve

WCB Gate Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China wcb gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. WCB Cast Steel rising stem flange ends Gate Valve Products D escription : Shenyang EO Valve...

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China wcb gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. WCB Cast Steel rising stem flange ends Gate Valve


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China wcb gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.


WCB Cast Steel Rising Stem Flange Ends Gate Valve






Product Specifications :

Product Features:

1). Size: 1/2"-36".
2). Material:CF8, CF8M, CF3, CF3M. 304 ,304L,316,316L. WCB, WCC etc are available

3). Class: 150LB, 300LB, 600LB, 900LB,1500LB, 2500LB

4). Suitable medium: water, oil, air and some corrosive liquid

5). Temperature range: -20°C - 425°C

6). Operate: handwheel, pneumatic, actuator

7). Design and manufacture: API 6D & API 600

8). Inspection and Test: API 6D & API 598
9). Flange end dimension: ASME B16.5 & MSS-SP-44

10). Butt-welding end dimension: ASME B16.25

11). Face to face: API 6D & ASME B16.10

12).Certificate: API, CE, TS, ISO, AZ,Gost

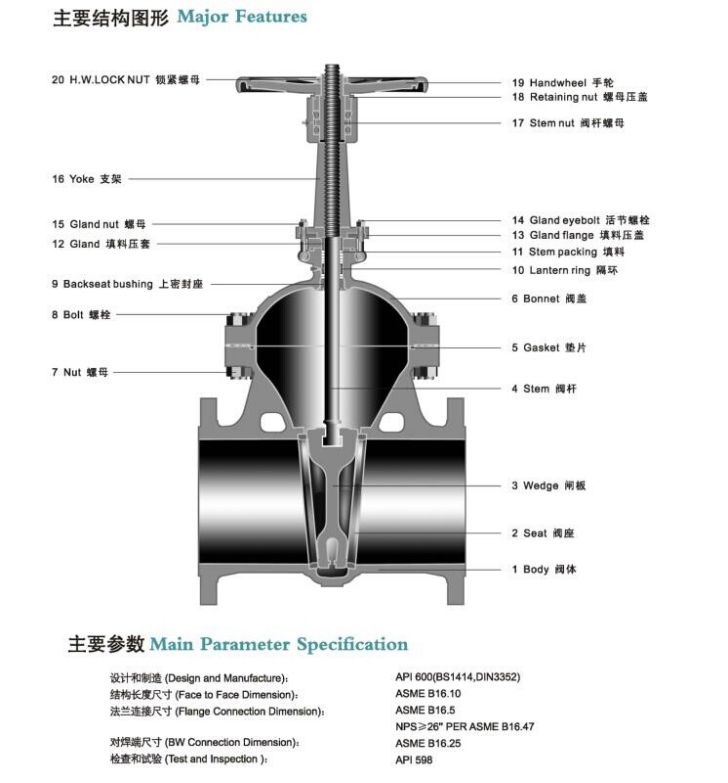

Bill of Material:

1

PARTNAME

STANDARD

LOW TEMPERATURE

STAINLESS STEEL

1

BODY

A216 WCB

A352 LCC

A351 CF8M

2

SEAT

A105

A350 LF2

A182 F316

3

WEDGE

A216 WCB

A352 LCC

A351 CF8M

4

STEM

A182 F6

A182 F304

A182 F316

5

GASKET

304SS/316SS+GRAPHITE /304SS/316SS METAL RIN

6

BONNET

A216 WCB

A352 LCC

A351 CF8M

7

BOLT

A193 B7/B7M

A320 L7/L7M

A193 B8M

8

NUT

A194 2H/2HM

A194 7/7M

A194 8M

9

BACKSEAT BUSHING

A276 410

A276 304

A276 316

10

PACKING

GRAPHITE/PTFE

11*

LANTERN RING

A276 410

A276 304

A276 316

12

GLAND FLANGE

A216 WCB

ASTM A352 LCC

A351 CF8

13

GLAND

276 410

276 410

A276 316

14

GLAND NUT

A194 2H/2HM

A194 7/7M

A194 8

15

EYEBOLT

A193 B7/B7M

A320 L7/L7M

A193 B8

16

STEM NUT

A439 D2/Cu-ALLOY

17

YOKE

A216 WCB

A352 LCC

A351 CF8

18

HANDWHEEL

STEEL/DUCTILE IRON


SEALING FACE OVERLAY

API TRIMS AVAILABLE



PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal


FAQ :

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.
