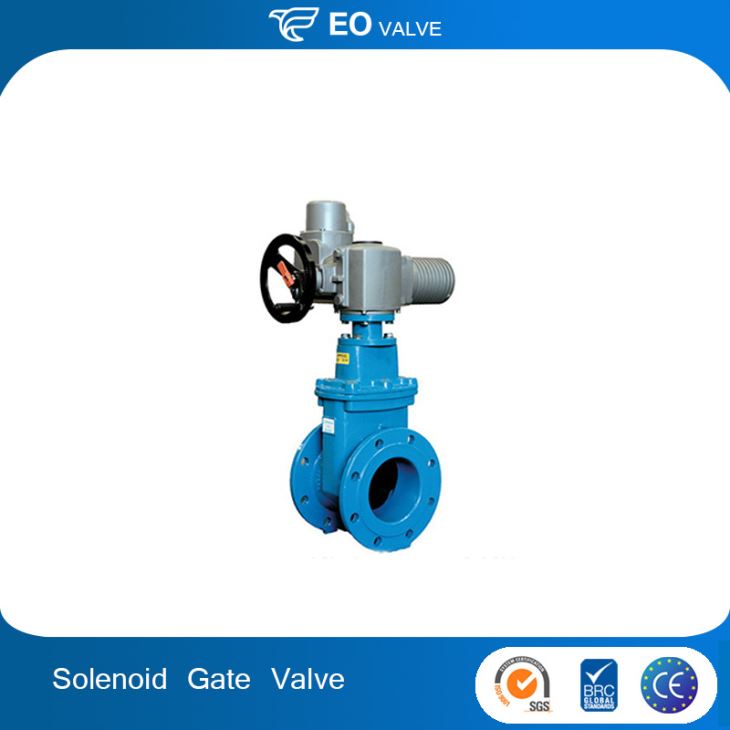

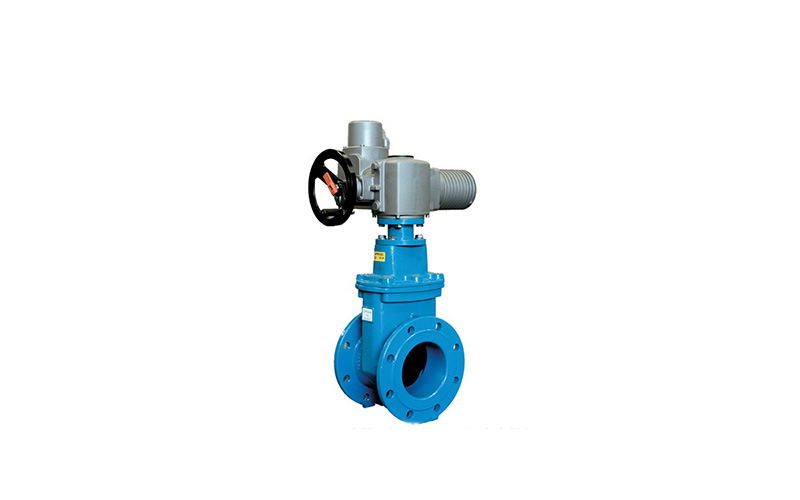

Solenoid Valve Electric Water Gate Valve With Price
Solenoid Valve Electric Water Gate Valve With Price;Pressure:High Pressure,Power:Solenoid,Media:Water,Brand Name:EO,Place of Origin:China (Mainland).
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Angle |
| Pressure: | High Pressure |
| Power: | Solenoid |
| Material: | Casting |
| Temperature of Media: | High Temperature |
| Media: | Water |
| Port Size: | DN40-DN2400 |
| Place of Origin: | China (Mainland) |
| Model Number: | Gate Valve |
| Brand Name: | EO |
| Application: | General |
| Ball material: | CI/DI/SS/CS/WCB/alluminium |
| Disc: | CI/DI/SS/CS/WCB/Brass |
| Stem: | WCB/SS304/SS316/SS410/SS431 |
| Seat: | EPDM/PTFE/NBR/VITON |
| Medium: | Base Oil Water Gas |
| Certificate: | ISO9001:2008 CE |
| Color: | Customer's Request |
| Working pressure: | PN10/PN16/JIS 5K/JIS 10K/C |
| Part Name | Materials |
| Body | Cast Iron: ASTM A126CL. B, DIN1691 GG25, EN 1561 EN-GJL-200, GB12226 HT2 Ductile Cast Iron: ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10 Stainless Steel: ASTM A351 CF8, CF8M, CF3, CF3M Carbon Steel: ASTM A216 WCB |
| Stem | Zinc Plated Steel Stainless Steel: ASTM A276 Type 316, Type 410, Type 420, ASTM A582 Type 416 |
| Taper Pin | Stainless Steel: ASTM A276 Type 304, Type 316, EN 1.4501 |
| Seat | NBR, EPDM, Neoprene, PTFE, Viton |
| Handle | Ductile Cast Iron (Nickel plated): ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10 Stainless Steel: ASTM A351 CF8, CF8M, CF3, CF3M; EN 1.4408, 1.4469, 1.4501 AL-Bronze: ASTM B148 C95400 |
| O-Ring | NBR, EPDM, Neoprene, Viton |
| Bushing | PTFE, Nylon, Lubricated Bronze8 |
