Products Details :

Shenyang EO Valve Co.,Ltd  is a leading China flanged pressure seal bonnet gate valve, non rising stem gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China flanged pressure seal bonnet gate valve, non rising stem gate valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

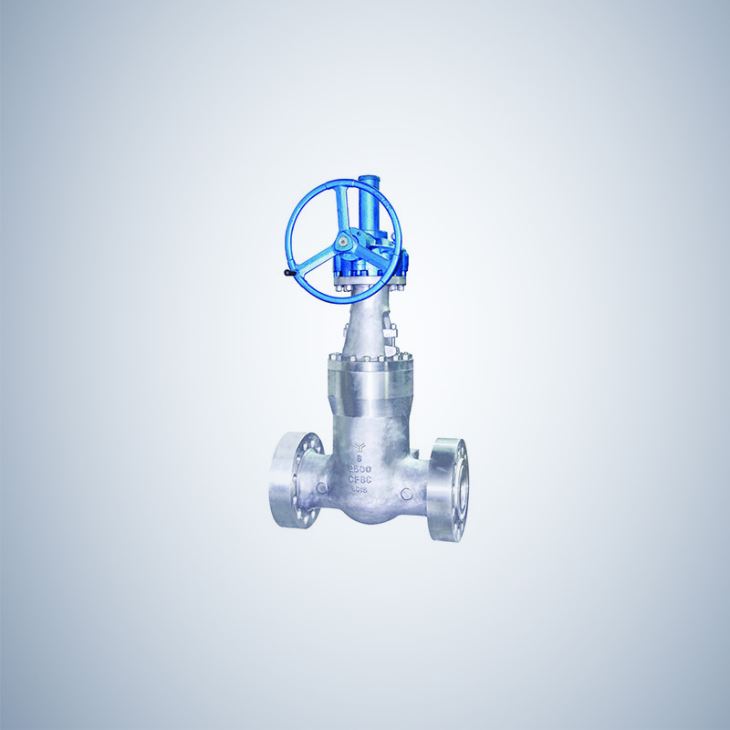

Cast Steel Flanged Ends Pressure Seal Bonnet Gate Valve.

Product Specifications :

Standards:

DESIGN AND MANUFACTURE

API 600

FACE TO FACE DIMENSIONS

ASME B16.10

FLANGE ENDS DIMENSIONS

NPS 1/2''~24''

NPS 26''~36''



ASME B16.5

ASME B16.47

BW ENDS DIMENSIONS

ASME B16.25

PRESSURE-TEMPERATURE RATINGS

ASME B16.34

NORMAL PRESSURE

CLASS 900-2500

NORMAL DIAMETER

NPS 2''-16''


Design Features:

1. Pressure Sealing design

2. Wedge type: flexible wedge, double Wedge

3. Back seat design

4. Outsied screw and yoke(O.S&Y)

5. Body gasket: smooth ellipse composite gasket for class 150; half-groove spiral wound gasket for class 300;

Full-groove spiral wound gasket for class 600; octagonal ring gasket and oval ring gasket for class 900~class 1500


Material:

1. Cast Steel: A216 WCB, A105(<2" forged material)

2. Low temperature: A352 LCC, LCB,

3. Stainless steel: A351 CF8M, CF8, CF3M, CF3

Other material are available upon customer’s request


Our Advantage:

1). Scale: 82,000.00 square meters non-dust workshop

2). The foundry is built to promise our raw material better before production.

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

5). Strict QC system is set up for the superior quality guarantee.


PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
