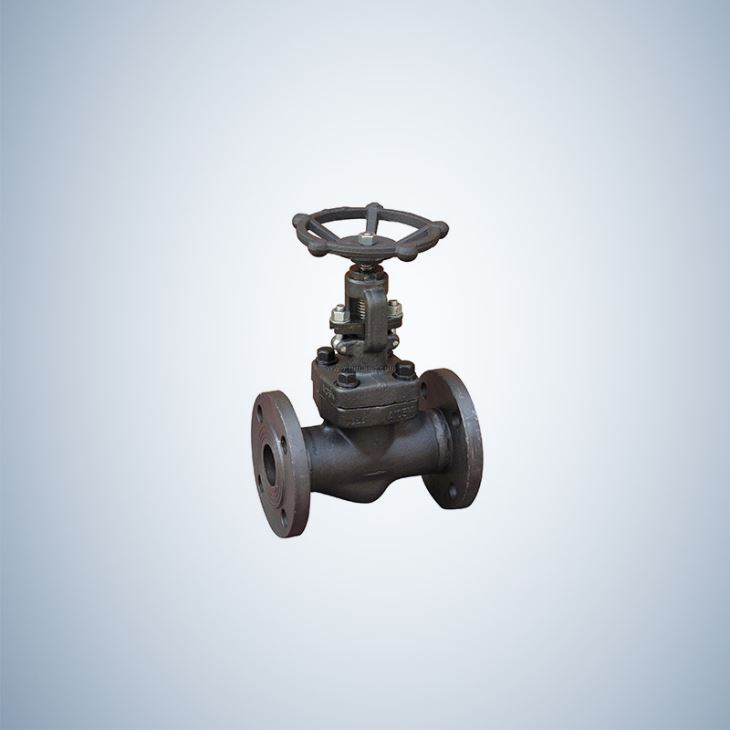

Forged Steel Gate Valve Flange Ends
Products Details : Shenyang EO Valve Co.,Ltd is a leading China forged steel gate valve flange ends manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading China...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China forged steel gate valve flange ends manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China forged steel gate valve flange ends manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
API 602 Full Port Bolted Bonnet Forged Steel Gate Valve.
Product Specifications :
Design Standard:
DESIGN AND MANUFACTURE | API 602(BS 5352) |
DESIGN AND MANUFACTURE | ASME B16.10 OR MANUFACTURER'S SPECIFICATION |
FLANGE ENDS DIMENSIONS | ASME B16.5 |
BW ENDS DIMENSIONS | ASME B16.25 |
SOCKET WELD ENDS DIMENSIONS | ASME B16.11 |
THREADED ENDS DIMENSIONS | ASME B1.20.1 |
PRESSURE-TEMPERATURE RATINGS | ASME B16.34 |
NORMAL PRESSURE | CLASS 150-1500 |
NORMAL DLAMETER | NPS1/2"~2" |
Main parts Materials:
NO. | Part Name | AStoASTM | AStoASTM | AStoASTM | |
A105 | F22 | F304(L) | F316(L) | ||
1 | Body | A105 | A182F22 | A182F304(L) | A182F316(L) |
2 | Seat Ring | A276420 | A276304 | A276304(L) | A276316(L) |
3 | Wedge | A182F430&410 | A182F304 | A182F304(L) | A182F316(L) |
4 | Stem | A182F6 | A182F304 | A182F304(L) | A182F316(L) |
5 | Gasket | Corrugated SS+graphite | SS+PTFE | ||
6 | Bonnet | A105 | A276f304 | A276F304(L) | A276F316(L) |
7 | Bonnet Bolt | A193B7 | A193B16 | A193B8 | A193B8M |
8 | Pin | A276420 | A276 304 | ||
9 | Gland | A276410 | A182F304(L) | A182F316(L) | |
10 | Gland Eyebole | A193B7 | A193B16 | A193B8 | A193B8M |
11 | Gland Flange | A105 | A182F11 | A182F304(L) | A182F316(L) |
12 | Gland Nut | A1942H | A1944 | A1948 | A1948M |
13 | Yoke Nut | A276420 | |||
14 | H.W.Lock Nut | A1942H | A1944 | A1948 | A1948M |
15 | Nameplate | SS | |||
16 | Hand wheel | A197 | |||
17 | Bearing Gasket | A473431 |
| ||
18 | Stem Packing | Flexible | PTFE | ||
Suitable Medium | W.O.G.etc | W.O.G.etc | HNO 3 ,CH 3 OOH etc | ||
Suitable Temperature | 29~425 degrees Celsius | 29~550 degrees Celsius | 29~200 degrees Celsius | ||
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
