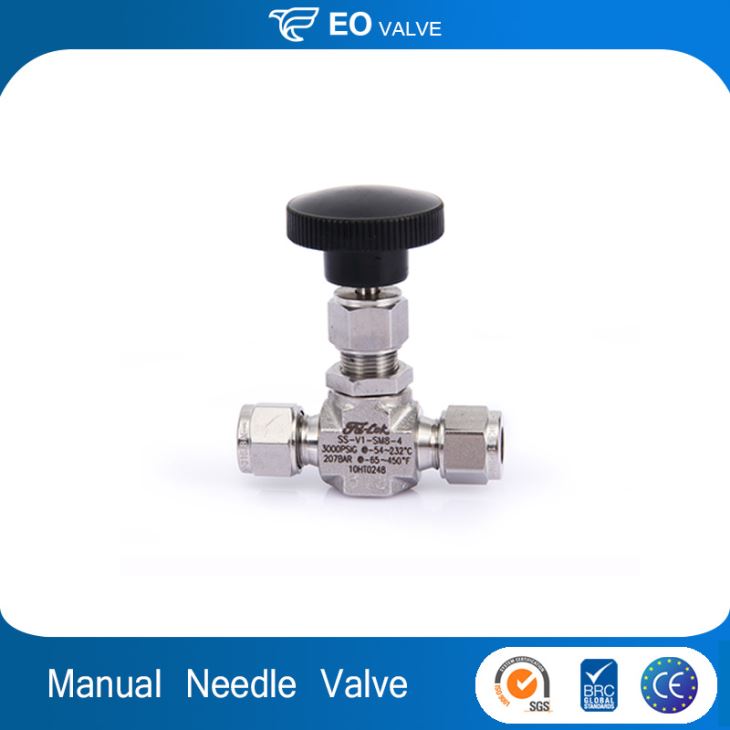

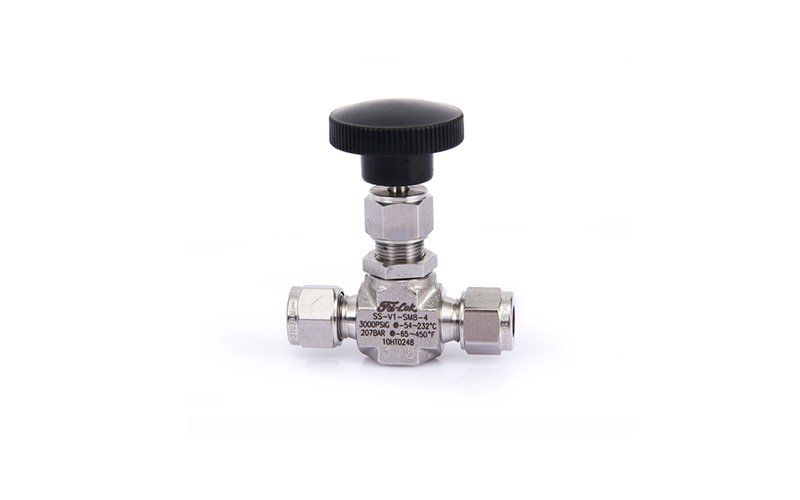

Stainless Steel High Pressure Panel Needle Valve
Stainless Steel High Pressure Panel Needle Valve;Pressure:High Pressure,Material:Stainless Steel,Media:Oil,Place of Origin:hina (Mainland),Brand Name:EO.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Needle |
| Pressure: | High Pressure |
| Power: | Manual |
| Material: | Stainless Steel |
| Temperature of Media: | High Temperature |
| Media: | Oil |
| Port Size: | 1/8"~2" |
| Place of Origin: | China (Mainland) |
| Model Number: | V1 series |
| Brand Name: | EO |
| Application: | General |
| Connection: | Thread, Weld or Tube End |

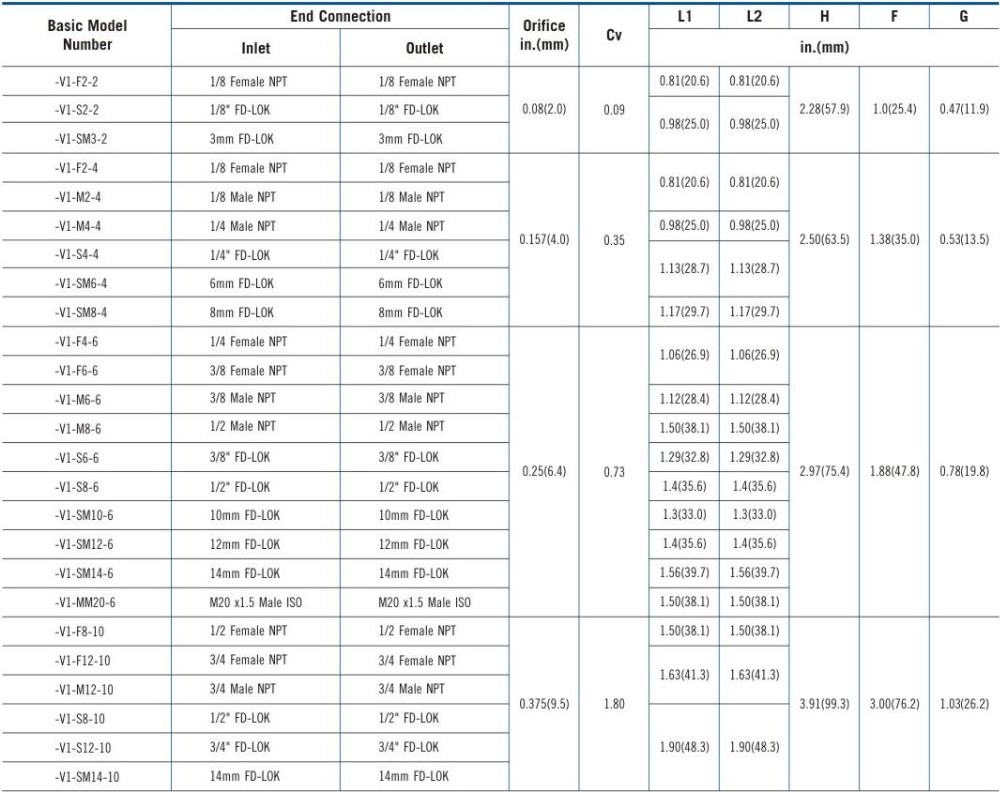

| Orifice: | 0.08~0.375 in. (2.0~9.5 mm) |
| Flow Pattern: | Straight/ Angle |
| Product name: | needle valve |
| Type: | 2-way needle valve |
| Body material: | Stainless Steel |
| Certificate: | ISO9001:2008 CE |
| Name: | needle valves |
| Medium: | Water Oil Gas |
| Needle Valve Type: | General Purpose |
| Product Description | |
| Name | Stainless Steel 5000 Psi High Pressure Panel Mounted 1/4inch Needle Valve |
| Material | Stainless steel, Monel 400, Inconel 625 and other special materials |
| Technics | Forged |
| Connection | Male/Female NPT, G, R, BSPP, BSPT, ISO, Weld, double ferrule |
Features:

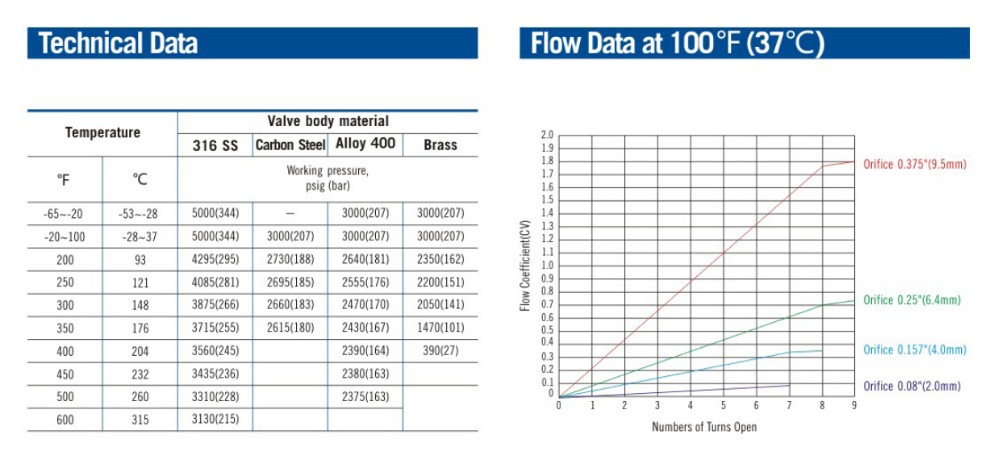

1. Pressure:
Stainless Steel: up to 5000 psig (345 bar)
Steel: up to 3000psig (207 bar)
Brass: up to 3000 psig (207 bar)
2. Temperature:
PTFE Packing: -65 °F to 450 °F ( -54 °C to 232 °C)
PEEK Packing: -65 °F to 600 °F ( -54 °C to 315 °C)
Graphite Packing: -65 °F to 1200 °F ( -54 °C to 649 °C )
3. End Connection: NPT, BSPT, Socket Weld, Butt Weld, Tube Fitting.
4. Size: 1/8" to 2"

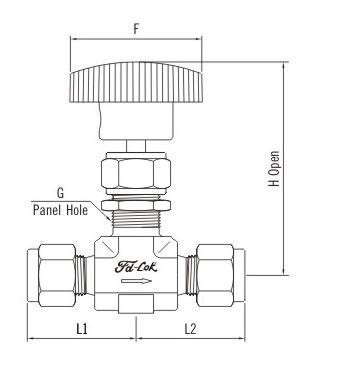

5. Panel mounting on request.
6. All Valves are 100% factory tested.
