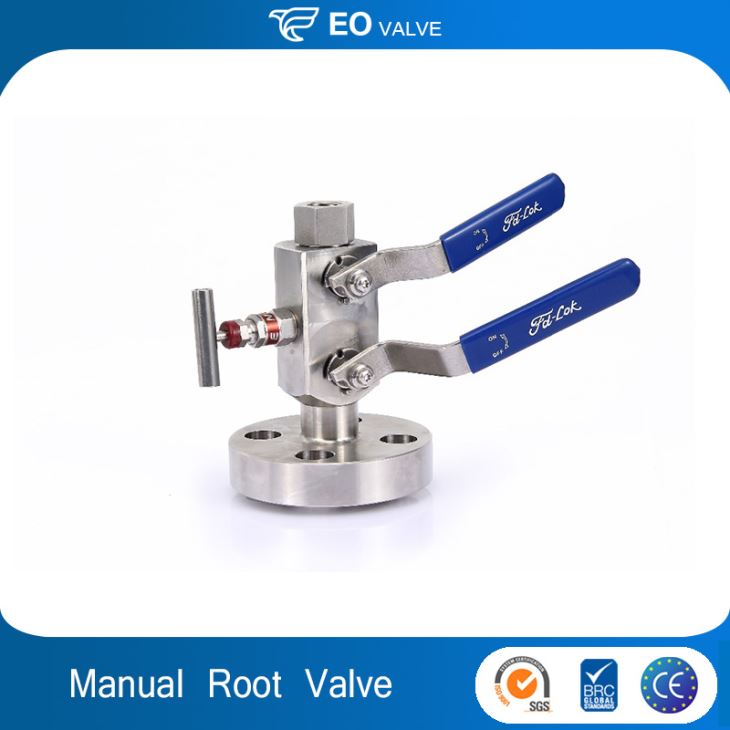

Stainless Steel Block And Bleed Valves Gauge Root Valve
Stainless Steel Block and Bleed Valves Gauge Root Valve;Material:Stainless Steel,Media:Base,Place of Origin:China (Mainland),Brand Name:EO.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Needle |
| Pressure: | High Pressure |
| Power: | Manual |
| Material: | Stainless Steel |
| Temperature of Media: | High Temperature |
| Media: | Base |
| Port Size: | 1/2"~2" |
| Place of Origin: | China (Mainland) |
| Model Number: | DBB |
| Brand Name: | EO |
| Application: | General |
| Connection: | Flange |
| Body material: | SS316 |
| Working Temperatures: | up to 454℃ |
| Working Pressure: | 150~2500 Class |
| Packing: | PTFE/PTFE/Graphite |
| OEM service: | Available |
Features:
1. One piece forged body, minimize potential leak point.
2.Pipe and instrument valves in one design.
3.Weight, space and cost saving over traditional designs.
4.Blowout-proof valve stem and needles
5.Complete traceability of materials.

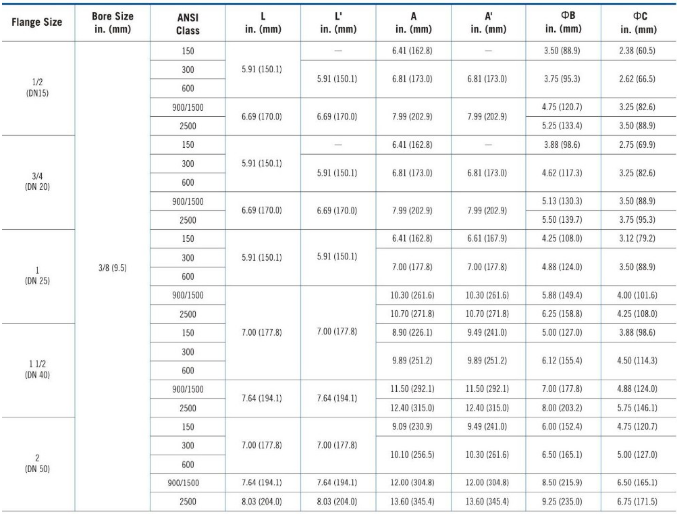

Specification:
1. Size: from 1/2" to 2" (DN15 ~ DN50).
2.Working Pressure: up to 150 ~2500 Class.
3.Working Temperature: up to 454 ℃
Quality Assurance: Within one year after buying our products, if any quality problem that verified to be our responsibility, we will replace the defective products!
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
