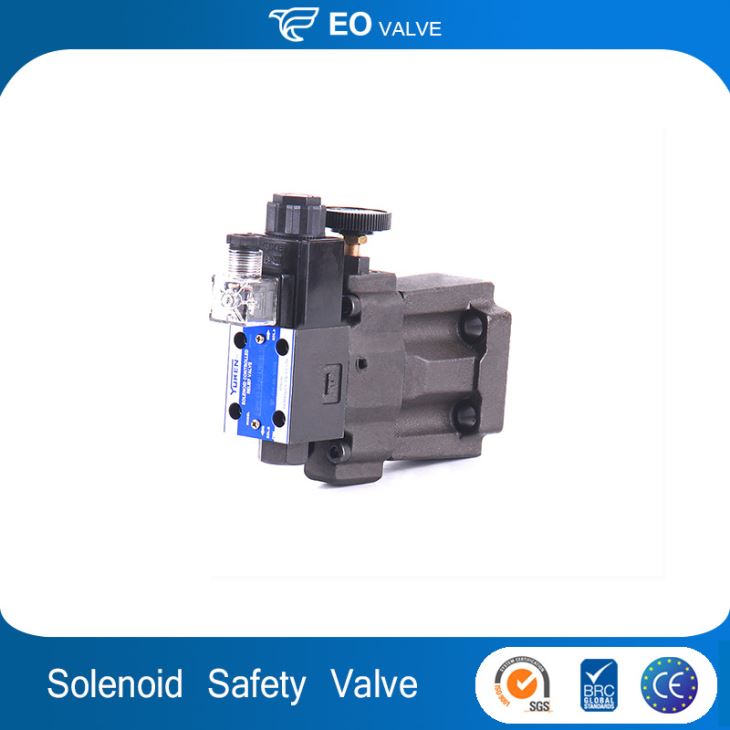

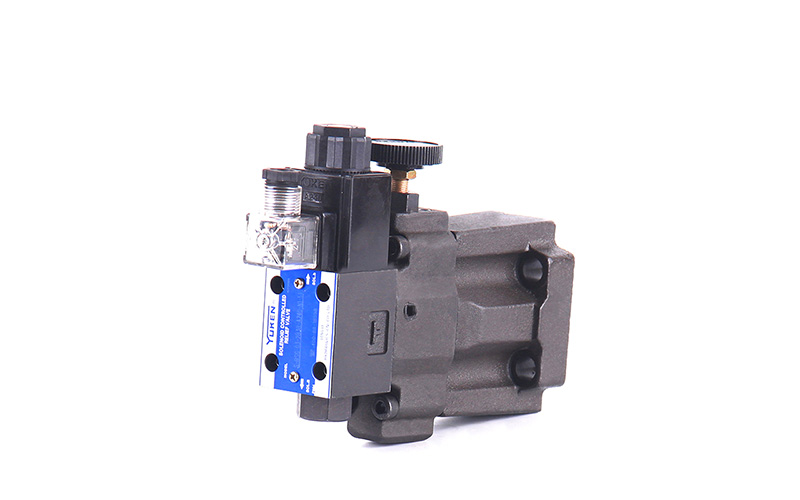

Adjustable Mechanical Solenoid Pressure Control Safety Relief Valve

Adjustable Mechanical Solenoid Pressure Control Safety Relief Valve

These valves are a combination of a pilot operated relief valve and a solenoid operated directional valve. Piping between the two is eliminated as the solenoid valve is directly mounted on the relief valve and connected with the relief valve vent. Pump pressure may be unloaded remotely by an electrical signal to the solenoid, or by connecting pilot relief valves to the solenoid valve ports.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Safety
Pressure:High Pressure
Power:Hydraulic
Material:Casting
Temperature of Media:Normal Temperature
Media:Oil
Port Size:Standard
Place of Origin:China (Mainland)
Model Number:SBSG03
Brand Name:EO
Application:General
Product name:SBSG03 mechanical solenoid pressure control safety relief valve
Certificate:ISO9001
Max pressure:250bar
Max flow:100lpm
Color:Customer's Request
Body material:Cast Steel
Type:Yuken
Place of origin:Shandong
Temperature range:-30~+80℃
Weight:6.3kg



Features:

These valves are a combination of a pilot operated relief valve and a solenoid operated directional valve. Piping between the two is eliminated as the solenoid valve is directly mounted on the relief valve and connected with the relief valve vent. Pump pressure may be unloaded remotely by an electrical signal to the solenoid, or by connecting pilot relief valves to the solenoid valve ports.
