Gas Station Equipments Emergency Shut Off Valve

Gas Station Equipments Emergency Shut Off Valve

Gas Station Equipments Emergency Shut Off Valve;Media:Oil,Port Size:1-1/2'' / 2'',​Brand Name:EO,Application:Gas Station,Poppet Configuration:Single/Double.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Shutoff
Pressure:Low Pressure
Power:Hydraulic
Material:Casting
Temperature of Media:Normal Temperature
Media:Oil
Port Size:1-1/2'' / 2''
Place of Origin:China (Mainland)
Brand Name:EO
Application:Gas Station
Outlet Thread:1-1/2", NPT/BSP
Poppet Configuration:Single/Double
Body:Cast Iron
Seals:Buna-N



Product Description

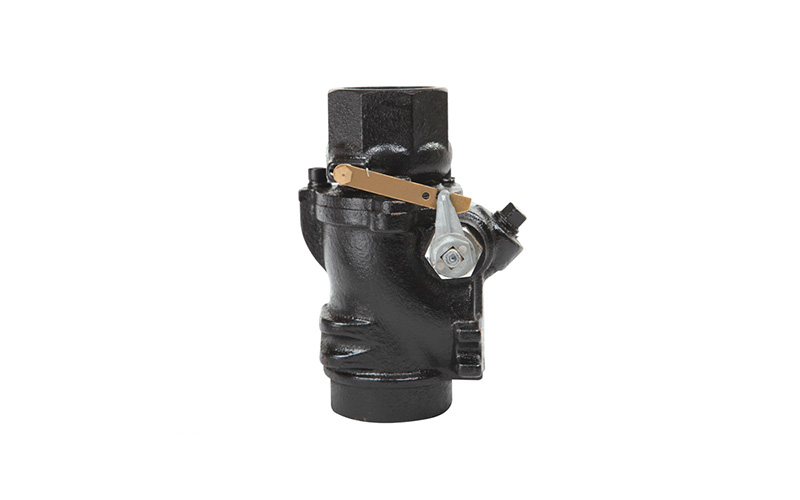

Emergency Shut-off Valves are installed on fuel supply lines beneath dispensers at grade-level to minimize hazards associated with collision or fire at the dispenser. If the dispenser is pulled over or dislodged by collision, the top of the valve breaks off at the integral shear groove, activating poppets and shutting off the flow of fuel. Single-poppet models shut off supply flow.Double-poppet models shut off supply as well as prevent release of fuel from the dispenser’s internal piping.



Features:

Ø Can be manually shut-off-Valve closing speed: 0.5s

Ø Unique black Durable coating- Nickel plated.

Ø U-Bolt retainer or stabilizer mount.

Ø Fire Protection- a fusible link trips the valve closed at 75° C to shut off fuel.

Ø Built-in air test port.

Ø For gasoline, diesel and kerosene.
