2 Inch Y Strainer 2 Inch Strainer
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 2 inch strainer manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading China 2 inch strainer...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 2 inch strainer manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 2 inch strainer manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

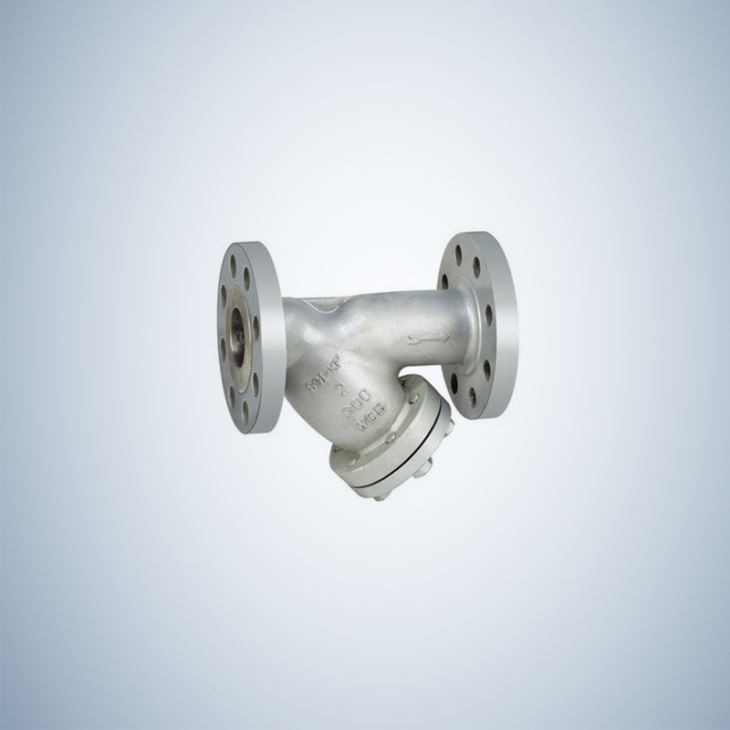

Factory Supplied Cast Steel 2 Inch Y-Strainer.
Product Specifications :
Standards:
1. DESIGN AND MANUFACTURE: | ASME B16.34 |
2. FACE TO FACE DIMENSIONS: | ASME B16.10(CHECK VALVE/GLOBE VALVE) OR MANUFACTURER’S SPECIAFICATION |
3. FLANGE ENDS DIMENSIONS: NPS1/2”-24” NPS26”~36” |
ASME B16.5 ASME B16.47 |
4. BW ENDS DIMENSIONS: | ASME B16.25 |
5. SOCKET WELD ENDS DIMENSIONS: | ASME B16.11 |
6. PRESSURE-TEMPERATURE RATINGS: | ASME B16.34 |
7. PRESSURE: | CLASS 150~1500 |
8. SIZE: | NPS 2”~36” |
MATERIAL LIST:
ITEM | PART NAME | STANDARD | STAINLESS STEEL |
1 | BODY | A216 WCB | A351 CF8M |
2 | BONNET | A216 WCB | A351 CF8M |
3 | GASKET | SS304/SS316+APHITE/PIFE | |
4 | SCREEN | SS304/SS316 | SS316 |
5 | PLUG | AISI 1025 | SS316 |
6 | BOLT | A193 B7/B7M | A193 B8M |
7 | NUT | A194 2H/2HM | A194 8M |
NOTE: OTHER METERIALS ARE AVALIABLE UPON REQUEST

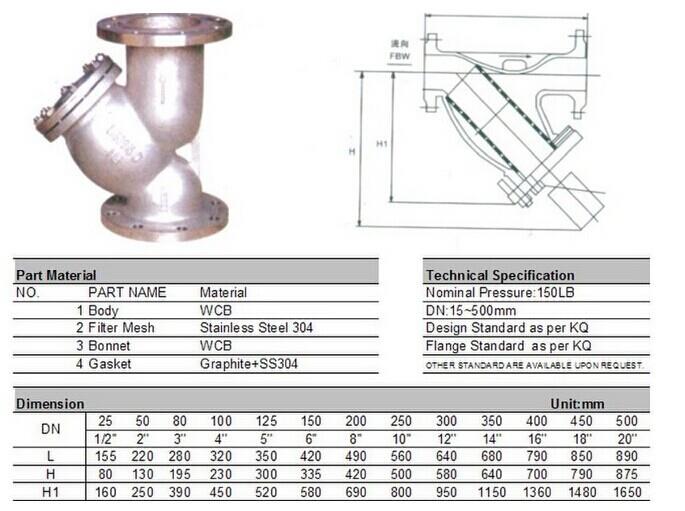

Technical Drawing:
Our Advantage:
1). Scale: 82,000.00 square meters non-dust workshop
2). The foundry is built to promise our raw material better before production.
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
5). Strict QC system is set up for the superior quality guarantee.
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
