Products Details :

Shenyang EO Valve Co.,Ltd is a leading China forged check valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Forged steel Swing check Valve threaded ends,Manufactured By Professional Valve...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China forged check valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

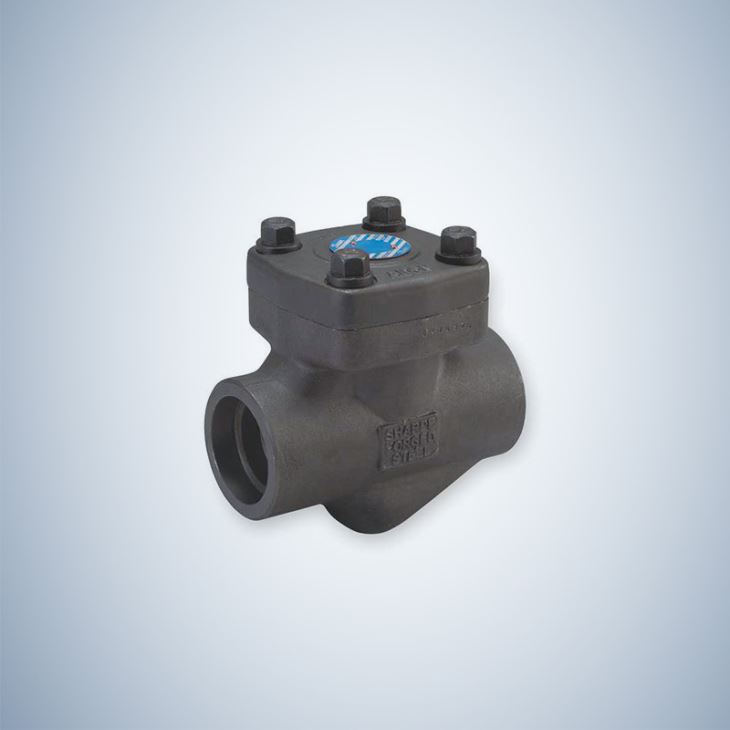

Forged Steel Swing Check Valve Threaded Ends,Manufactured By Professional Valve

Product Specifications :

STANDARDS:

1. DESIGN AND MANUFACTURE:

BS 5352/API 602

2. FACE TO FACE DIMENSIONS:

ASME B16.10 OR MANUFACTURER’S SPECIFICATION

3. FLANGE ENDS DIMENSIONS:

NPS1/2”-2”

ASME B16.5

4. BW ENDS DIMENSIONS:

ASME B16.25

5.SOCKET WELD ENDS DIMENSIONS:

ASME B16.11

6.THREADED ENDS DIMENSIONS:

ASME B1.20.1

7. PRESSURE-TEMPERATURE RATINGS:

ASME B16.34

8. NORMAL PRESSURE:

CLASS 150~1500

9. NORMAL DIAMETER:

NPS 1/2″~2″


DESIGN FEATURES:

1.BOLTED COVER OR WELDED COVER DESIGN

2.SWING DISC: DISC IS FASTENED SECURELY TO DISC HANGER WITH A LOCK NUT AND COPTER PIN

3.EXPANDED SEAT

4.SPIRAL WOUND GASKET


MATERIAL LIST:

ITEM

PART NAME

STANDARD

ALLOY CARBON STEEL

STAINLESS STEEL

1

BODY

A105

A350 LF2

A182 F316

2

SEAT

A105

A350 LF2

A182 F316

3

DISC

A105

A350 LF2

A182 F316

4

DISC NUT

CARBON STEEL

STAINLESS STEEL

316 SS

5

HINGE

A105

A350 LF2

A182 F316

6

HINGE PIN

A276 410

A276 304

A276 316

7

GASKET

304SS/316SS SPIRAL WOUND/SOLID 304SS

8

COVER

A105

A350 LF2

A182 F316

9

BOLT

A193 B7/B7M

A320 L7/L7M

A193 B8M

NOTE:OTHER METERIALS ARE AVALIABLE UPON REQUEST


PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
