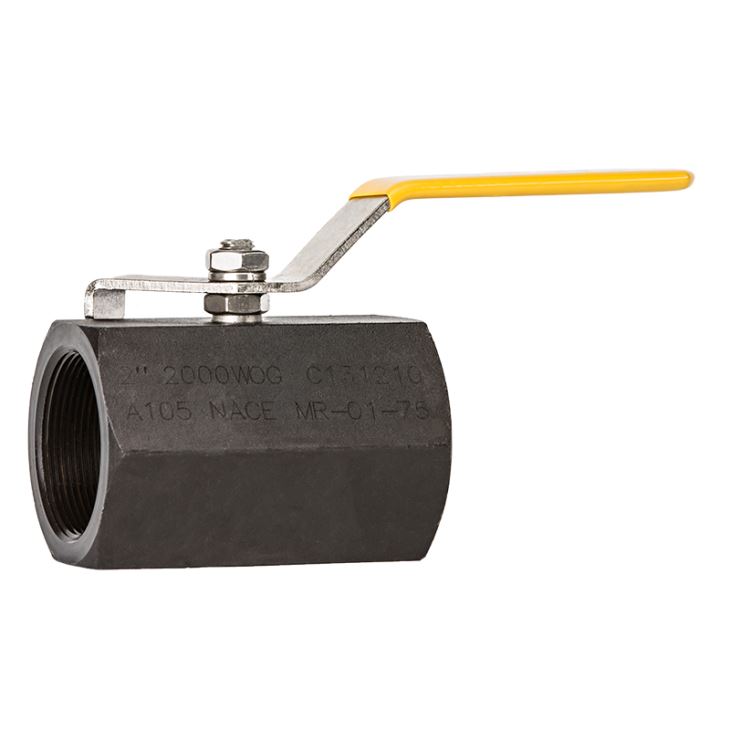

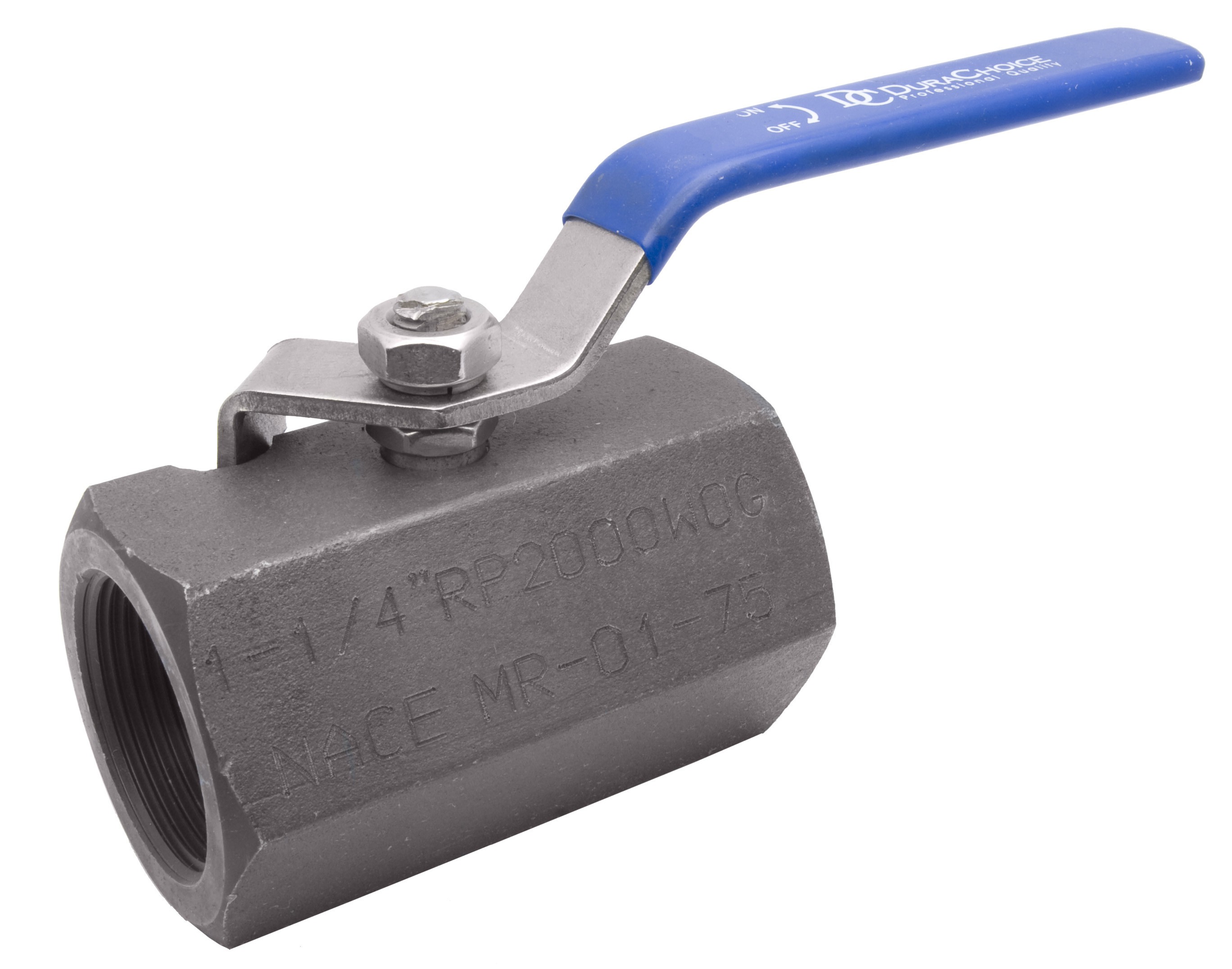

1 PC Bar Stock Ball Valve

1 PC Bar Stock Ball Valve

Products D escription : 1 PC Reduced Bore Ball Valves are widely used in industrial applications because they are very versatile and easy to maintain and operate. 1 PC Reduced Bore Ball Valve Female thread is designed to reduce holes. The valve body is made of investment casting, and the valve...

Send Inquiry

Products Description :

1 PC Reduced Bore Ball Valves are widely used in industrial applications because they are very versatile and easy to maintain and operate.

1 PC Reduced Bore Ball Valve Female thread is designed to reduce holes. The valve body is made of investment casting, and the valve has the function of preventing and blowing. The ball seat material is reinforced PTFE (R-PTFE) with excellent chemical resistance and improves cycle life. Locking devices are optional for safe operation. Applied to pipeline, industrial plant, food industry, process equipment and Department of Justice industrial plant isolation application.

1 PC Reduced Bore Ball Valve features:

1. Investment Castings for body and cap

2. Internal Entry Blow-Out Proof Stem

3. Pressure Rating: 1000PSI (PN63)

4. Thread End: ANSI B2.1, BS21, ISO7/1

5. Working Temperature: -25℃ ~ +180℃

6. Material: CF8M, CF8, CF3M, WCB

7. Inspection Testing: API 598, EN 12266



1 PC Reduced Bore Ball Valve Material List


Main Parts and Materials


1

Body

A105/F316/F304

7

Thrust Washer

RTFE

2

Cap

A105/F316/F304

8

Packing Gland

SS316/SS304

3

Seat

RTFE

9

Nut

SS/SS316/SS304

4

Ball

ASTM A351-CF8M(316)

10

Handle

SS

5

Stem

A105/F316/F304

11

Handle Cover

Plastic

6

Packing

PTFE

12

Gasket

RTFE

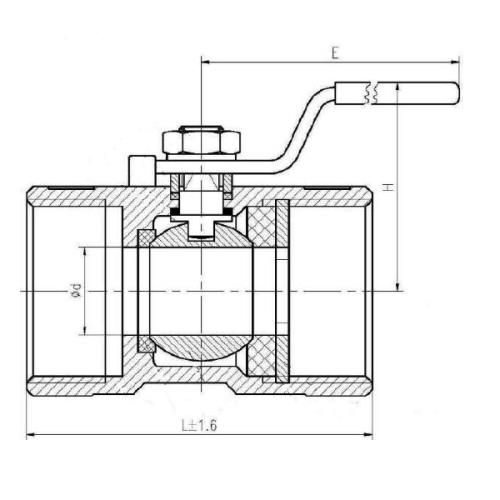

Main Dimensions

NPS

DN

d

D

L

H

W

Weight(kg)

1/4"

8

5

21

43

34

70

0.11

3/8"

10

7

25

47

37

70

0.18

1/2"

15

9

30

62.5

60

120

0.34

3/4"

20

12.5

36

70

64

120

0.54

1"

25

16

46

86

66

123

0.95

11/4"

32

20

55

94

78

145

1.4

11/2"

40

24.5

61

102

84

150

1.7

2"

50

32

75

115

91

150

2.78



PACKAGING & DELIVERY :

Packaging details :   electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details   :   4-5 weeks after receipt of down payment by T/T

Payment           T/T, L/C, Western Union and PayPal
