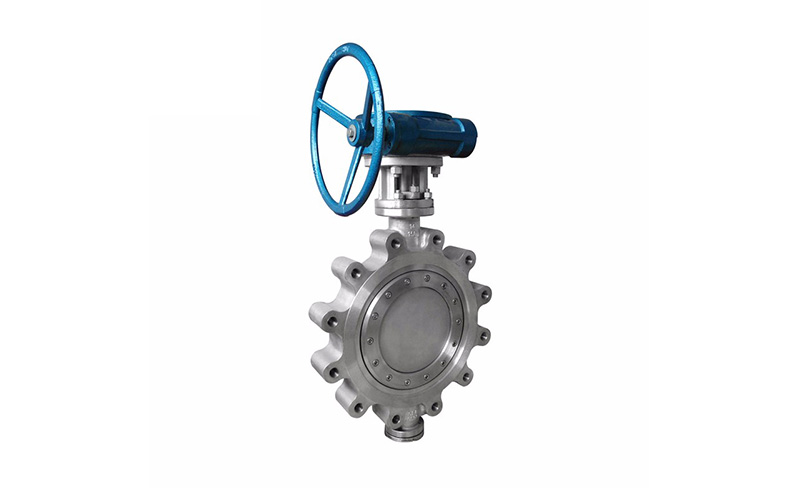

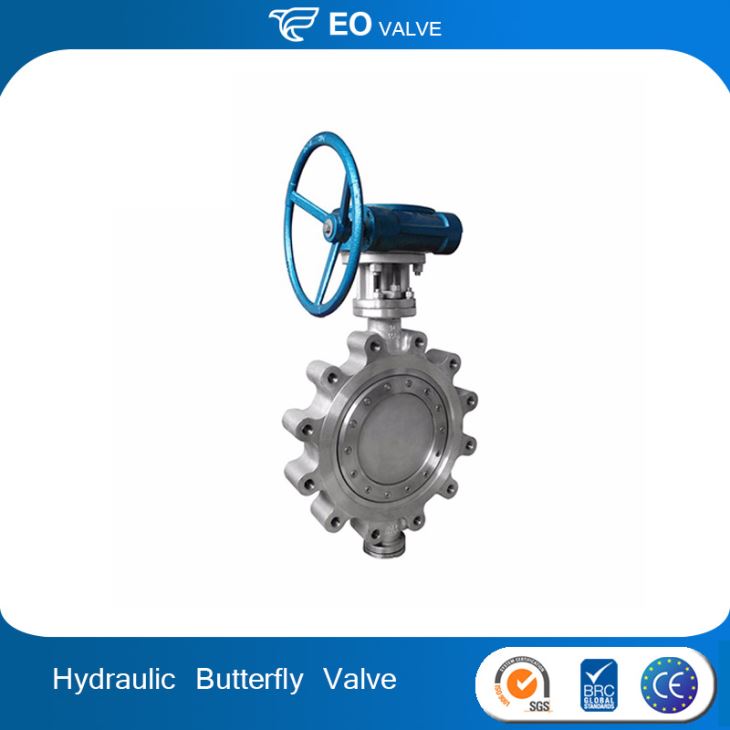

Butterfly Valve Stainless Wafer Type Hydraulic Butterfly Valve
Butterfly Valve Stainless Wafer Type Hydraulic Butterfly Valve;Working,Temperature:-20°C to 110°C EPDM Seat-10°C to 80°C NBR Seat,Suitable Media: Water,Oil & Gas.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Butterfly |
| Pressure: | Medium Pressure |
| Power: | Manual |
| Material: | Casting |
| Temperature of Media: | Medium Temperature |
| Media: | Water |
| Port Size: | customized |
| Place of Origin: | China (Mainland) |
| Model Number: | D341- 16Q |
| Brand Name: | EO |
| Application: | General |
| Product name: | China supplier high quality bare shaft dn200 butterfly valve |

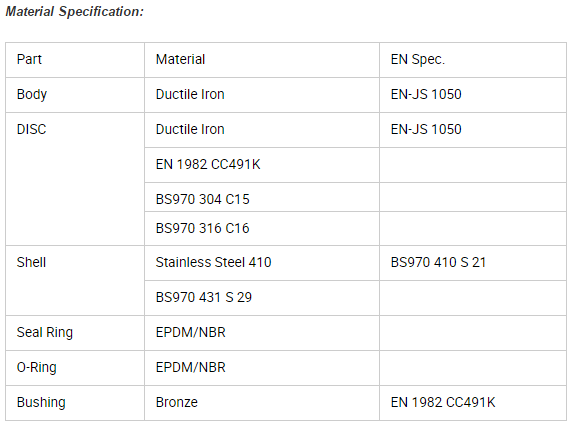

| shell: | stainless steel410/ stainless steel 431 |
| bushing: | Bronze |
| Operation: | handle lever, handle wheel, worm gear |
| Connection: | flange, wafer |
| Port size: | DN50- DN450 |
| Body: | ductile iron |
| O-ring: | NBR/ EPDM |
| seal ring: | EPDM/NBR |
| Stem: | 2Cr13 |
Valve Standard:
Comply with ISO 5752/BS 5155/BS EN 593
Pressure Temperature Ratings
Work Pressure: 16 bar
Testing Pressure:Shell 24 bar
Seat: 17.6 bar
Working Temperature:-20°C to 110°C EPDM Seat-10°C to 80°C NBR Seat
Suitable Media: Water,Oil & Gas
