Products Details :

Shenyang EO Valve Co.,Ltd is a leading China 2-inch-cast-steel-floating-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 2 INCH LEVER OPERATE CAST STEEL FLOATING BALL VALVE Ball valves are...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China 2-inch-cast-steel-floating-ball-valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

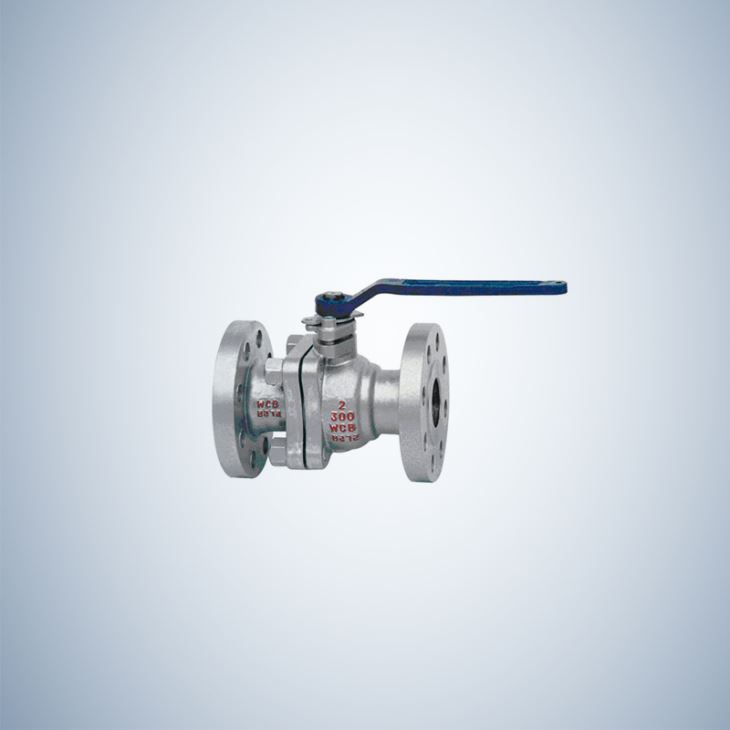

2 INCH LEVER OPERATE CAST STEEL FLOATING BALL VALVE

Ball valves are best used for fast-acting stop/start applications. They are considered quick-acting because they only require a 90° turn of the handle to operate the valve. The quarter turn minimizes valve operation time and decreases the possibility of leakage due to wear. Ball valves are available in a floating ball design and trunnion mounted design. They are widely used in petroleum refining, long-distance pipelines, chemical, paper making, water conservation, electric power, steel industry and other industries.

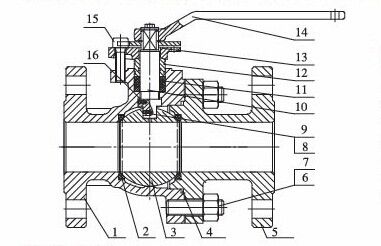

MATERIAL LIST

ITEM

PART NAME

MATERIAL

1

BODY

A216 WCB

2

STEM RING

SS+GRAPHITE/PTFE

3

PIN

A276 410

4

DISC

A216 WCB

5

SCREW

CARBON STEEL

6

SEAT GLAND

CARBON STEEL

7

STEM

A182 F6A

8

PACKING

GRAPHITE/PTFE

9

GLAND FLANGE

A216 WCB

10

YOKE

A216 WCB

11

GLAND NUT

A194 2H

12

EYEBOLT

A193 B7

13

COVER BOLT

A193 B7

14

GASKET

SS304/SS316+GRAPHITE

15

SPLINT COLLAR

CARBON STEEL

16

COVER

A216 WCB

17

YOKE BOLT

A193 B7

18

YOKE NUT

A194 2H

19

BOLT

CARBON STEEL

20

GEAR

ASSEMBLY



Product Specifications :

ADVANTAGE :

1.Professional: We are professional manufacturer of valves.Ensure our valves is quality controlled and reliable.

2. Quality Control: We have been engaged in valve design for many years and can guarantee best quality

3. Experienced Sales Team: Our sales team is experienced, and they all know our product well.

About Price: we provide very reasonable and competitive price for you



STANDARD :

1. DESIGN AND MANUFACTURE:  BS 5351/ API 608/API 6D / ASME B16.34

2. FACE TO FACE DIMENSIONS:  ASME B16.10/API 6D

3. FLANGE ENDS DIMENSIONS (NPS1/2”-24”): ASME B16.5

4. BW ENDS DIMENSIONS:  ASME B16.25

5. PRESSURE-TEMPERATURE RATINGS: ASME B16.34

6. FIRE SAFE DESIGN:  API 607 / API 6FA

7. NORMAL PRESSURE:  CLASS 150-1500

8. NORMAL DIAMETER:  NPS 2″ ~ 10″


DESIGN FEATURES :

1. FULL PORT DESIGN/REDUCED PORT DESIGN

2. 2 PIECE BOLTED BODY

3. FLOATING BALL TYPE

4. BLOW-OUT PROOF STEM

5. FIRE SAFE DESIGN

6. ANTI-STATIC DEVICE

7. ISO 5211 DIRECT MOUNTING TYPE

8. WITH LOCKING DEVICE


PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal



FAQ :

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.
