2 Piece Cast Steel Floating Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 2-piece-cast-steel-floating-ball-valve- manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 2 PIECE CAST STEEL FLOATING BALL VALVE Ball valves are best used......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 2-piece-cast-steel-floating-ball-valve- manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 2 PIECE CAST STEEL FLOATING BALL VALVE Ball valves are best used...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 2-piece-cast-steel-floating-ball-valve- manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

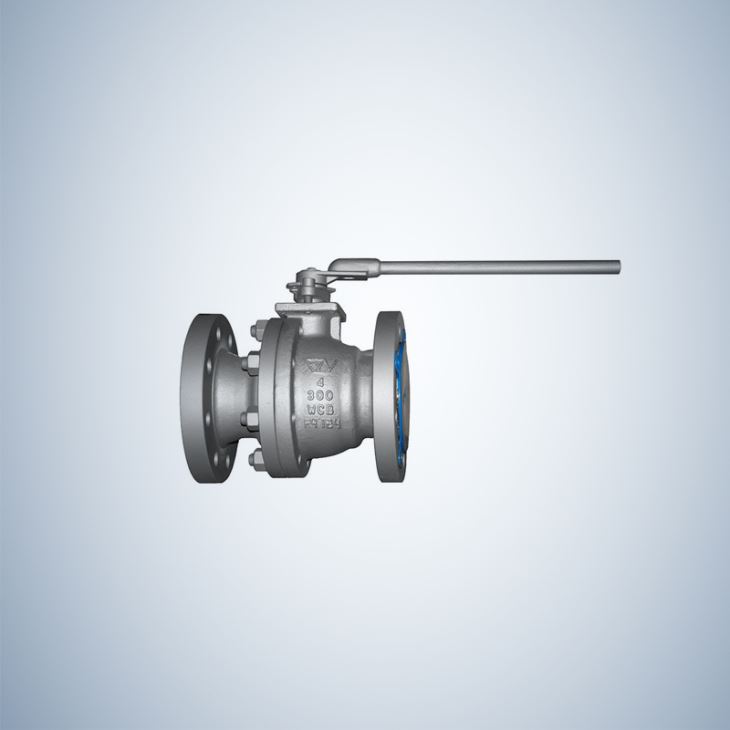

2 PIECE CAST STEEL FLOATING BALL VALVE
Ball valves are best used for fast-acting stop/start applications. They are considered quick-acting because they only require a 90° turn of the handle to operate the valve. The quarter turn minimizes valve operation time and decreases the possibility of leakage due to wear. Ball valves are available in a floating ball design and trunnion mounted design. They are widely used in petroleum refining, long-distance pipelines, chemical, paper making, water conservation, electric power, steel industry and other industries.

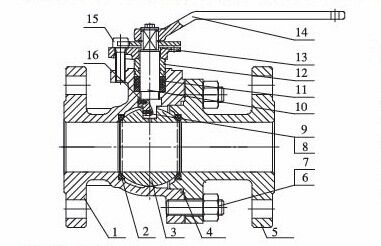

MATERIAL LIST
ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | STEM RING | SS+GRAPHITE/PTFE |
3 | PIN | A276 410 |
4 | DISC | A216 WCB |
5 | SCREW | CARBON STEEL |
6 | SEAT GLAND | CARBON STEEL |
7 | STEM | A182 F6A |
8 | PACKING | GRAPHITE/PTFE |
9 | GLAND FLANGE | A216 WCB |
10 | YOKE | A216 WCB |
11 | GLAND NUT | A194 2H |
12 | EYEBOLT | A193 B7 |
13 | COVER BOLT | A193 B7 |
14 | GASKET | SS304/SS316+GRAPHITE |
15 | SPLINT COLLAR | CARBON STEEL |
16 | COVER | A216 WCB |
17 | YOKE BOLT | A193 B7 |
18 | YOKE NUT | A194 2H |
19 | BOLT | CARBON STEEL |
20 | GEAR | ASSEMBLY |
Product Specifications :
STANDARD
1. DESIGN AND MANUFACTURE: BS 5351 / API 608 / API 6D / ASME B16.34
2. FACE TO FACE DIMENSIONS: ASME B16.10/API 6D
3. FLANGE ENDS DIMENSIONS (NPS1/2”-24”): ASME B16.5
4. BW ENDS DIMENSIONS: ASME B16.25
5. PRESSURE-TEMPERATURE RATINGS: ASME B16.34
6. FIRE SAFE DESIGN: API 607/ API 6FA
7. NORMAL PRESSURE: CLASS 150-1500
8. NORMAL DIAMETER: NPS 2″ ~ 10″
DESIGN FEATURES :
1. FULL PORT DESIGN/REDUCED PORT DESIGN
2. 2 PIECE BOLTED BODY
3. FLOATING BALL TYPE
4. BLOW-OUT PROOF STEM
5. FIRE SAFE DESIGN
6. ANTI-STATIC DEVICE
7. ISO 5211 DIRECT MOUNTING TYPE
8. WITH LOCKING DEVICE
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
