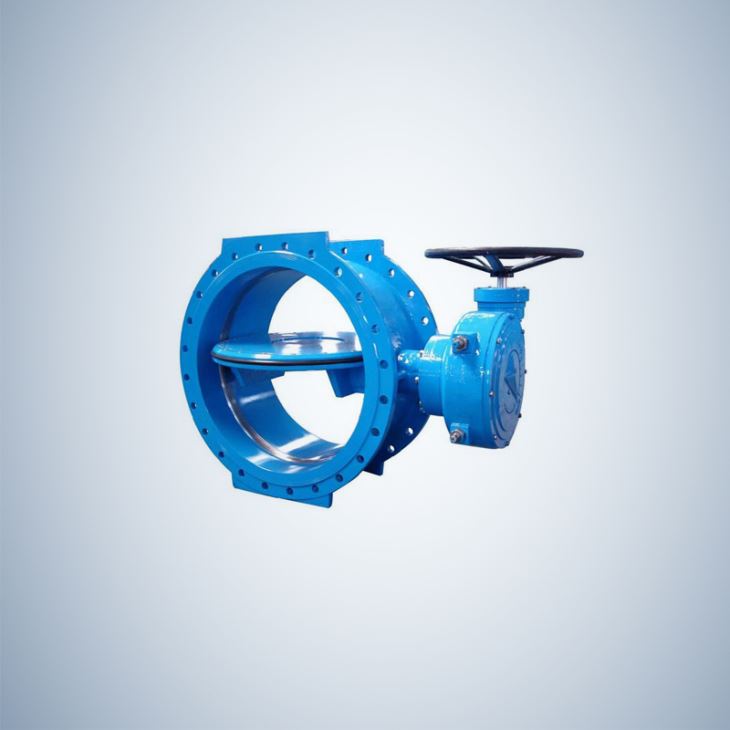

8 Inch Double Flange Double Offset Butterfly Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 8 inch double flange double offset butterfly valve, double flange butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 8 INCH DOUBLE FLANGE......
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 8 inch double flange double offset butterfly valve, double flange butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 8 INCH DOUBLE FLANGE...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 8 inch double flange double offset butterfly valve, double flange butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
8 INCH DOUBLE FLANGE DOUBLE OFFSET BUTTERFLY VALVE
ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | STEM | A182 F6 |
3 | SEAT | PTFE/RUBBER |
4 | PIN | A276 410 |
5 | DISC | A216 WCB |
6 | SCREW | CARBON STEEL |
7 | SEAT GLAND | CARBON STEEL |
8 | PACKING | GRAPHITE/PTFE |
9 | GLAND FLANGE | A216 WCB |
10 | YOKE | A216 WCB |
11 | GLAND NUT | A194 2H |
12 | EYEBOLT | A193 B7 |
13 | COVER BOLT | A193 B7 |
14 | GASKET | SS304/SS316+GRAPHITE |
15 | SPLINT COLLAR | CARBON STEEL |
16 | COVER | A216 WCB |
17 | YOKE BOLT | A193 B7 |
18 | YOKE NUT | A194 2H |
19 | BOLT | CARBON STEEL |
20 | GEAR | ASSEMBLY |
Product Specifications :
QUICK DETAILS
Model Number: double offset butterfly valve
Material:Casting
Port Size:2"-36"
Normal pressure:Class 150-class 300
End flange dimension:ASME B16.5
Face to face dimension:API 609
Inspection and test:API 598
Pressure-temp rating:ASME B16.34
Design & Manufacture:API 609
Temperature of Media:Medium Temperature
DESIGN FEATURES
1. Mufti-layer seats (fire safe and well used in high operating temperature)
2. Combination of metal and soft seats
3. Integral overlay seat or stainless steel seat
4. Good flow regulating function and sealing performance
5. The disc can move away from the seat fast when opening to reduce the friction. And prolong the valve life
6. Anti-blowout shaft and fire safe design
STANDARDS
1. DESIGN AND MANUFACTURE: API 609
2. FACE TO FACE DIMENSIONS: API 609
3. FLANGE ENDS DIMENSIONS: NPS1/2鈥潂24鈥? ASME B16.5
4. PRESSURE-TEMPEARTURE RATINGS:聽 ASME B16.34
5. PRESSURE: CLASS 150
6. SIZE: NPS 16?/span>
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
