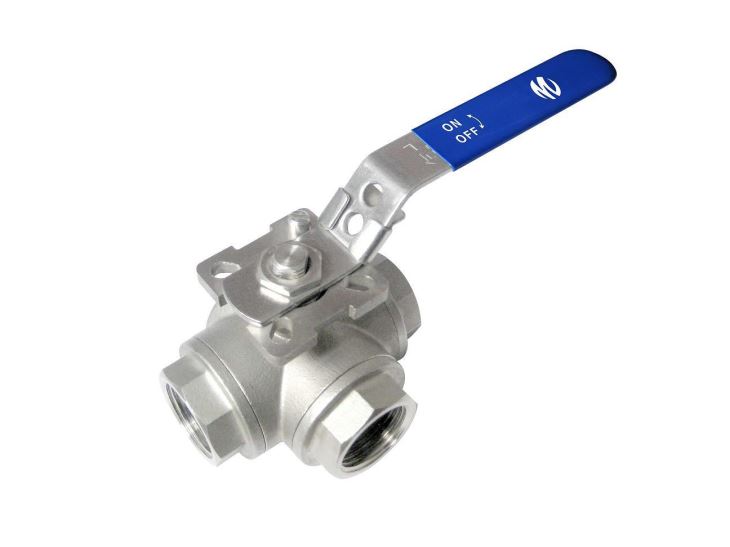

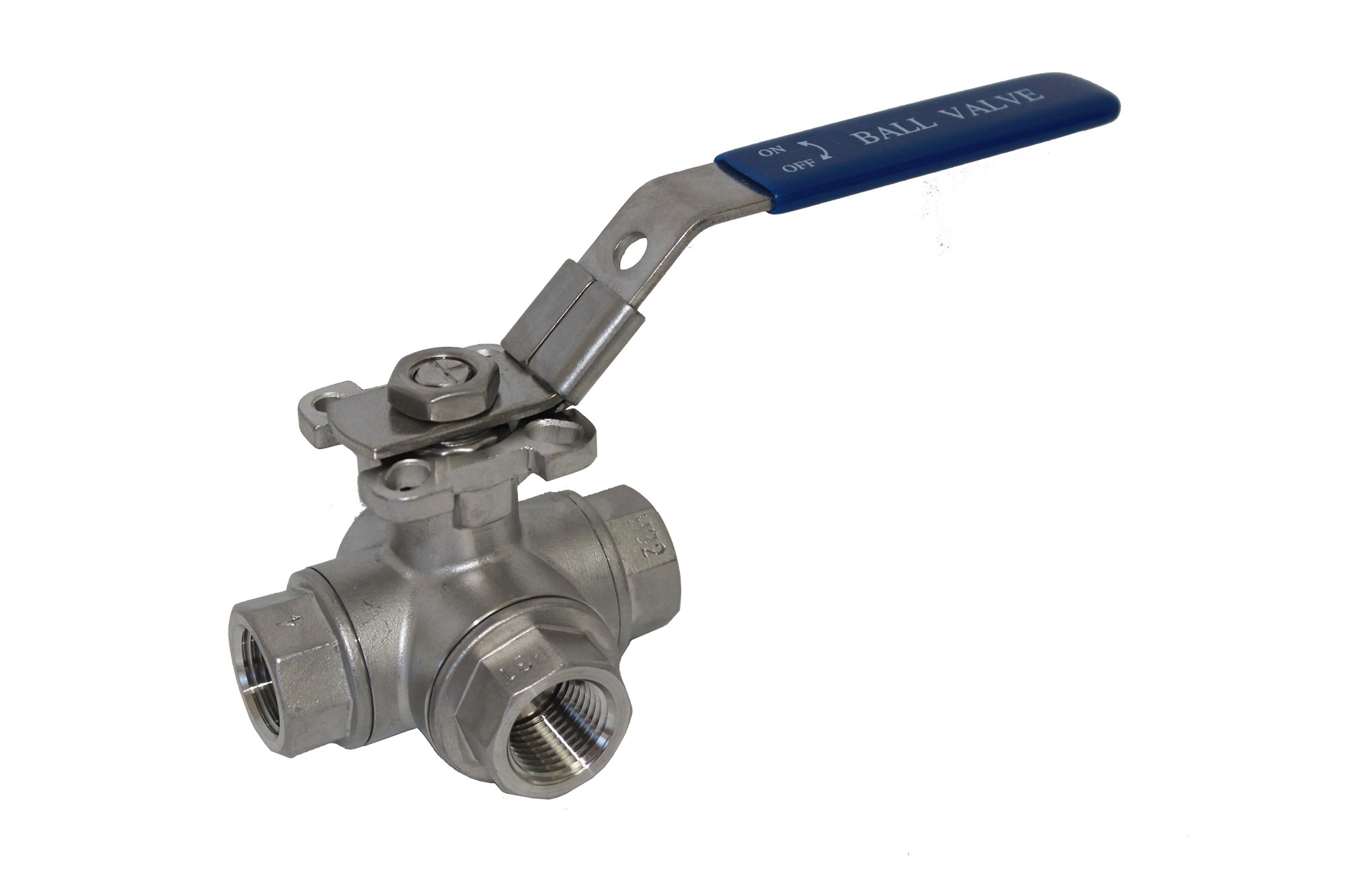

3 Way Ball Valve
Products D escription : 3 Way Ball Valves are widely used in industrial applications because they are very versatile and easy to maintain and operate.
Products Description :
The design of 3 way ball valve is such that it is constructed with a hole that goes right through the middle, and the hole is in the shape of a T or an L. Ports of any pair can be connected in the T-valve, or alternatively, all three together. However, the position at 45 degrees that may disconnects all the ports would leave no tolerance for error. Connection to the port in the center from either side port is possible with the L-valve, or alternatively it can disconnect all ports. However, connecting together to the side ports is not possible.
Material: Stainless Steel:
1) SS316 / ASTM A351-CF8M / DIN1.4408
2) SS304 / ASTM A351-CF8 / DIN1,4401
3) SS202 / ISO A-3
Thread: ASME B 1.20.1(NPT), BS 21(BSP), DIN 2999(PT)/259, ISO 228/1.
Size: 1/2", 3/4", 1", 11/4", 1.1/2", 2"
Design & Manufacture Std.: API608, ASME B16.34
Investment casting body & caps.
Bottom-loaded Blow-out proof stem
Working pressure: 1000PSI ( PN63 ) WOG
Locking Device available.
CE marking available.
Inspection Test: API 598.
Suitable media: water, oil, air and some corrosive liquids.
Package: in plastic bags then in cartons then on veneer pallets or as per customers requirement
PACKAGING & DELIVERY :
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
