2 Inch 3 Piece Bolted Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China 2 inch 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 2 INCH THREE PIECE BOLTED BALL VALVE Feature Size:... Products D escription :...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China 2 inch 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 2 INCH THREE PIECE BOLTED BALL VALVE Feature Size:...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China 2 inch 3 piece bolted ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

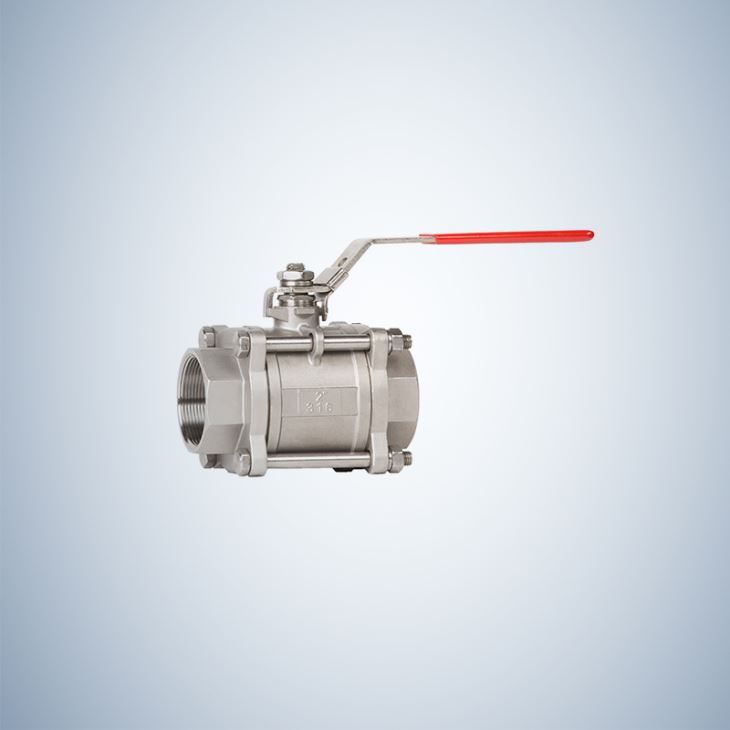

2 INCH THREE PIECE BOLTED BALL VALVE
Product Specifications :
Feature
Size:1/4"~4"(1000PSI/PN63)
Full Bore
Investment Casting
Blow-out Proof Stem
Adjustable stem packing
Pure Teflon seals and seats
Product Approved:PED97/23/EC(CE 0035)
Approved Casting Approved AD2000-W0
Thread:ASME B1.20.1 BS21.DIN2999/259
Inspection Testing: API598,EN12266

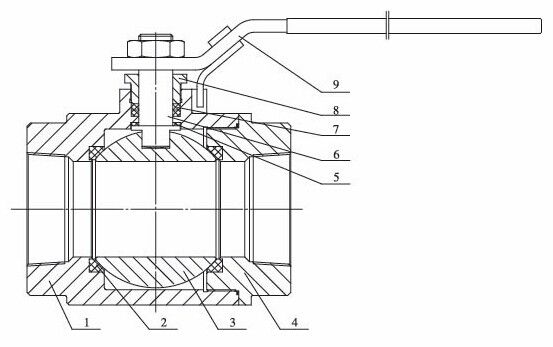

Material list of 3pc ball valve with mounting pad
ITEM | DESIGNATION | MATERIAL |
1 | PLASTIC COVER | PLASTIC |
2 | HANDLE | SUS304 |
3 | GLAND NUT | SUS304 |
4 | STEM NUT | SUS304 |
5 | THRUST WASHER | SUS304 |
6 | STEM PACKING | PTFE |
7 | THRUSTWASHER | PTFE |
8 | CAP | CF8/CF8M |
9 | BOLT | SUS304 |
10 | NUT | SUS304 |
11 | THRUST WASHER | SUS304 |
12 | BODY | CF8/CF8M |
13 | SEAT | RPTFE |
14 | BALL | CF8/CF8M |
15 | STEM | SUS304 |
16 | LOCKING | SUS304 |
Dimensions of 3pc ball valve with mounting pad
ITEM SIZE | 1/4" | 3/8" | 1/2" | 3/4" | 1" | 11/4" | 11/2" | 2" | 21/2" | 3" | 4" |
D | 12.5 | 12.5 | 15 | 20 | 25 | 32 | 38 | 50 | 65 | 76 | 94 |
H | 48 | 48 | 50 | 52 | 65 | 70 | 85 | 93 | 116 | 125 | 180 |
W | 105 | 105 | 105 | 126 | 144 | 144 | 189 | 189 | 224 | 224 | 251 |
L | 72 | 72 | 72 | 80 | 85 | 105 | 113 | 132 | 170 | 186 | 220 |
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
