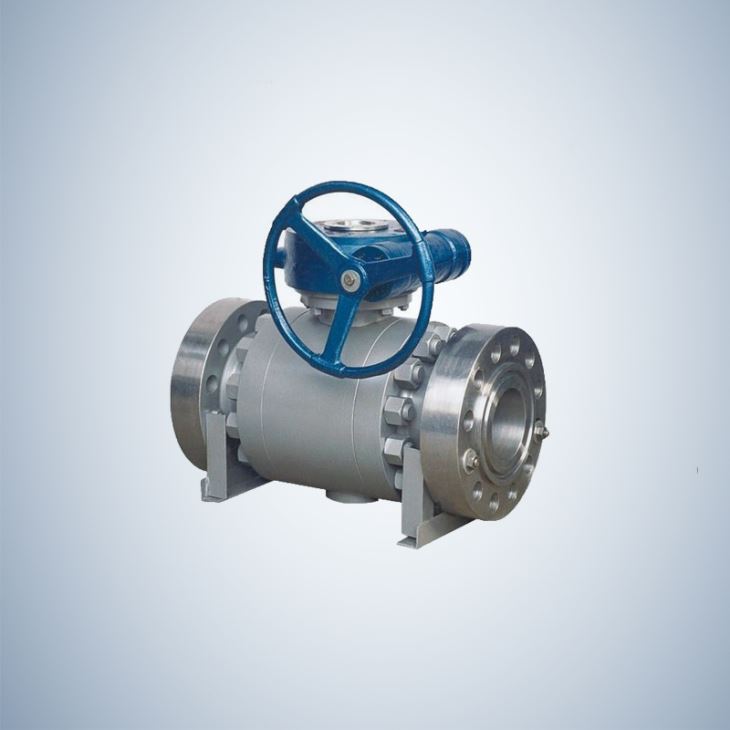

Split Body 3 Piece Flanged Type forged Steel Trunnion Ball Valve

Split Body 3 Piece Flanged Type forged Steel Trunnion Ball Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China split body 3 piece flanged type forged steel trunnion ball valve, electric ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Split body 3 PIECE......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China split body 3 piece flanged type forged steel trunnion ball valve, electric ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Split body 3 PIECE...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China split body 3 piece flanged type forged steel trunnion ball valve, electric ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

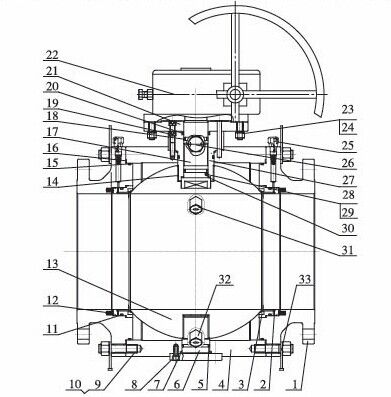

Split body 3 PIECE FLANGE TYPE FORGED STEEL TRUNNION BALL VALVE




ITEM

PART NAME

MATERIAL

1

ADAPTER

A105

2

SEAT RING

A105+ENP

3

SEAT INSERT

PTFE/RPTFE/NYLON

4

BODY

A105

5

O-RING

VITON

6

TRUNNION

A105+ENP

7

GASKET

304SS/316SS+GRAPHITE

8

SCREW

A193 B7/BM

9

BOLT

ASTM A193 B7/BM

10

NUT

ASTM A194 2H/2HM

11

O-RING

VITON

12

SPRING

INCONEL X-750

13

BALL

A105+ENP

14

BEARING

AISI 1045+RPTFE聽

15

O-RING

VITON

16

GASKET

304SS/316SS+GRAPHITE

17

STEM

AISI 1040+ENP/AISI 1045+ENP

18

O-RING

VITON

19

SCREW

CARBON STEEL

20

PACKING

GRAPHITE/PTFE

21

CONNECTING PLATE

CARBON STEEL

22

GEAR OPERATOR

ASSEMBLY

23

BOLT

CARBON STEEL

24

NUT

CARBON STEEL

25

GREASE FITTING(SEAT)

CARBON STEEL

26

GREASE FITTING(STEM)

CARBON STEEL

27

PACKING BOX

A105+ENP

28

ANTI STATIC BALL

304SS

29

ANTI STATIC SPRING

304SS

30

THRUST WASHER

PTFE

31

DRAIN VALVE

CARBON STEEL

32

PLUG

CARBON STEEL

33

SUPPORT

CARBON STEEL



Product Specifications :

Product Range

Nominal Size: 2"-48"

Nominal Pressure: Class150-2500LB

Material:WCB,LCB,CF8,CF8M,CF3,CF3M, A105,LF2,F304,F316,F304L,F316L etc

Design & Manufacture Std.: API608, ASME B16.34, API6D, BS5351

Face to Face Std.: ASME B16.10 ,API 6D, ASME B16.25

End Connection Std.: ASME B16.5,ASME B16.47, ASME B16.34

Test Standard: API598

Structure Type: One-piece, Two-piece, Three-Piece,Full bore or Reduced bore

Operated way: Lever, Gear, Pneumatic, Electric Actuator etc



API Series main connection size

Full port Class 150

NPS

in

1/2

3/4

1

1-1/4

1-1/2

2

2-1/2

3

4

6

8

10

DN

mm

15

20

25

32

40

50

65

80

100

150

200

25

L(RF)

mm

108

117

127

140

165

178

191

203

229

394

457

533

L(BW)

mm

-

-

165

178

191

216

241

283

305

457

521

559

L(RTJ)

mm

119

130

140

152

178

191

203

216

241

406

470

546

H

mm6

70

93

93

102

118

145

148

152

203

338

456

510

W

mm

130

130

160

180

200

230

300

350

400

750

300

400

WT(RF)

kg

3

4

5.5

7.6

8.5

12

18

24

40

82

185

300
