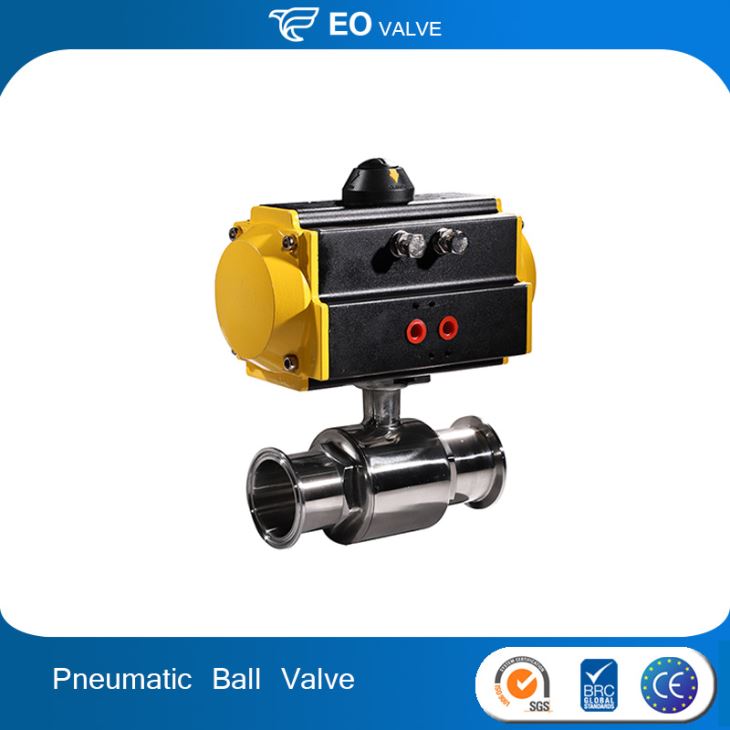

Stainless Steel Pneumatic Brass Ball Valve Sanitary Three Way Ball Valve

Stainless Steel Pneumatic Brass Ball Valve Sanitary Three Way Ball Valve

Using internal and external polishing and sterilization. Clamp quick connection, all-inclusive seal, easy to disassemble, cleaning and maintanance, They can be manually operated or automated with an electric or pneumatic actuator.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Ball
Pressure:pn1.
Power:Pneumatic
Material:SS304 SS316 SS316L
Temperature of Media:-30~250℃
Media:

Food, medicine, packaging machine,

 filling machine and others

Port Size:DN15-200MM
Place of Origin:China (Mainland)
Model Number:HK52
Brand Name:EO
Application:General
Item:sanitary three way ball valve
Nominal size:DN15-DN200
Connection type:clamp, welding
Structure type:floating ball core
Action:single or double acting
Actuator:ON-OFF, regulation
Standard:DIN ISO IDF, SMS, 3A
Certificate:ISO9001:2008,CE,RoHS
Warranty:12 months
Disc material:SS304 SS316 SS316L

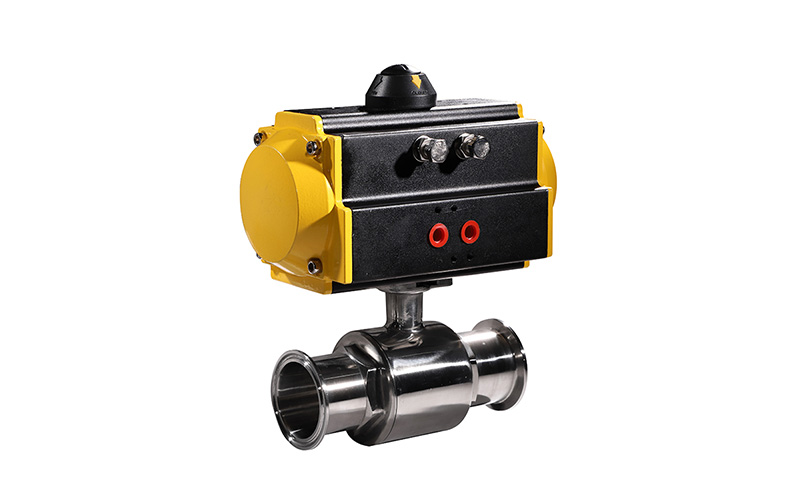

Product Introduction:


Sanitary pneumatic 2 way ball valves has been through the sophisticated inspection process and strict quality management.

Using internal and external polishing and sterilization. Clamp quick connection, all-inclusive seal, easy to disassemble, cleaning and maintanance, They can be manually operated or automated with an electric or pneumatic actuator.

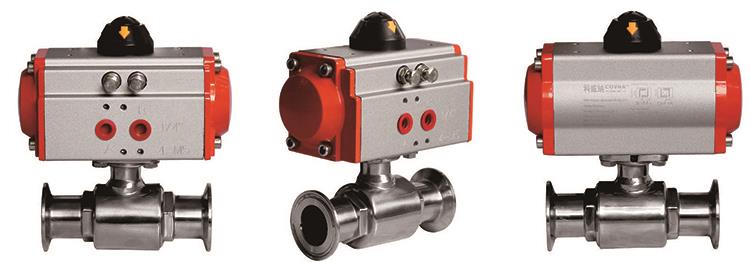

Pneumatic Actuator:

Double actingAir to open, air to close, air supply failure to keep the current position
Single Acting Normally CloseAir to open, interrrupt air to close, air failure to close
Single Acting Normally OpenAir to close, interrupt air to open, air faliure to open
Optional AcessoryReversing solenoid valve, limit switch box, air filter reducing valve, positioner, Handle manual, look up valve.


Technical Parameters

BodyValve components
Nominal SizeDN15-DN200Seal MaterialPTFE: -30℃~180℃              PPL" -30℃~250℃
Body MaterialSS304,SS316,SS316LDisc MaterialSS304,SS316,SS316L
Connection TypeClamp, weldingStem MaterialSS304
Pressure RatingPN1.6MpaDesign standardISO DIN IDF SMS 3A
Structure TypeFloating ball coreApplicable MediumFood, medicine, packaging machine, filling machine and other health consitions using level


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
