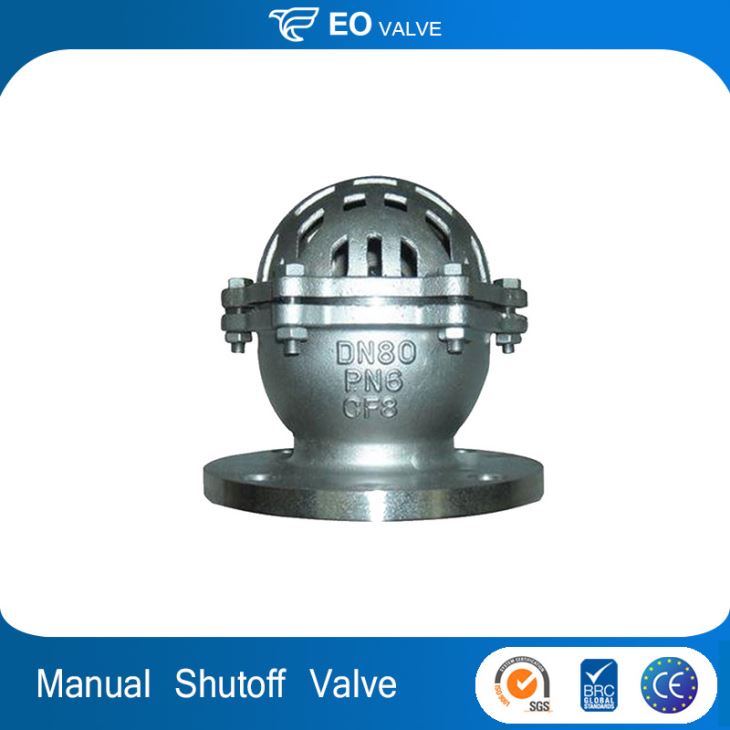

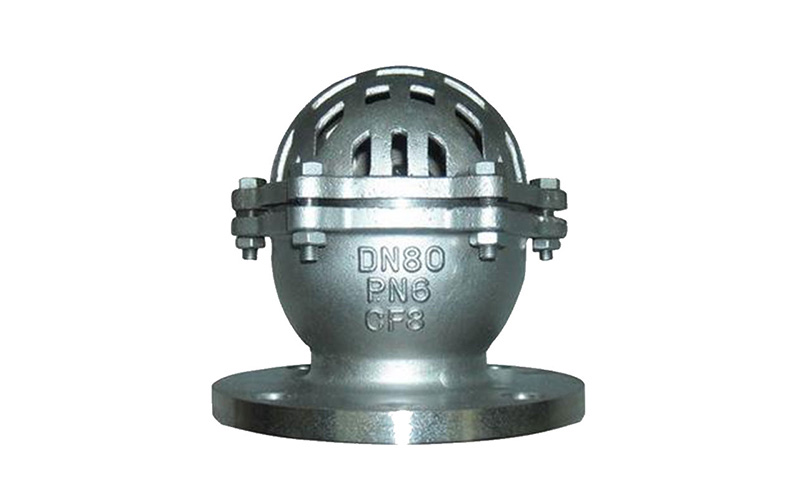

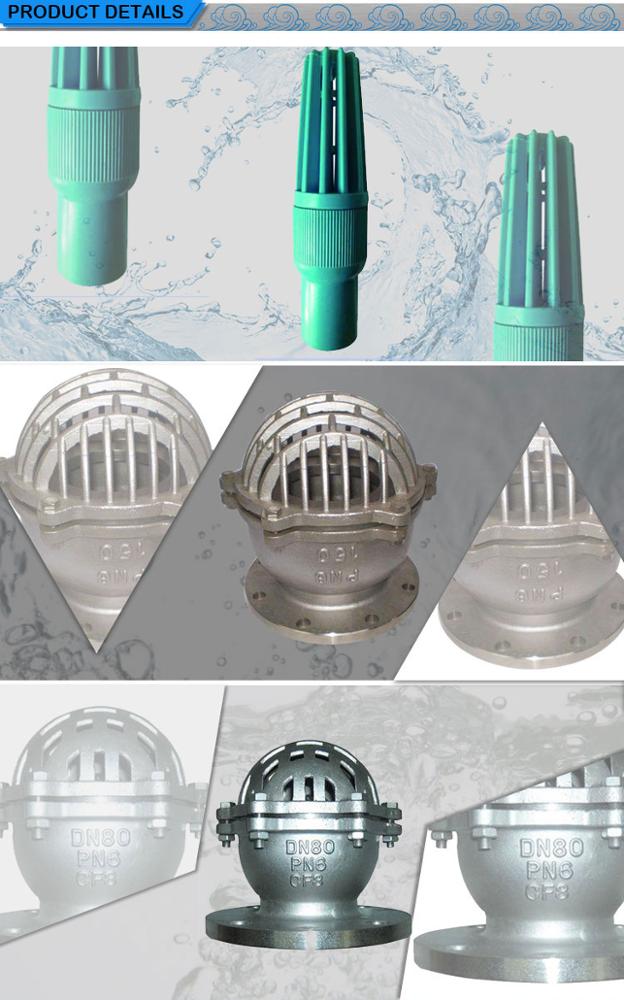

Normal Open Type Manual Emergency Foot Operated Shutoff Valve
Normal Open Type Manual Emergency Foot Operated Shutoff Valve;Pressure:Medium Pressure,Material:Casting,Temperature of Media:Normal Temperature,Port Size:DN15~DN500,Brand Name:EO,Certificate:ISO9001:2008 CE.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Shutoff |
| Pressure: | Medium Pressure |
| Power: | Manual |
| Material: | Casting |
| Temperature of Media: | Normal Temperature |
| Media: | Water |
| Port Size: | DN15~DN500 |
| Place of Origin: | China (Mainland) |
| Model Number: | Foot valve |
| Brand Name: | EO |
| Application: | General |
| Certificate: | ISO9001:2008 CE |
| Normianl pressure: | PN25 |
| DN: | 15-500 |
| Color: | Custermer's requirement |
| Standard: | ANSI BS DIN JIS |
| Connection: | Flange Ends |
| Medium: | water,oil |
| Body material: | stainless steel |
| Type: | Normal Open |
| Pressure and Temperature: | |
| working pressure | PN25 |
| testing pressure | Shell: 1.5 times rated pressure, Seat: 1.1 times rated pressure. |
| working temperature | -10°C to 80°C (NBR) -10°C to 120°C (EPDM) |
| suitable media | Water, oil |
Materials:
| part | material |
| body | cast iron, stainless steel |
| disk | stainless steel |
| sealing ring | rubber |
| gasket | asbestos board |
