8 Inch Flanged Concentric Butterfly Valve

8 Inch Flanged Concentric Butterfly Valve

Products Details : Shenyang EO Valve Co.,Ltd is a leading China 8 inch flanged concentric butterfly valve, 8 butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 8 INCH DOUBLE FLANGE CONCENTRIC BUTTERFLY......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China 8 inch flanged concentric butterfly valve, 8 butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. 8 INCH DOUBLE FLANGE CONCENTRIC BUTTERFLY...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China 8 inch flanged concentric butterfly valve, 8 butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

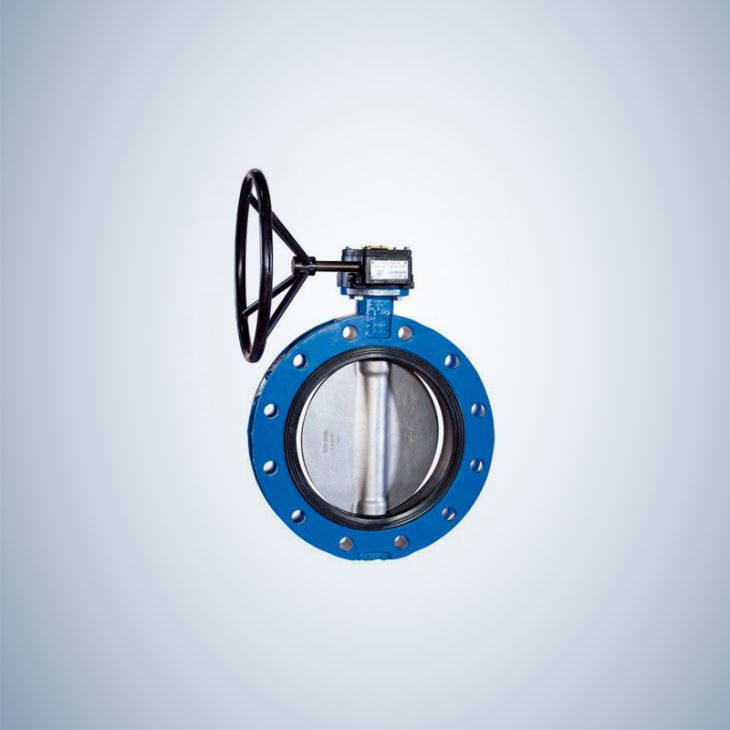

8 INCH DOUBLE FLANGE CONCENTRIC BUTTERFLY VALVE

Product Specifications :


QUICK DETAILS :

Model Number: double flange butterfly valve

Material: Casting

Port Size: 2"-36"

Normal pressure: Class 150-class 300

End flange dimension: ASME B16.5;

Face to face dimension: API 609

Inspection and test: API 598

Pressure-temp rating: ASME B16.34

Design & Manufacture: API 609

Temperature of Media: Medium Temperature

Color: Blue or as per the client's request


STANDARDS :

1. DESIGN AND MANUFACTURE:

API 609

2. FACE TO FACE DIMENSIONS:

API 609

3.FLANGE ENDS DIMENSIONS: NPS1/2”~24”

ASME B16.5

4. PRESSURE-TEMPEARTURE RATINGS:

ASME B16.34

5. PRESSURE:

CLASS 150

6.SIZE:

NPS 2″~16″


MATERIAL LIST :

ITEM

PART NAME

STANDARD

LOW TEMPERATURE

STAINLESS STEEL

1

BODY

A216 WCB

A352 LCC

A351 CF8M

2

BUSHING

PTFE

PTFE

PTFE

3

SEAT

PTFE/RUBBER

PTFE/RUBBER

PTFE/RUBBER

4

PIN

A276 410

A276 304

A276 316

5

STEM

A182 F6

A182 F304

A182 F316

6

DISC

A216 WCB

A352 LCC

A351 CF8M

7

GEAR OPERATOR

ASSEMBLY


GEAR OPERATOR, ELECTRICAL OPERATOR, PENUMATIC OPERATOR, HYDRAULIC OPERATOR ETC.ARE AVALIABLE

NOTE: OTHER METERIALS ARE AVALIABLE UPON REQUEST


PRODUCTION PROCESS:

Foundry → Casting →Machining →Assembling→ Testing → Painting → Finished valve → Packing


PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal



FAQ

1. What is your difference from other competitors?

1). Scale: 82,000.00 square meters non-dust workshop

2). Condition: good after sale service

3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines

4). R&D: valve research and design center

2. How do you control your quality?

1). The foundry is built to promise our raw material better before production.

2). Strict QC system is set up for the superior quality guarantee.



Thanks for your visiting.

We look forward to your inquiry.
