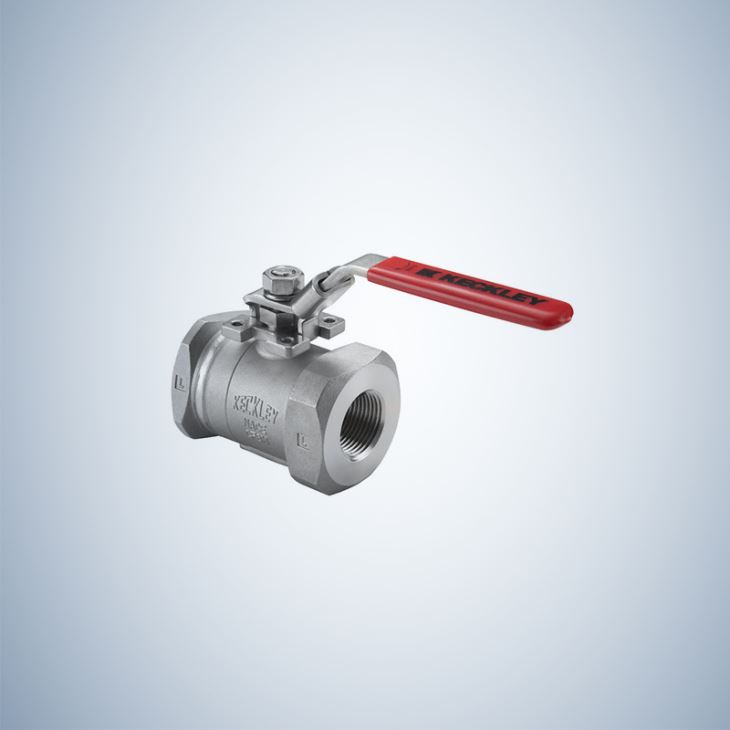

Cf8M Threaded Ball Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China cf8 cast steel 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. CF8 CAST STEEL ONE PIECE THREADED BALL VALVE 1PC Ball Valve.....
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China cf8 cast steel 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. CF8 CAST STEEL ONE PIECE THREADED BALL VALVE 1PC Ball Valve..
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China cf8 cast steel 1 piece threaded ball valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

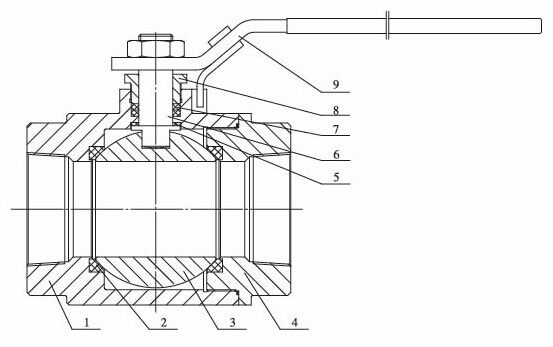

CF8 CAST STEEL ONE PIECE THREADED BALL VALVE
| MATERIAL | |
1 | BODY | A216 WCB |
2 | SEAT | PTFE/RPTFE |
3 | BALL | A105+ENP |
4 | BONNET | A216 WCB |
5 | THRUST WASHER | RPTFE |
6 | STEM | A276 410 |
7 | PACKING | GRAPHITE/PTFE |
8 | GLAND FLANGE | A216 WCB |
9 | LEVER | STAIN LESS |
Product Specifications :
1PC Ball Valve FEATURES:
W.P:2000 WOG(PN150) | Reduce Port : 1/4" ~ 2" |
Blow-out Proof Stem | ASME B16.34 Wall thickness |
Forged body NACE MR0175 | PED97/23/CE(CE0036) Approved |
Inspection Testing:API598,EN12266 | Thread:ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1 |
1PC ball valve DIMENSIONS (mm)
SIZE \ ITEM | d | H | E | S | L | CV FACTOR |
1/4" | 5 | 29 | 61 | 175 | 46.5 | 1 |
3/8" | 7 | 35 | 80 | 21 | 51 | 2.5 |
1/2" | 9.2 | 66 | 104 | 28.5 | 56 | 5.5 |
3/4" | 12.5 | 69 | 107 | 34.5 | 65 | 10 |
1" | 15 | 75 | 118 | 40.5 | 76 | 15.5 |
1.1/4" | 20 | 78 | 146 | 53.5 | 92 | 20 |
1.1/2" | 25 | 85 | 148 | 57.5 | 98 | 37 |
2" | 32 | 98 | 150 | 73 | 114 | 60 |
Features:
1. Blow-out Proof Stem
2. Investment Casting Body
3. Pressure Balance Hole in Ball Slot
4. Anti-Static Device Upon Request
5. Various Connection End Standard Available
6. Locking Device Available
Standards:
1. DESIGN AND MANUFACTURE: BS 5351/ ASME B16.34
2. FACE TO FACE DIMENSIONS: MANUFACTURER’S SPECIFICATION
3. THREAD ENDS DIMENSION: ASME B1.20.1
4. PRESSURE-TEMPERATURE RATINGS: ASME B16.34
5. NORMAL PRESSURE: ASME B16.34
6. NORMAL PRESSURE: ASME B16.34
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
FAQ :
1. What is your difference from other competitors?
1). Scale: 82,000.00 square meters non-dust workshop
2). Condition: good after sale service
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
2. How do you control your quality?
1). The foundry is built to promise our raw material better before production.
2). Strict QC system is set up for the superior quality guarantee.
