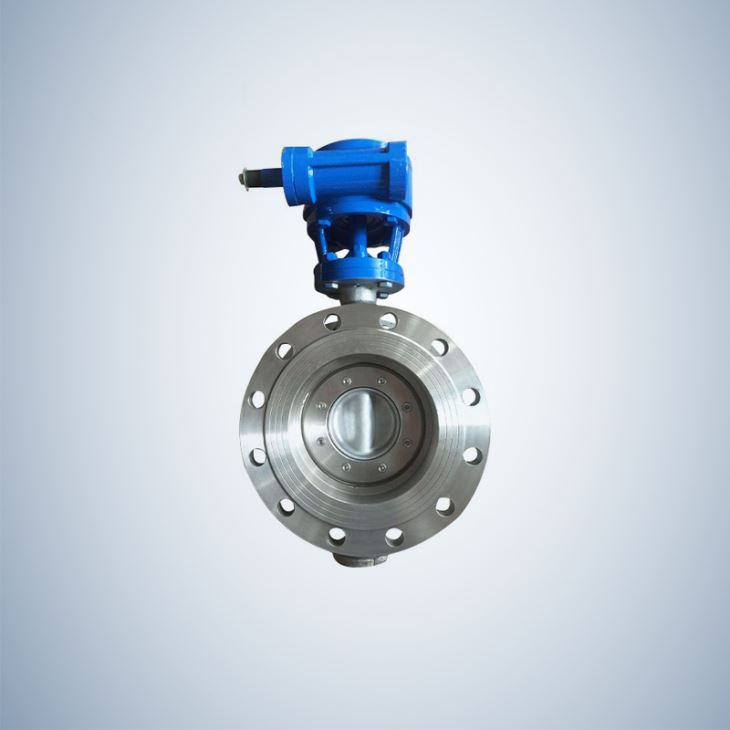

Stainless Steel Double Offset Butterfly Valves
Products Details : Shenyang EO Valve Co.,Ltd is is a leading China stainless steel double offset butterfly valve, stainless steel butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. STAINLESS STEEL DOUBLE......
Products Details :
Shenyang EO Valve Co.,Ltd is is a leading China stainless steel double offset butterfly valve, stainless steel butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. STAINLESS STEEL DOUBLE...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China stainless steel double offset butterfly valve, stainless steel butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Product Specifications :

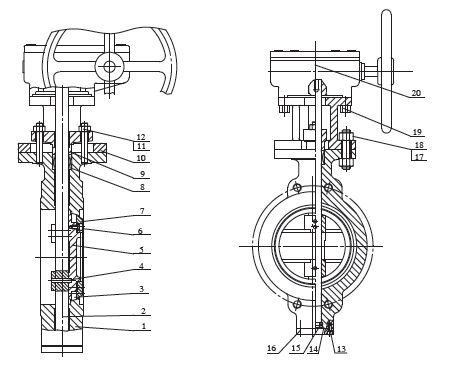

ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | STEM | A182 F6 |
3 | SEAT | PTFE/RUBBER |
4 | PIN | A276 410 |
5 | DISC | A216 WCB |
6 | SCREW | CARBON STEEL |
7 | SEAT GLAND | CARBON STEEL |
8 | PACKING | GRAPHITE/PTFE |
9 | GLAND FLANGE | A216 WCB |
10 | YOKE | A216 WCB |
11 | GLAND NUT | A194 2H |
12 | EYEBOLT | A193 B7 |
13 | COVER BOLT | A193 B7 |
14 | GASKET | SS304/SS316+GRAPHITE |
15 | SPLINT COLLAR | CARBON STEEL |
16 | COVER | A216 WCB |
17 | YOKE BOLT | A193 B7 |
18 | YOKE NUT | A194 2H |
19 | BOLT | CARBON STEEL |
20 | GEAR | ASSEMBLY |
BUTTERFLY VALVE STANDARD
1.design standard:API594,API6D,BS1868
2.Face to face: API594,API6D,ASME 16.10, DIN 3202F1
3.Grade of pressure-temperature: ASNI 16.34
4.Test & Inspection: API6D,API598,DIN3239
FEATURE :
(1) Small in size and light in weight and maintenance. It can be mounted wherever needed.
(2) Simple, compact structure, quick 90 degree on-off operation.
(3) Disc has two-way bearing, perfect seal, without leakage under the pressure test.
(4) Flow curve tending to straight-line. Excellent regulation performance.
(5) Various kinds of materials, applicable to different medium.
(6) Strong wash and brush resistance and can fit to bad working condition.
(7) Center plate structure, small torque of open and close.
(8) Long service life. Standing the test of ten thousands opening and closing operation.
(9) Can be used in cutting off and regulation medium.
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
