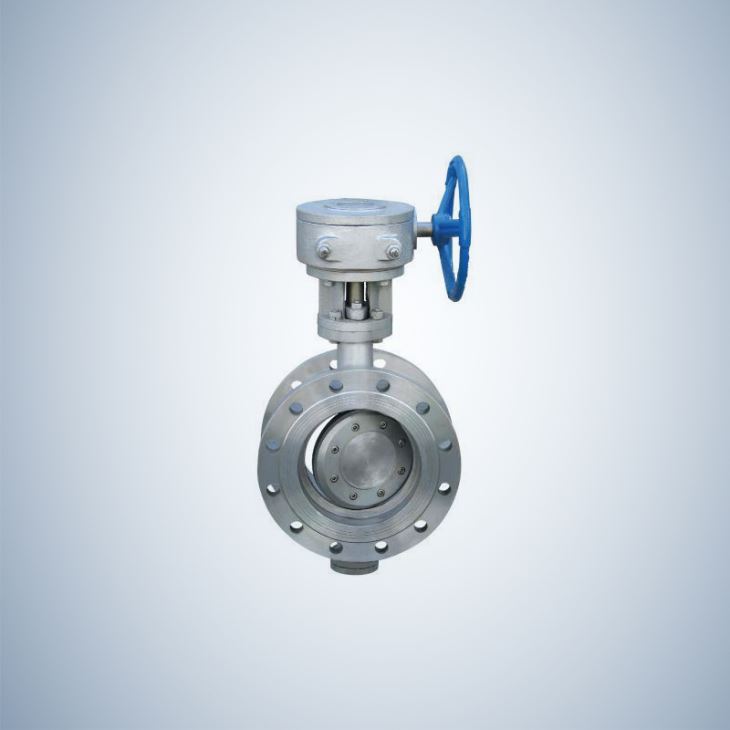

Worm Gear Double Offset Butterfly Valve
Products Details : Shenyang EO Valve Co.,Ltd is is a leading China worm gear double offset butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. WORM GEAR DOUBLE OFFSET BUTTERFLY VALVE BUTTERFLY VALVE STANDARD.....
Products Details :
Shenyang EO Valve Co.,Ltd is is a leading China worm gear double offset butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. WORM GEAR DOUBLE OFFSET BUTTERFLY VALVE BUTTERFLY VALVE STANDARD..
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China worm gear double offset butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
WORM GEAR DOUBLE OFFSET BUTTERFLY VALVE
BUTTERFLY VALVE STANDARD :
1.design standard:API594,API6D,BS1868
2.Face to face: API594,API6D,ASME 16.10, DIN 3202F1
3.Grade of pressure-temperature: ASNI 16.34
4.Test & Inspection: API6D,API598,DIN3239
STANDARDS :
1. DESIGN AND MANUFACTURE: API 609
2. FACE TO FACE DIMENSIONS: API 609
3. FLANGE ENDS DIMENSIONS: NPS1/2”~24”: ASME B16.5
4. PRESSURE-TEMPEARTURE RATINGS: ASME B16.34
5. PRESSURE: CLASS 150
6. SIZE: NPS 2″~16″
ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | STEM | A182 F6 |
3 | SEAT | PTFE/RUBBER |
4 | PIN | A276 410 |
5 | DISC | A216 WCB |
6 | SCREW | CARBON STEEL |
7 | SEAT GLAND | CARBON STEEL |
8 | PACKING | GRAPHITE/PTFE |
9 | GLAND FLANGE | A216 WCB |
10 | YOKE | A216 WCB |
11 | GLAND NUT | A194 2H |
12 | EYEBOLT | A193 B7 |
13 | COVER BOLT | A193 B7 |
14 | GASKET | SS304/SS316+GRAPHITE |
15 | SPLINT COLLAR | CARBON STEEL |
16 | COVER | A216 WCB |
17 | YOKE BOLT | A193 B7 |
18 | YOKE NUT | A194 2H |
19 | BOLT | CARBON STEEL |
20 | GEAR | ASSEMBLY |
FEATURE :
Small in size and light in weight and maintenance. It can be mounted wherever needed.
(2) Simple, compact structure, quick 90 degree on-off operation.
(3) Disc has two-way bearing, perfect seal, without leakage under the pressure test.
(4) Flow curve tending to straight-line. Excellent regulation performance.
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
