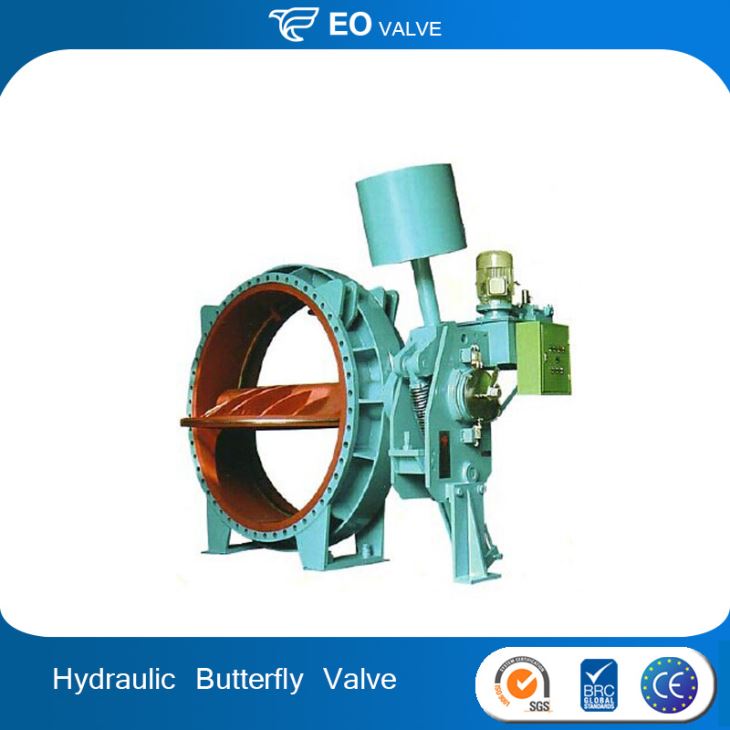

Water Turbine Inlet Pressure Hydraulic Operated Butterfly Valve

Water Turbine Inlet Pressure Hydraulic Operated Butterfly Valve

Water turbine inlet Pressure self-maintaining butterfly valve is installed at inlet of water turbine spiral case.It is consisted of pressure self-maintaining hydraulic operated butterfly valve,upperstream and downstream connection pipes,inlet pipe expansion joint,air release valve,by-pass pipe,by-pass pipe expansion joint,by-pass valve,and by-pass service valve etc.

Send Inquiry



Quick Details
Standard or Nonstandard:Standard and non standard
Structure:Butterfly
Pressure:Low Pressure
Power:Hydraulic, Hydraulic operated
Material:Casting
Temperature of Media:Low Temperature
Media:Water
Port Size:--
Place of Origin:China (Mainland)
Model Number:Water Turbine Inlet butterfly valve
Brand Name:EO
Product name:Water Turbine Inlet Pressure Self-





Description

Water turbine inlet Pressure self-maintaining butterfly valve is installed at inlet of water turbine spiral case.It is consisted of pressure self-maintaining hydraulic operated butterfly valve,upperstream and downstream connection pipes,inlet pipe expansion joint,air release valve,by-pass pipe,by-pass pipe expansion joint,by-pass valve,and by-pass service valve etc.



Functions

1 When one main water pipe delivers water to several water turbines,and if one of the turbines needs to repair or maintenance, Water turbine inlet hydraulic operated ball valve can shut off the water to the turbines that needs to repair or maintenance,but don’t interrupt the other turbines works regularly.



2 When turbine speed governing system accidents happen,the turbine rotating speeds raise up to the setting value, Water turbine inlet hydraulic operated ball valve can emergency shut off the flow immediately,to prevent accidents from deteriorating.



3 when the turbines sets in downtime states for long terms, this valve can cut off water from upperstream,so it can reduce guide vane leaking,avoid the turbine wriggling.





Features:

1 Hydraulic Operated .

2 Valve Disc is double eccentric structures,reliable when close valve,and tight seal, free leakage!

3 This valve has hydraulic locking device,it can avoid shaking when the valve is fully opened,and hit by water.There is also a mechanical locking device,it can avoid accidents happening,when misoperation during repairing.

4 it is self-adjusting shaft sealing,and lead free oil self lubrication bearing,the seal box and shaft end support are designed as assembly parts,and they are installed outside the pipe,it is convenient for disassemble and repair.



5 This valve has manual pump,and manual closing device.It can close the valve when repair or powder off.



Operating Procedure



1 Open

Open by-pass valve----remove hydraulic pressure lock----full open main valve disc----close by-pass valve



2 Close

Completely close main valve disc—start working sealing----start hydraulic pressure lock.



Size:

DN1000 to DN5300mm

Water Turbine Inlet Pressure Self-

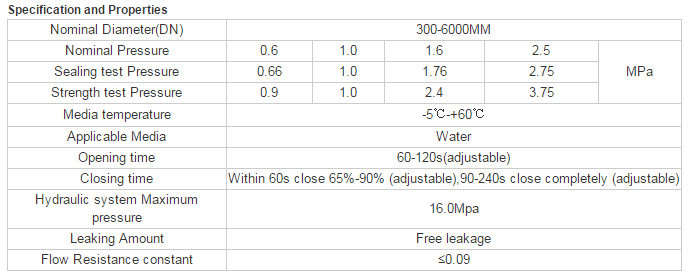

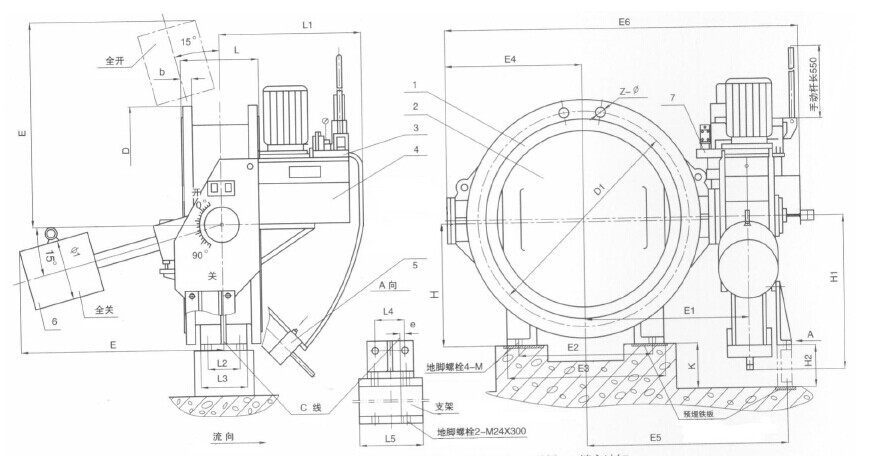

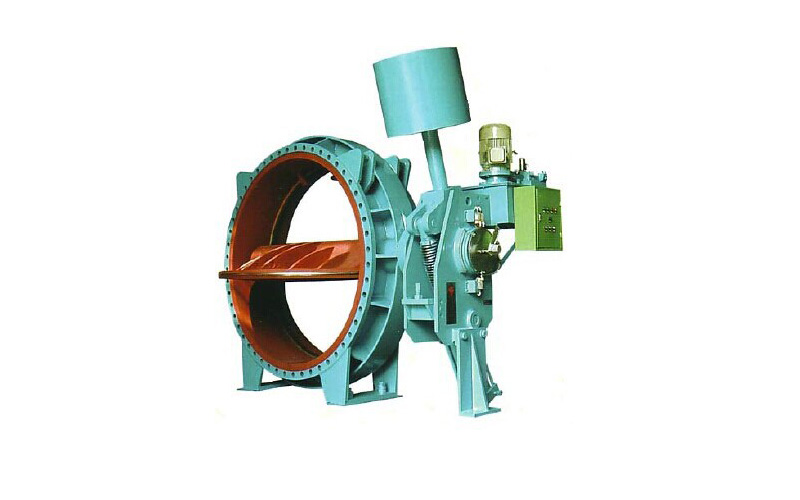

Structure and Drawing for  Water Turbine Inlet Pressure Self-maintaining hydraulic operated Butterfly Valve

Water Turbine Inlet Pressure Self-maintaining hydraulic operated Butterfly Valve

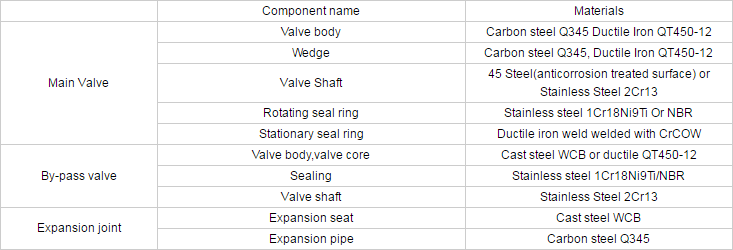

Main component and Materials



Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
