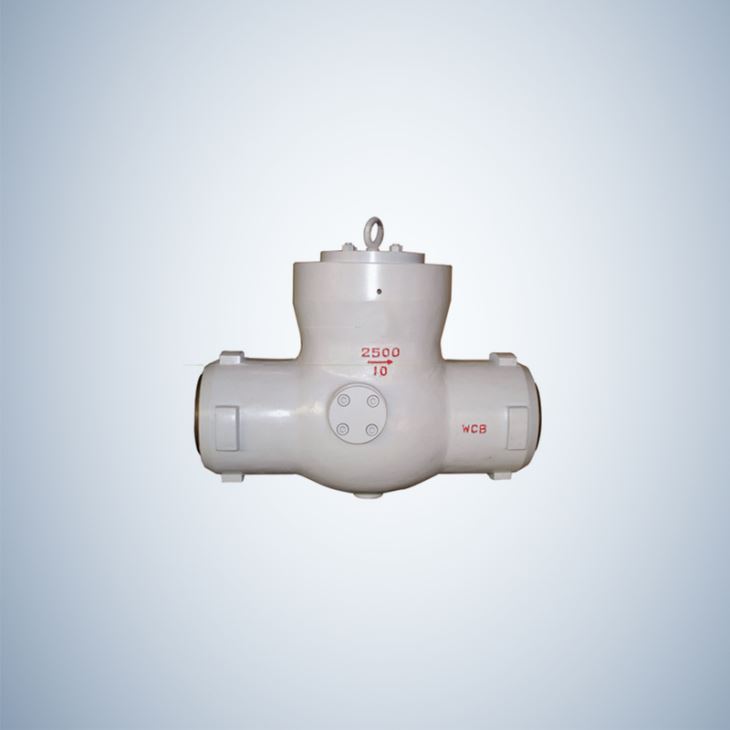

Cast Steel SW Ends Pressure Seal Check Valve
Products Details : Shenyang EO Valve Co.,Ltd is a leading China cast steel sw ends pressure seal check valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Products D escription : Shenyang EO Valve Co.,Ltd is a leading...
Products Details :
Shenyang EO Valve Co.,Ltd is a leading China cast steel sw ends pressure seal check valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China cast steel sw ends pressure seal check valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.
Product Specifications :
STANDARDS:
1. DESIGN AND MANUFACTURE: | BS 1868/ASME B16.34/API 6D |
2. FACE TO FACE DIMENSIONS: | ASME B16.10 |
3. FLANGE ENDS DIMENSIONS: NPS1/2”-24” | ASME B16.5 |
NPS 26”-36” | ASME B16.47 |
4. BW ENDS DIMENSIONS: | ASME B16.25 |
5. PRESSURE-TEMPERATURE RATINGS: | ASME B16.34 |
6. NORMAL PRESSURE: | CLASS 900~2500 |
7. NORMAL DIAMETER: | NPS 2″~24″ |
Design Feature:
1. Pressure Seal Bonnet(PSB) Design
2. Swing Disc: Disc Is Fastened Securely To Disc Hanger With a Lock Nut And Copter Pin
3. Seat Type: Welder Seat Or Integral Seat
4.Main Material:ASTM A216 WCB, A217 Wc6, A351 CF8, A351 CF8M etc.
5.Application:Chemical, Petrochemical, Oil & Gas, Power Plant, General Industry etc.
6.Temperature rating:-45°C - + 650 °C or above

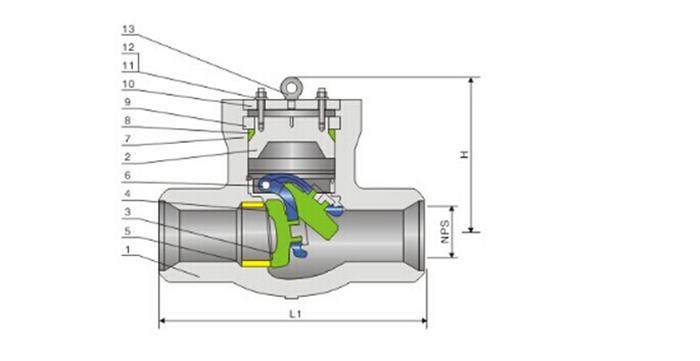

Technical Drawing(For reference):

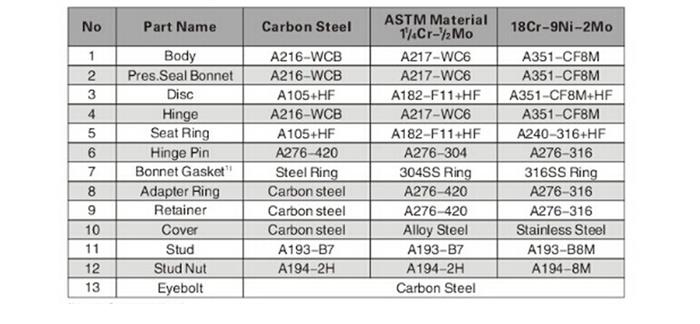

Main Material:
Our Advantage:
1). Scale: 82,000.00 square meters non-dust workshop
2). The foundry is built to promise our raw material better before production.
3). Equipment: 350 sets advanced machining facilities, 5 automatic production lines
4). R&D: valve research and design center
5). Strict QC system is set up for the superior quality guarantee.
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
