Flange Center Line Butterfly Valve
U Type Flange Center Line Butterfly Valve Manufacturer;Features,size: DN50 ~ DN1200 (2" ~ 48");Class: PN10 ~ PN16 (150PSI ~ 200PSI),Double Flanged Type,Pin through One Piece or Two Pieces Shaft,Concentric Disc,Vulcanized Rubber Seat,Bubble Tight Shut Off,ISO5211 Top Flange.
| Quick Details | |
| Standard or Nonstandard: | API 600 |
| Structure: | GA-P Series Pressure Seal butt weld 6 inch electric gate valve |
| Pressure: | 150# |
| Power: | Manual&Motorized&Penumatic |
| Material: | WCB,CF8,CF8M,CF3,CF3M,GR4A,WC6,WC9,C5,LCB,LCC,WCC |
| Temperature of Media: | Normal Temperature |
| Media: | Gas,Oil,Acid medium |
| Port Size: | 2" ~ 48" |
| Place of Origin: | China (Mainland) |
| Model Number: | D371X -150lb-14" |
| Brand Name: | EO |
| Application: | General |
| Size: | DN50 ~ DN1200 (2" ~ 48") |
| Class: | PN10 ~ PN16 (150PSI ~ 200PSI) |
| Design: | API DIN JIS GB |
| Face to Face: | DIN3202, ISO 5752 |
| Flange: | Flange |
| Test: | API598 |
| End: | SW RF RTJ LUG WAFER |
| Certificate: | API, ISO, GOST, TS |
| Model: | D37 |
U Type Flange Center Line Butterfly Valve Manufacturer

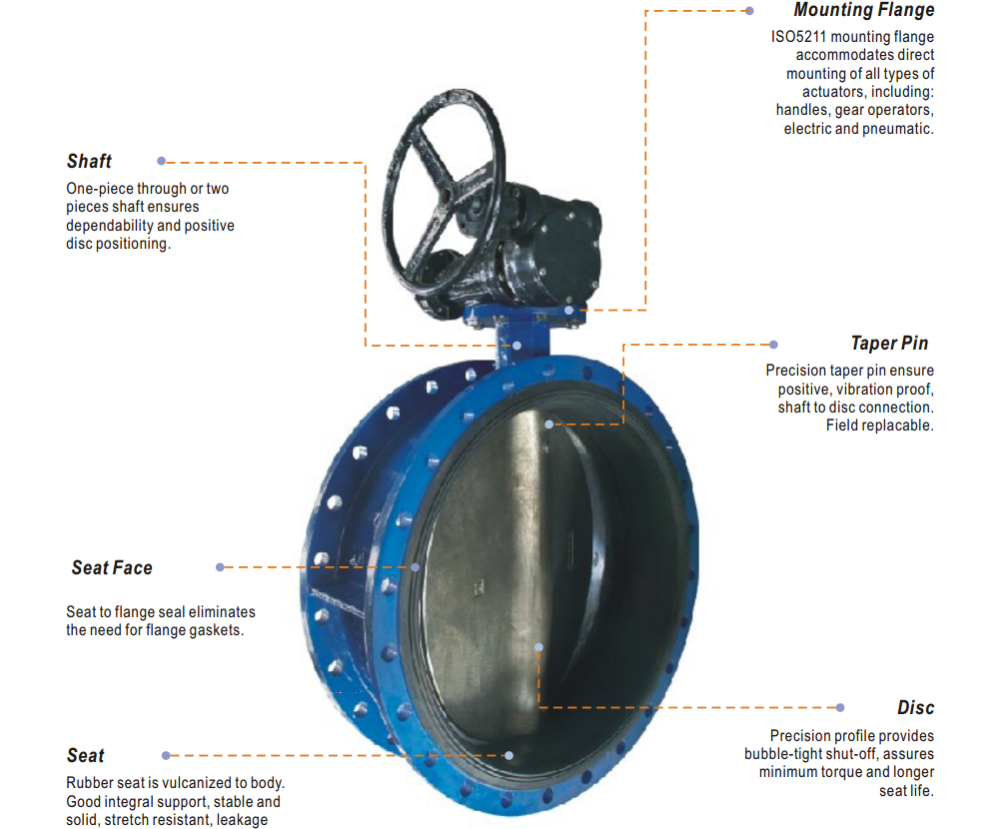

Features
size: DN50 ~ DN1200 (2" ~ 48");
Class: PN10 ~ PN16 (150PSI ~ 200PSI)
Double Flanged Type
Pin through One Piece or Two Pieces Shaft
Concentric Disc
Vulcanized Rubber Seat
Bubble Tight Shut Off
ISO5211 Top Flange

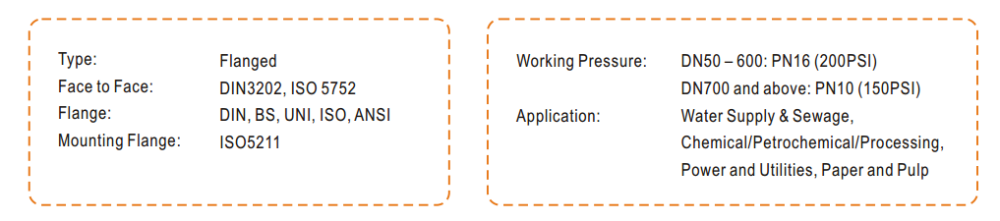

| Specification | |
Design Face to Face Flange Test | API609 DIN3202, ISO 5752 DIN, BS, UNI, ISO, ANSI API598 |
