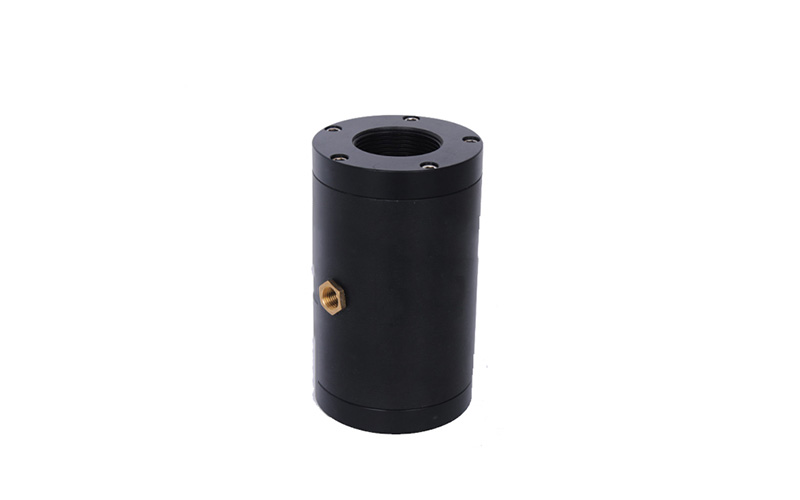

POM Female Thread Pneumatic Air Operated Pinch Valve

POM Female Thread Pneumatic Air Operated Pinch Valve

Pneumatic pinch valves are the ideal solution for isolating and regulating abrasive, corrosive and fibrous products. The Pinch Valve is being used more and more as an isolating valve or regulating valve for emulsions, sludges, dusts, gaseous materials, compressed air, powder, granulates, pellets etc.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Shutoff
Pressure:Low Pressure
Power:Pneumatic
Material:Plastic
Temperature of Media:Low Temperature
Media:Slurry,powder,wastewater,dairy,food,etc.
Port Size:1/2''-2''
Place of Origin:China (Mainland)
Model Number:PP01
Brand Name:EO
Application:General
Product name:pneumatic pinch valve
Certificate:ISO9001:2008 CE
Connection:Female thread
Medium:Slurry,powder,wastewater,dairy,food,etc.
Working pressure:PN6
Size:1/2''-2''
Operate pressure:6-8.5bar
Body material:POM
Sleeve:Natural rubber



Pneumatic pinch valve
SerielPP00
BodyPOM(Black&White)
Sleeve/LinerNatural rubber(Anti-corrosive,food grade)
StudsSS304
Size1/2''-2''
Temperature80 ℃
Pump pressure(Working)<6 bar
Operating pressureWorking pressure(Pump pressure)+2.5 bar(Pressure difference)
Lifetimeoperated than 1 million times
ApplicationChemical,dairy,wastewater,surface treatment,beverage,home furnishings,animal feeding.


Function open

The seeve is opened again when the control pressure is removed and by the restoring force of the sleeve


Function close

A flexible elastomer sleeve is compressed by increasing the pressure in the pinch valve body .This creats a lip-shaped closing pattern,powders or other medium is squeezed by the air pressure, can not move or totaly cut off to shut off .The continunous air pressure ensure the elastomer sleeve close tightly.


Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
