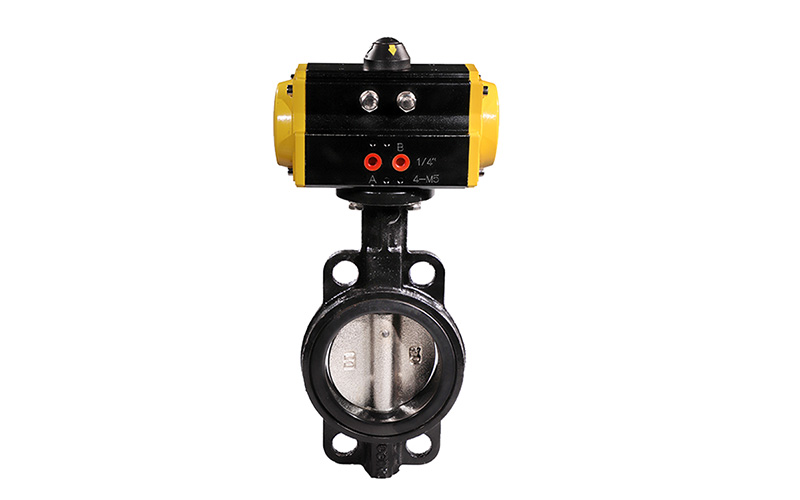

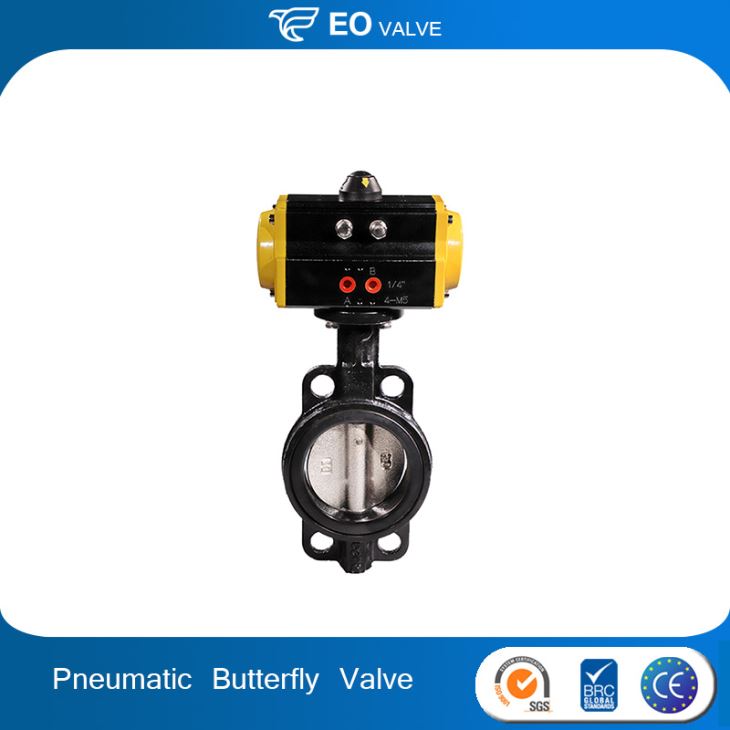

Pneumatic Butterfly Valve With High Performance Pneumatic Valve Actuator
Pneumatic Butterfly Valve with High Performance Pneumatic Valve Actuator;Model Number:HK59D-1 Pneumatic Butterfly Valve,Material:Casting, Cast Iron, Ductile Iron, Stainless Steel,Applicable Standards:GB, DIN, ANSI, ASME, JIS, API.
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Butterfly |
| Pressure: | Low Pressure, 1.0 to 1.6MPa, 145 to 232PSI |
| Power: | Pneumatic |
| Material: | Casting, Cast Iron, Ductile Iron, Stainless Steel |
| Temperature of Media: | Normal Temperature, t<80°C |
| Media: | Water, Air, Gas, Oil, Liquid, Steam |
| Port Size: | 2" to 24", DN50 to DN600 |
| Place of Origin: | China (Mainland) |
| Model Number: | HK59D-1 Pneumatic Butterfly Valve |
| Brand Name: | EO |
| Application: | General |
| Item: | Wafer Pneumatic Butterfly Valve with Pneumatic Valve Actuator |
| Acting Mode: | Double Acting, Single Acting (Spring Return) |
| Air Supply Pressure: | 2.5 to 8bar |
| Sealing Material: | NBR, EPDM, FKM (VITON), PTFE (TEFLON) |
| End Connection: | Wafer, Flange End |
| Item | Wafer Pneumatic Butterfly Valve with High Performance Pneumatic Valve Actuator |
| Applicable Standards | GB, DIN, ANSI, ASME, JIS, API |
| Size Range | DN50 to DN600, 2" to 24" |
| Acting Mode | Double Acting, Sping Return (Single Acting) are Available |
| Air Supply Pressure | 2.5 to 8bar |
| Operating Pressure | Low Pressure, 1.0 to 1.6MPa (145 to 232PSI) |
| Output Torque | 14 to 1170Nm |
| Lifespan | 1,000,000 (1 Million) Times |
| Angle of Rotation | 90° ±4° |
| Shell Material | Aluminum Alloy Extruded |
| Body Material | Cast Iron, Stainless Steel are Available |
| Disc Material | Cast Iron, Stainless Steel are Available |
| Sealing Material | NBR, EPDM, FKM (VITON), PTFE (TEFLON) |
| Structure | Midline |
| End Connection | Wafer, Flange End |
| Applicable Media | Control of Water, Air, Gas, Oil, Liquid, Steam |
| Temp. of Media | Range from -10 to +80°C (14 to 176°F) with NBR Sealing |
| Ambient Temp. | Standard Type: -20 to +80°C (-4 to 176°F) |
| Optional Accessories | Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device |
| Application | Food & Beverage, Refining, Desalination, Petrochemical, Chemical, Pharmaceutical, Textile, Pulp & Paper, Mining, Marine and Power Industries |
| Lubrication | There is no need for lubrication for standard type under normal operating conditions. Special lubricants should be used under low or high temperature operating conditions. |

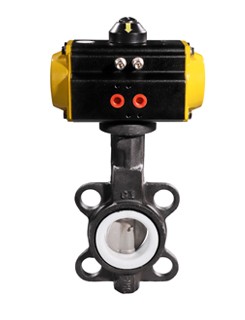

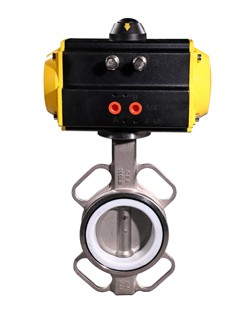

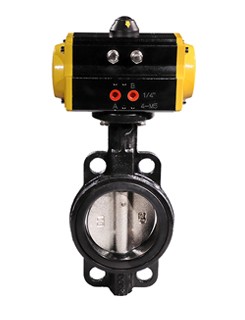

CI Butterfly Valve with PTFE Sealing CI Butterfly Valve with NBR Sealing SS304 Butterfly Valve with PTFE Sealing
Our Service
Spot delivery, including delivering small batches of goods
Provide wide-range and complete materials series products
Cutting plates, including complex shapes of materials and special processing and disposal
Cutting bars and strips
Our application technology expert provide the best material and recommendation
One-stop service
