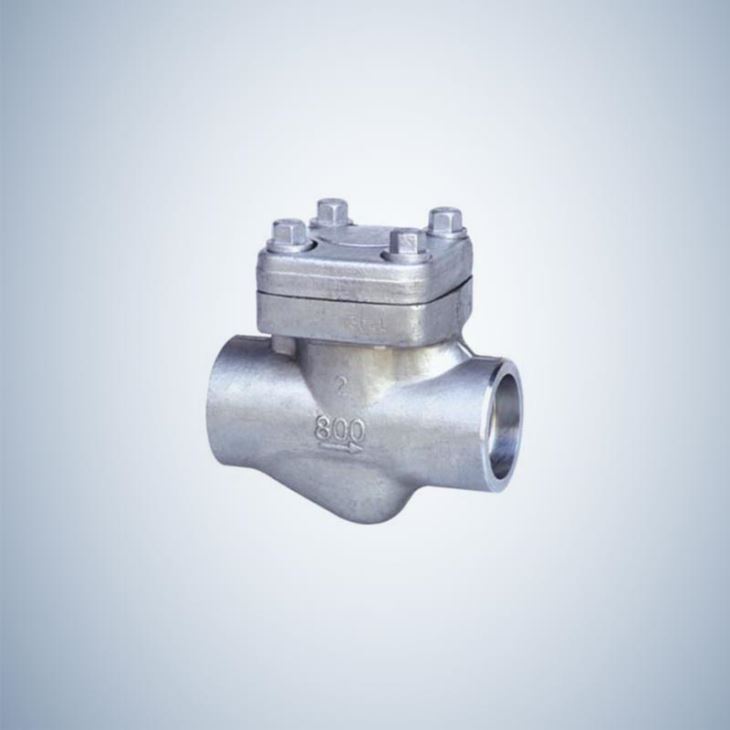

Forged Check Valve Socket Weld

Forged Check Valve Socket Weld

Products Details : Shenyang EO Valve Co.,Ltd is a leading China forged check valve socket weld manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Forged steel f304 check Valve NPT ends,Manufactured By Professional Valve......

Send Inquiry

Products Details :

Shenyang EO Valve Co.,Ltd is a leading China forged check valve socket weld manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. Forged steel f304 check Valve NPT ends,Manufactured By Professional Valve...


Products Description :

Shenyang EO Valve Co.,Ltd is a leading China forged check valve socket weld manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service



Forged Steel F304 Check Valve NPT Ends,Manufactured By Professional Valve

Product Specifications :

STANDARDS:

1). Size: 1/2"-2"
2). Pressure: 800LB, 900LB-1500LB
3). Material: A105, F11, F22, F304, F316, F304L, F316L, 20-Alloy
4). Design and Manufacture: API 602, BS5352
5). Face to Face: ASME B16.10
6). Pressure-temperature: ASME B16.34
7). Flanged End Dimension: ASME B16.5
8). BW End Dimension: ASME B16.25
9). Socket-weld End Dimension: ASME B16.11
10). Screwed End: ASME B1.20.1
11). Inspection and Test: API 598


DESIGN FEATURES:

1.BOLTED COVER OR WELDED COVER DESIGN

2.SWING DISC: DISC IS FASTENED SECURELY TO DISC HANGER WITH A LOCK NUT AND COPTER PIN

3.EXPANDED SEAT

4.SPIRAL WOUND GASKET

5.SUITABLE MEDIUM: WATER, STEAM, OIL PRODUCTS, NITRIC ACID, ACETIC ACID

6.SUITABLE TEMPERATUE: -29OC-425OC (FOR A105 & WCB); -29OC-550OC (FOR F22); -29OC-200OC (FOR 304 / 316).

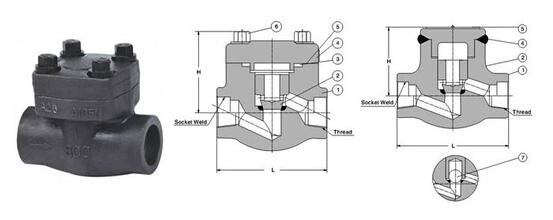

MATERIAL LIST:

ITEM

PART NAME

STANDARD

ALLOY CARBON STEEL

STAINLESS STEEL

1

BODY

A105

A350 LF2

A182 F316

2

SEAT

A105

A350 LF2

A182 F316

3

DISC

A105

A350 LF2

A182 F316

4

DISC NUT

CARBON STEEL

STAINLESS STEEL

316 SS

5

HINGE

A105

A350 LF2

A182 F316

6

HINGE PIN

A276 410

A276 304

A276 316

7

GASKET

304SS/316SS SPIRAL WOUND/SOLID 304SS

8

COVER

A105

A350 LF2

A182 F316

9

BOLT

A193 B7/B7M

A320 L7/L7M

A193 B8M

NOTE:OTHER METERIALS ARE AVALIABLE UPON REQUEST


PACKAGING & DELIVERY

Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.

Delivery details  4-5 weeks after receipt of down payment by T/T

Payment  T/T, L/C, Western Union and PayPal
