Products Details :
Shenyang EO Valve Co.,Ltd is a leading China dn150 triple offset butterfly valve, dn150 butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service. DN150 TRIPLE OFFSET BUTTERFLY VALVE APPLICABLE...
Products Description :
Shenyang EO Valve Co.,Ltd is a leading China dn150 triple offset butterfly valve, dn150 butterfly valve manufacturer and supplier, and as a professional company, we have productive factory to offer you good price and service.

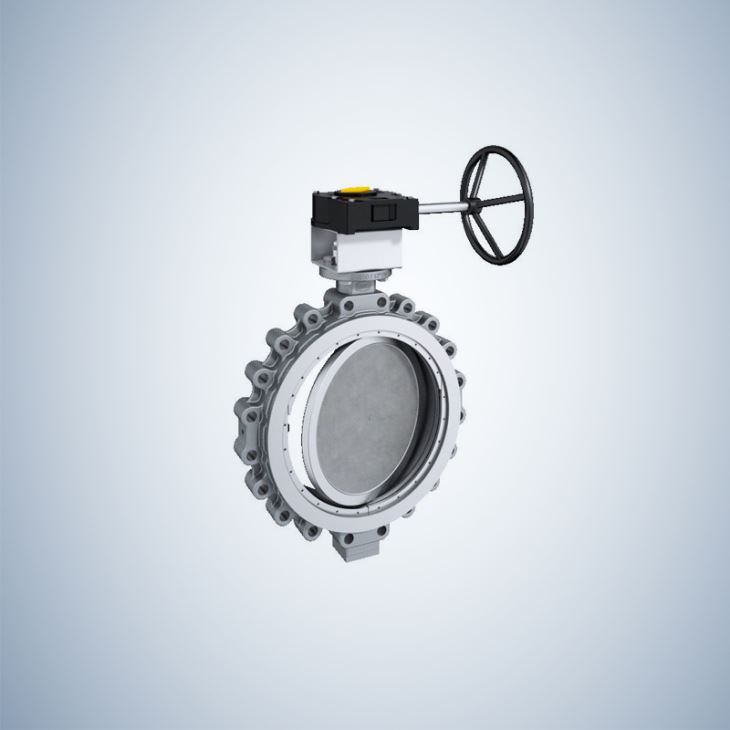

DN150 TRIPLE OFFSET BUTTERFLY VALVE

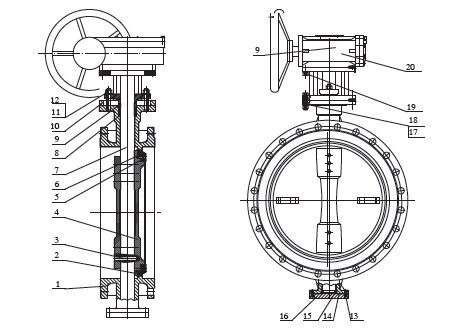

MATERIAL LIST
ITEM | PART NAME | MATERIAL |
1 | BODY | A216 WCB |
2 | STEM RING | SS+GRAPHITE/PTFE |
3 | PIN | A276 410 |
4 | DISC | A216 WCB |
5 | SCREW | CARBON STEEL |
6 | SEAT GLAND | CARBON STEEL |
7 | STEM | A182 F6A |
8 | PACKING | GRAPHITE/PTFE |
9 | GLAND FLANGE | A216 WCB |
10 | YOKE | A216 WCB |
11 | GLAND NUT | A194 2H |
12 | EYEBOLT | A193 B7 |
13 | COVER BOLT | A193 B7 |
14 | GASKET | SS304/SS316+GRAPHITE |
15 | SPLINT COLLAR | CARBON STEEL |
16 | COVER | A216 WCB |
17 | YOKE BOLT | A193 B7 |
18 | YOKE NUT | A194 2H |
19 | BOLT | CARBON STEEL |
20 | GEAR | ASSEMBLY |
APPLICABLE STANDARDS :
Design & Manufacture according to: API 609
Face to Face according to: ASME B16.10
Flange Dimensions according to: ASME B16.5
Pressure & Temperature according to: ASME B16.34
Test & Inspection according to: API 6D / API 598
Visual Inspection according to: MSS SP-55
Marking according to: MSS SP-25
SPECIFICATIONS :
Triple eccentric structure
Adjustable and replaceable seat
Fire-safe certification
Zero leakage
Main features :
Body structure: Triple eccentric / triple offset
Construction: layer disc sealing
Bore: Full bore
Connection: Fully lugged
Seat: Integral to body
PACKAGING & DELIVERY
Packaging details : electric actuated butterfly valve: the strong plywood cases or as per the customer's request.
Delivery details : 4-5 weeks after receipt of down payment by T/T
Payment ： T/T, L/C, Western Union and PayPal
