Stainless Steel Actuator Control Pneumatic Sanitary Valve
Stainless Steel Actuator Control Pneumatic Sanitary Valve;Structure:Butterfly,Pressure:Medium Pressure,Temperature of Media:Medium Temperature,Place of Origin:China (Mainland).
| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Butterfly |
| Pressure: | Medium Pressure |
| Power: | Pneumatic |
| Material: | Casting |
| Temperature of Media: | Medium Temperature |
| Media: | Water |
| Port Size: | DN50-DN150 |
| Place of Origin: | China (Mainland) |
| Brand Name: | EO |
| Application: | General |
| Name: | pneumatic actuator wafer butte |
| Name: | Pneumatic actuator wafer butterfly valve |
| Size: | DN15-DN1500 |
| End flange: | ANSI B 16.1,EN1092,AS2129 |
| Face to Face: | ANSI B 16.10 |
| Top flange: | ISO 5211 |
| Normal pressure: | PN1.0/1.6MPa(150/200PSI); Class 125/150; JIS 5K 10K 16K 20K; Table D/E |
| Body: | CI/DI/WCB/ALB/CF8/CF8M |
| Disc: | DI/ALB/Rubber lined Disc/1.2501/1.4529/CF8/Hastelloy Alloy/Monel |
| Stem: | 410/416/304/431/17-4PH/316/monel |
| Seat: | NBR/Hypalon/EPDM/Neoprene/NR/Wear-Resistant EPDM/Viton/Silicon/Heat-Resistant EPDM/White EPDM/EPDM(NSF)/PTFE |
| Suitable temperature: | -10~120 |
| Medium: | Medium: Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc. |
-The top flange standard conforms to ISO5211.
-The top flange of the valves can be applied to manual , worm gear ,pneumatic and electric actuator.

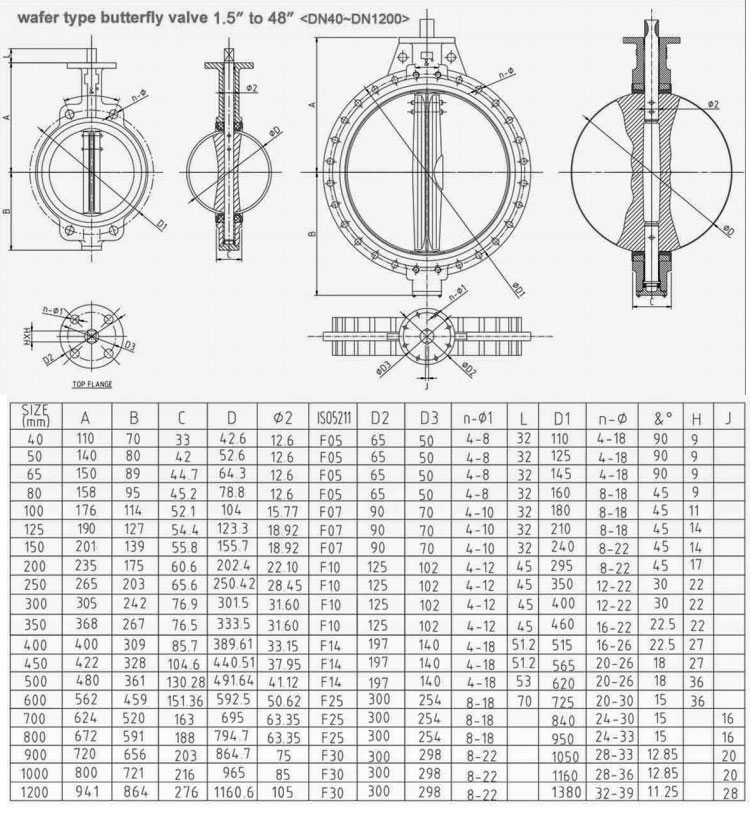

The dimensions of D1 and n-ø (n-M) are the mounting specification , which can be China standard GB , ISO standard ,ANSI standard, DIN standard,JIS standard ,AS standard and BS standard.
-The dimensions of D1 and n-ø of wafer butterfly valve can be made of UNIVERSIAL type, including all of the above mentioned standards.
