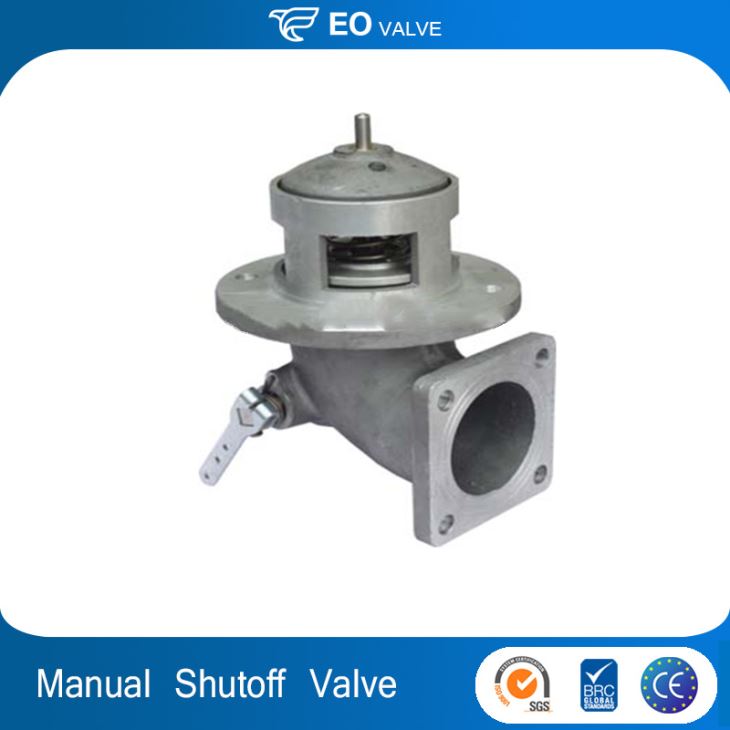

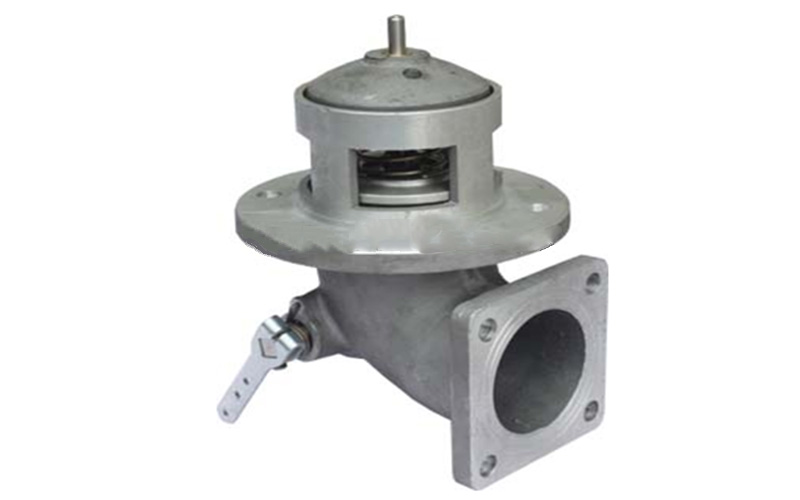

3 Inch Manual Emergency Foot Valve

3 Inch Manual Emergency Foot Valve

3 inch Manual Emergency Foot Valve;Standard or Nonstandard:Standard,Structure:Shutoff,Power:Manual,Temperature of Media:Normal Temperature,Place of Origin:China (Mainland).

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Shutoff
Pressure:Low Pressure
Power:Manual
Material:Alloy
Temperature of Media:Normal Temperature
Media:diese,gasoline,kerosene
Port Size:3''
Place of Origin:China (Mainland)
Model Number:HDV-80NS
Brand Name:EO
Application:oil tanker truck parts



manual emergency shutoff valve

 installed on the bottom of the tanker with flange connection, and the seals extend into the tanker. Utilizing stainless steel spring pressure with axial self-sealing to maintain emergency valve in closed state and operate opening and closing by transmission device. External shear groove can effectively absorb the energy from the pipe when the tanker is crashed down. The valve body cuts off from the shear groove and make the tanker and pipe separate to ensure perfect seals, avoid spillage and improve safety.

With perfect design, high flow, high drop to make the max benefit. Triple sealing on piston to reduce maintenance. Lightweight casting structure improves liquidity.


Product item:HDV-80NS
Size:3''
Working pressure:0.6 MPa
Max flow rate:1500L/min
Connection mode:Flanged
Air pressure required: 0.4-0.8MPa
Temperature range:-20-+70℃
Operating method:Manual
Medium:Diesel, Gasoline, Kerosene
