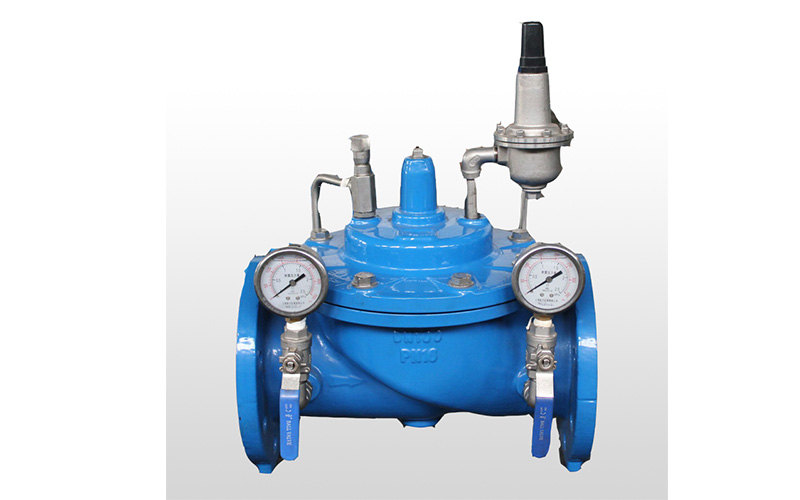

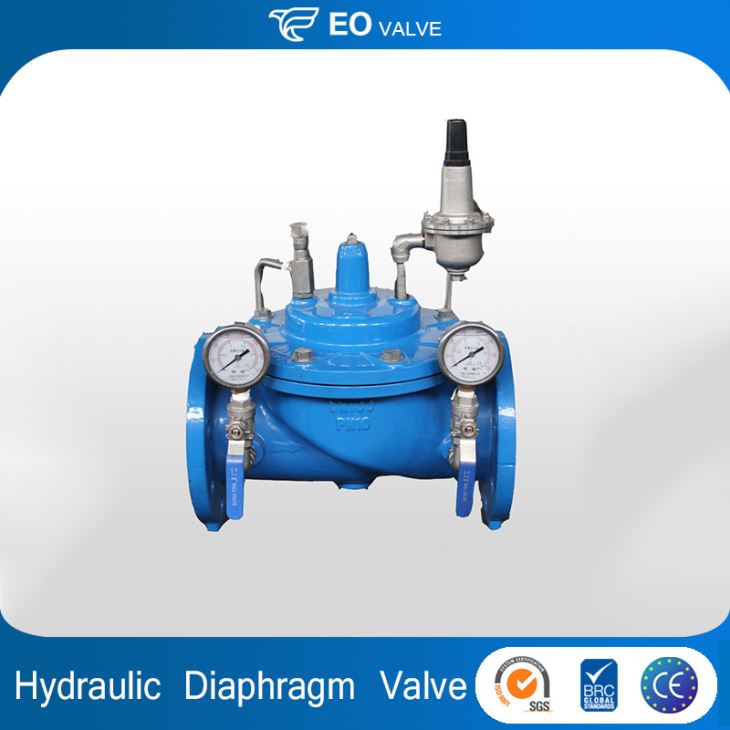

Hydraulic Ductile Iron Diaphragm Type Water Pressure Reducing Valve

Hydraulic Ductile Iron Diaphragm Type Water Pressure Reducing Valve

Hydraulic Ductile Iron Diaphragm Type Water Pressure Reducing Valve;Structure:Control,Temperature of Media:Medium Temperature,Place of Origin:China (Mainland),Model Number:400X-16,Brand Name:EO,Application:General.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Control
Pressure:Medium Pressure
Power:Manual
Material:Casting
Temperature of Media:Medium Temperature
Media:Water
Port Size:DN50-DN600
Place of Origin:China (Mainland)
Model Number:400X-16
Brand Name:EO
Application:General
Model:200X-16
Nominal diameter:DN50-600mm
Nominal pressure:PN1.0-1.6MPa
Suitable medium:water
Suitable temperature:0-80 degree




Specification:

Size: DN50-DN600

Pressure: PN10/ PN16

Design standard: JBT 10674-2006

Face-to-face dimension: BS EN558 serial 1.

Flange suitable for BS EN 1092 PN10/ PN16.

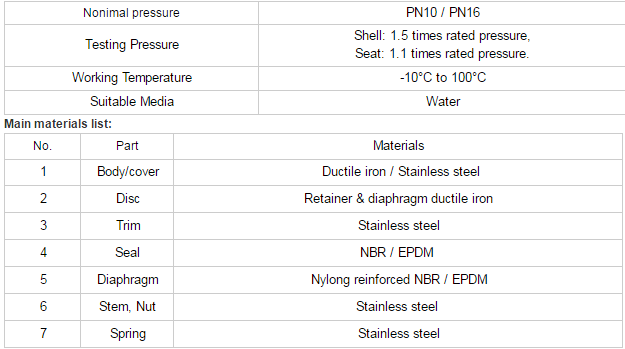

Pressure & temperature rating:

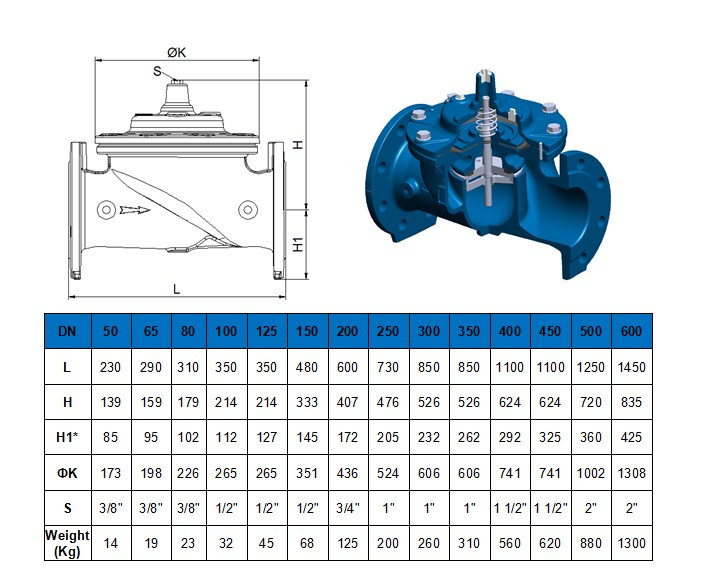

Technical drawing:

 Flow control valve main valve dimensions:



Our Service

Spot delivery, including delivering small batches of goods

Provide wide-range and complete materials series products

Cutting plates, including complex shapes of materials and special processing and disposal

Cutting bars and strips

Our application technology expert provide the best material and recommendation

One-stop service
