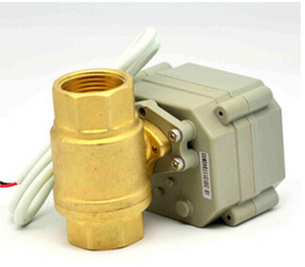

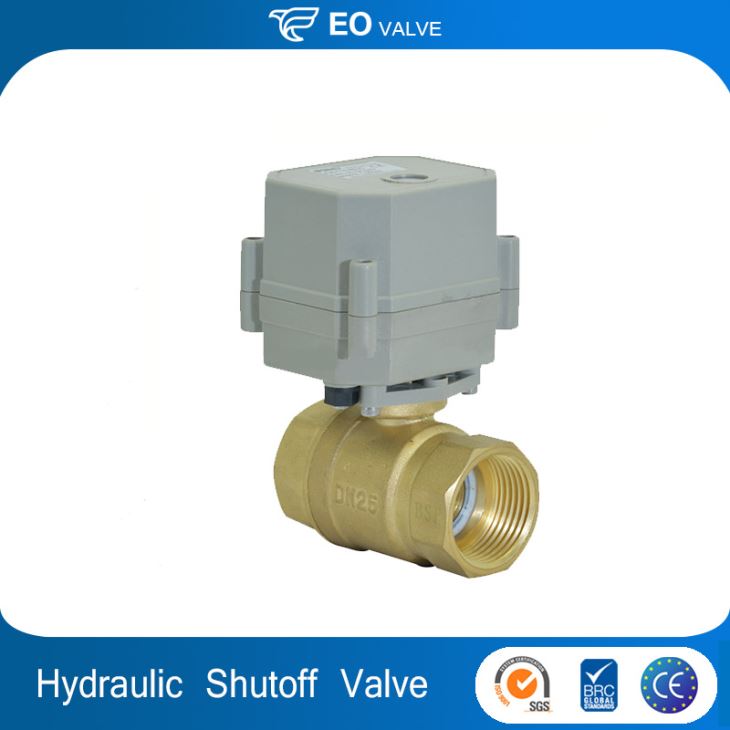

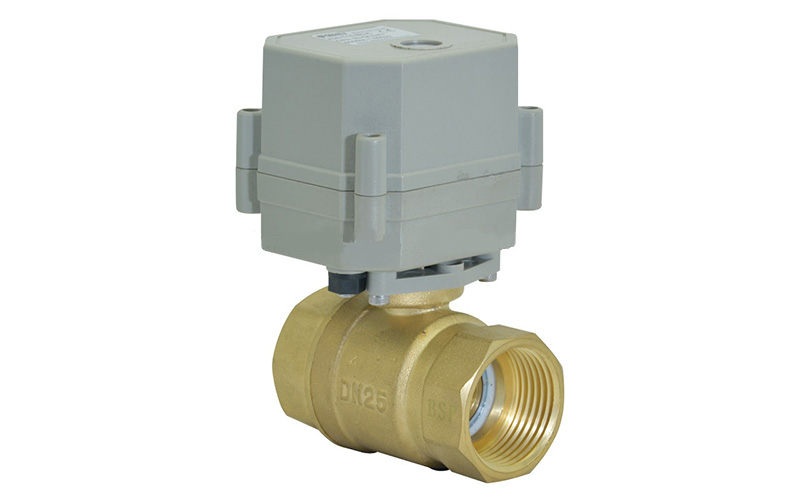

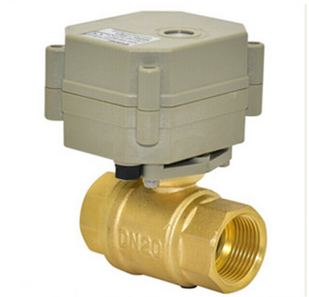

2 Way 1 Inch Electric Flow Control Brass Water Ball Valve
Mini size and perform reliably for small equipment.Easy to install.All metal gear.Long life time —70000-100000 circles.Floating seal structure, good sealing,protection class IP67.Low working current, suitable for battery supply set.Manual override is safe and convenient.

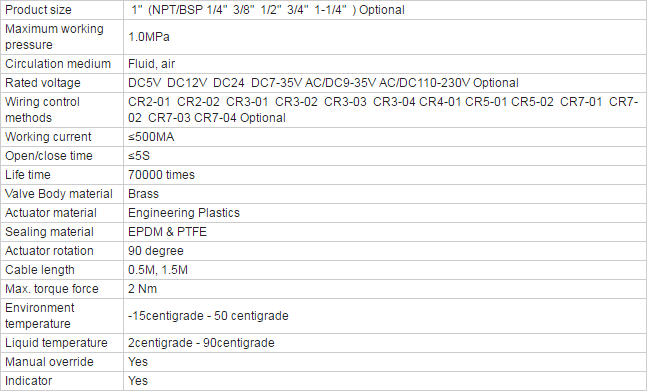

| Quick Details | |
| Standard or Nonstandard: | Standard |
| Structure: | Shutoff |
| Pressure: | Medium Pressure |
| Power: | electric power |
| Material: | Brass |
| Temperature of Media: | Normal Temperature |
| Media: | Water |
| Port Size: | 1" |
| Place of Origin: | China (Mainland) |
| Model Number: | FH-T25-B2-B |
| Brand Name: | EO |
| Application: | Industrial Usage, Water Industrial Usage, Household Usage |
| Actuator torque: | 2N.M |
| Protection Class: | IP67 |
| Operating current: | less than 80mA |
| actuator control: | electric actuator on off water ball valve |
| Sample service: | yes |
| OEM Service: | yes |
| Body material: | Brass, Nickel plated Brass, 30 |
Product Characteristics:
1.Mini size and perform reliably for small equipment
2.Easy to install
3.All metal gear
4.Long life time —70000-100000 circles
5.Floating seal structure, good sealing,protection class IP67
6.Low working current, suitable for battery supply set
7.Manual override is safe and convenient
8.Passed CE certification and NSF61-G certification
Suitable conditions:
1. IC card water meters, heat energy meters, solar instrument.
2. The central air conditioning fan coil, fire sprinkler
3. Water saving irrigation, automatic control system, industrial mini automatic control equipment.
4. Agriculture Irrigation equipment
5. Drinking water equipment, Water heater, washing machine, AHW etc.
