Hydraulic Pressure Relief Diaphragm Electric Pneumatic Solenoid Valve

Hydraulic Pressure Relief Diaphragm Electric Pneumatic Solenoid Valve

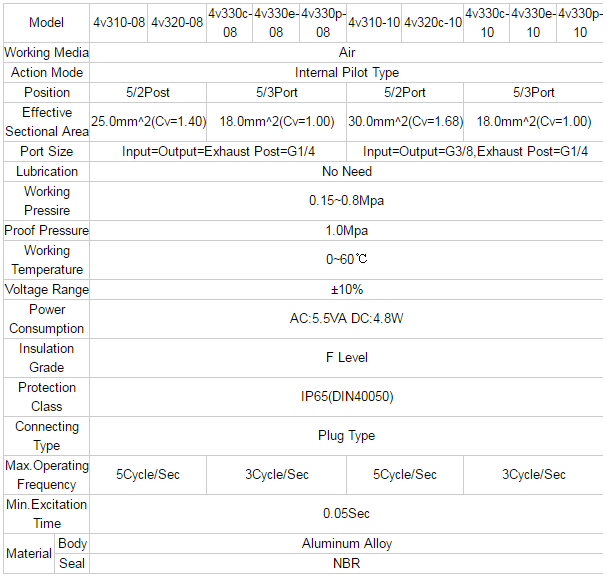

Hydraulic Pressure Relief Diaphragm Electric Pneumatic Solenoid Valve;Connecting Type:Plug Type,Protection Class:IP65(DIN40050),Insulation Grade:F Level,Power Consumption:AC:5.5VA DC:4.8W.

Send Inquiry


Quick Details
Standard or Nonstandard:Standard
Structure:Other
Pressure:Medium Pressure
Power:Solenoid
Material:Aluminum Alloy
Temperature of Media:Medium Temperature
Media:Air
Port Size:other
Place of Origin:China (Mainland)

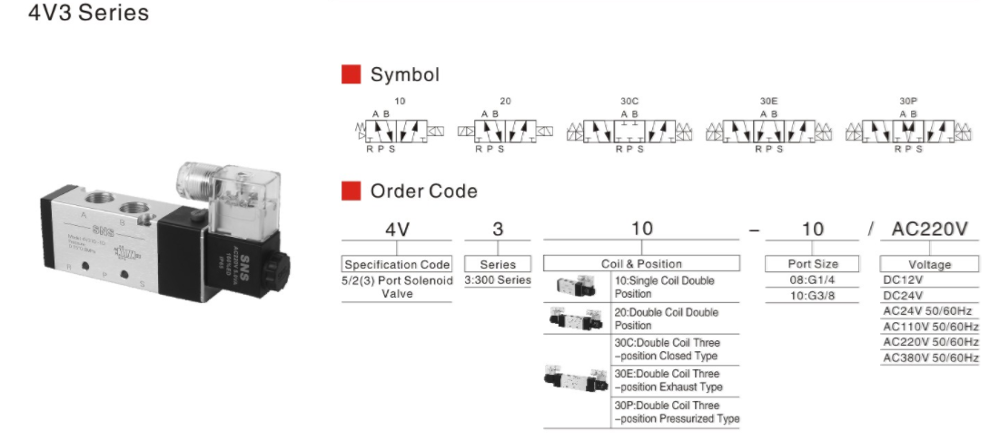

Model Number:4V310-10 DC24V
Brand Name:EO
Application:Other
Certification:ISO9001,ROHS
Min.Excitation Time:0.05Sec
Connecting Type:Plug Type
Protection Class:IP65(DIN40050)
Insulation Grade:F Level
Power Consumption:AC:5.5VA DC:4.8W
Voltage Range:±10%
Lubrication:No Need
Working Pressire:0.15~0.8Mpa
